PDKJ Laser Welding Machine

▷ Industry: New Energy Storage Industry
▷ Welding Application: Aluminum Battery Base Plates & Battery Enclosures

In recent years, with the rapid growth of the new energy vehicle (NEV) and energy storage industries, the demand for manufacturing aluminum alloy battery enclosures, battery base plates, and battery trays has continued to increase. As a critical manufacturing process, welding directly affects product strength, sealing performance, production efficiency, and manufacturing costs.

Recently, a PDKJ Air-Cooled Handheld Laser Welding Machine was successfully installed, commissioned, and officially delivered to a local customer's production facility, providing stable and efficient welding support for the manufacturing of new energy products.

Ⅰ Project Background

Customer Profile

The customer specializes in the R&D and manufacturing of structural battery components and thermal management parts for the new energy industry. Their products are widely used in:

• New Energy Vehicles (NEVs)

• Energy Storage Systems

• Battery Pack Manufacturing

The purchased laser welding machine is primarily used for:

• Aluminum alloy battery base plate welding

• Aluminum battery tray welding

• Battery enclosure structural welding

• Aluminum sheet metal component assembly

As customer orders continued to increase, they required higher welding efficiency while maintaining consistent weld quality for mass production.

Ⅱ Customer Challenges

During production, the customer identified several key requirements.

1. Stable Aluminum Welding Quality

Aluminum features high thermal conductivity and high laser reflectivity. Traditional welding methods often result in inconsistent weld formation, excessive deformation, and unstable weld quality.

A more stable welding process was needed.

2. Higher Production Efficiency

With increasing production volume, the customer wanted to shorten welding cycle times and improve overall productivity.

3. Greater Operational Flexibility

Since multiple product sizes are manufactured, welding positions change frequently.

The customer required equipment that could easily adapt to different workpieces while minimizing fixture adjustment time.

4. Reduced Post-processing

High-quality weld seams would reduce grinding and finishing operations, further improving manufacturing efficiency.

Ⅲ PDKJ Laser Welding Solution

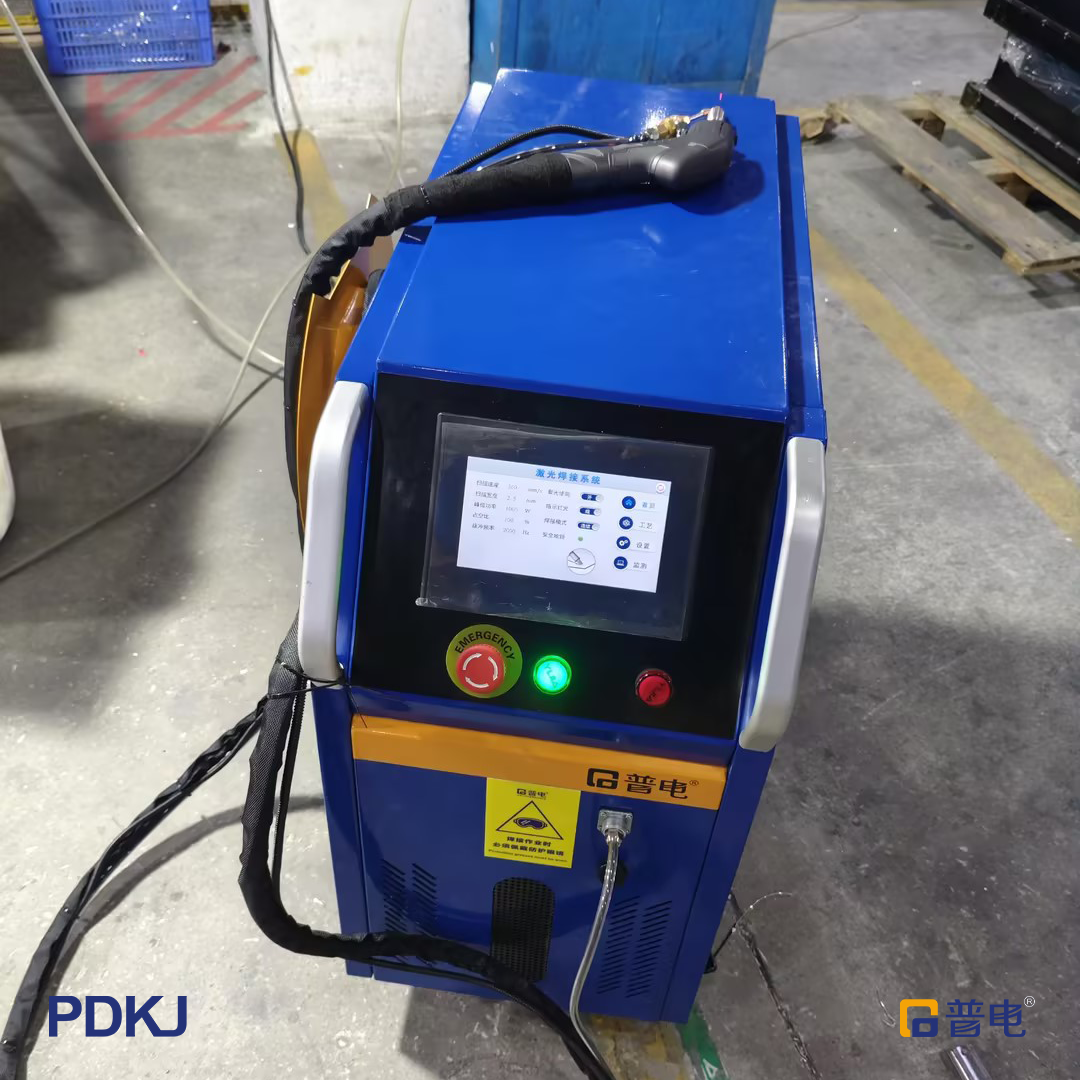

Based on the customer's products and production requirements, PDKJ supplied a 2000W Air-Cooled Handheld Fiber Laser Welding Machine.

Compared with conventional welding methods, the machine offers several significant advantages.

1. Fully Air-Cooled Integrated Design for Maximum Mobility

The machine features an integrated high-efficiency air-cooling system.

No external water chiller, coolant, or antifreeze is required.

It operates directly from a standard 220V industrial power outlet, allowing production to begin within just five minutes.

Its lightweight design enables a single operator to easily move the machine between different workstations, making it ideal for:

• Battery trays

• Battery enclosures

• Narrow internal weld seams

• Shared multi-station production

2. Flexible Handheld Welding Gun for Complex Welds

The ergonomic handheld welding gun allows operators to weld:

• Battery tray corners

• Interior enclosure joints

• Curved aluminum structures

• Complex sheet metal assemblies

without repeatedly repositioning large workpieces or designing complicated fixtures.

Compared with conventional TIG welding, welding speed can increase by 2–3 times.

The machine can also complement friction stir welding production lines by performing localized repair welding and welding irregular edge joints.

3. Intelligent Welding Parameter Library

The touchscreen controller includes optimized welding parameters for:

• Aluminum Alloy

• Stainless Steel

• Carbon Steel

• Galvanized Steel

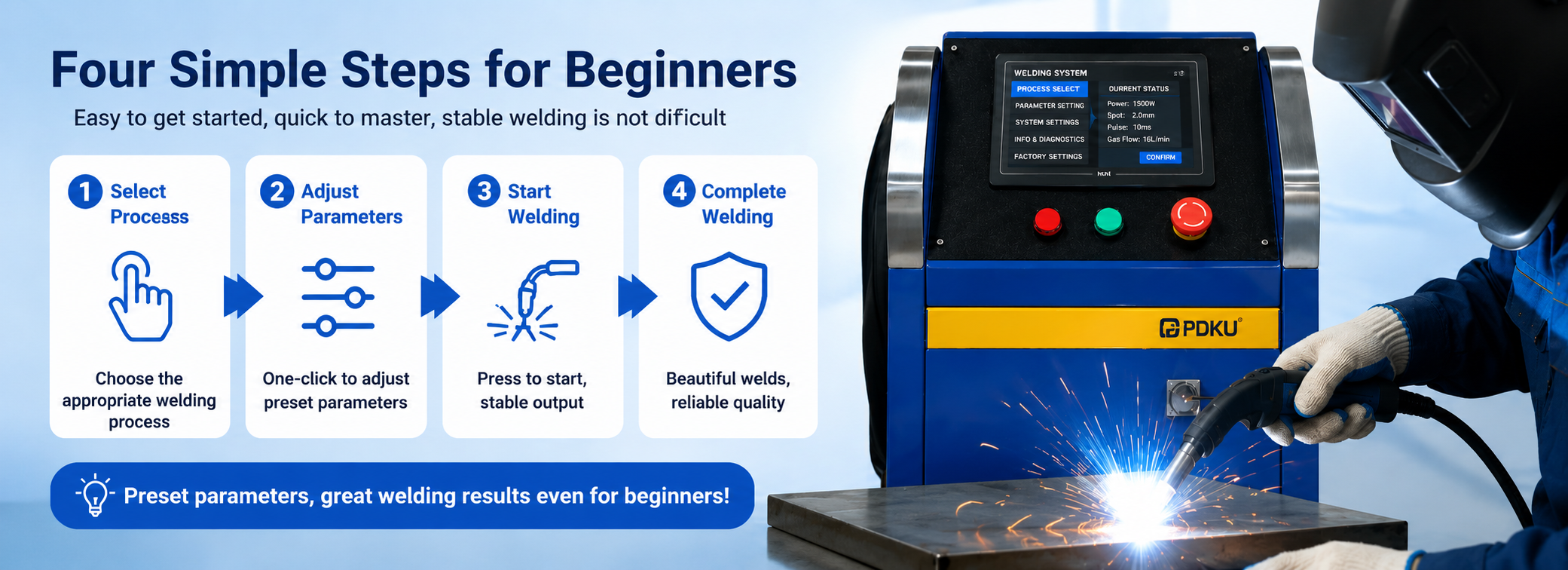

Operators can simply select the required material without repeatedly adjusting welding parameters.

After only a short training period, ordinary workers can independently operate the machine, reducing dependence on experienced TIG welders and lowering labor costs.

4. One Machine for Multiple Materials

The machine can weld:

• Aluminum battery trays

• Energy storage enclosures

• Stainless steel cabinets

• Carbon steel furniture frames

This versatility allows manufacturers to efficiently handle multiple product types and small-batch production while improving equipment utilization.

The machine also incorporates multiple laser safety protection systems and supports continuous 8-hour industrial production with excellent reliability and minimal downtime.

Ⅳ Production Results

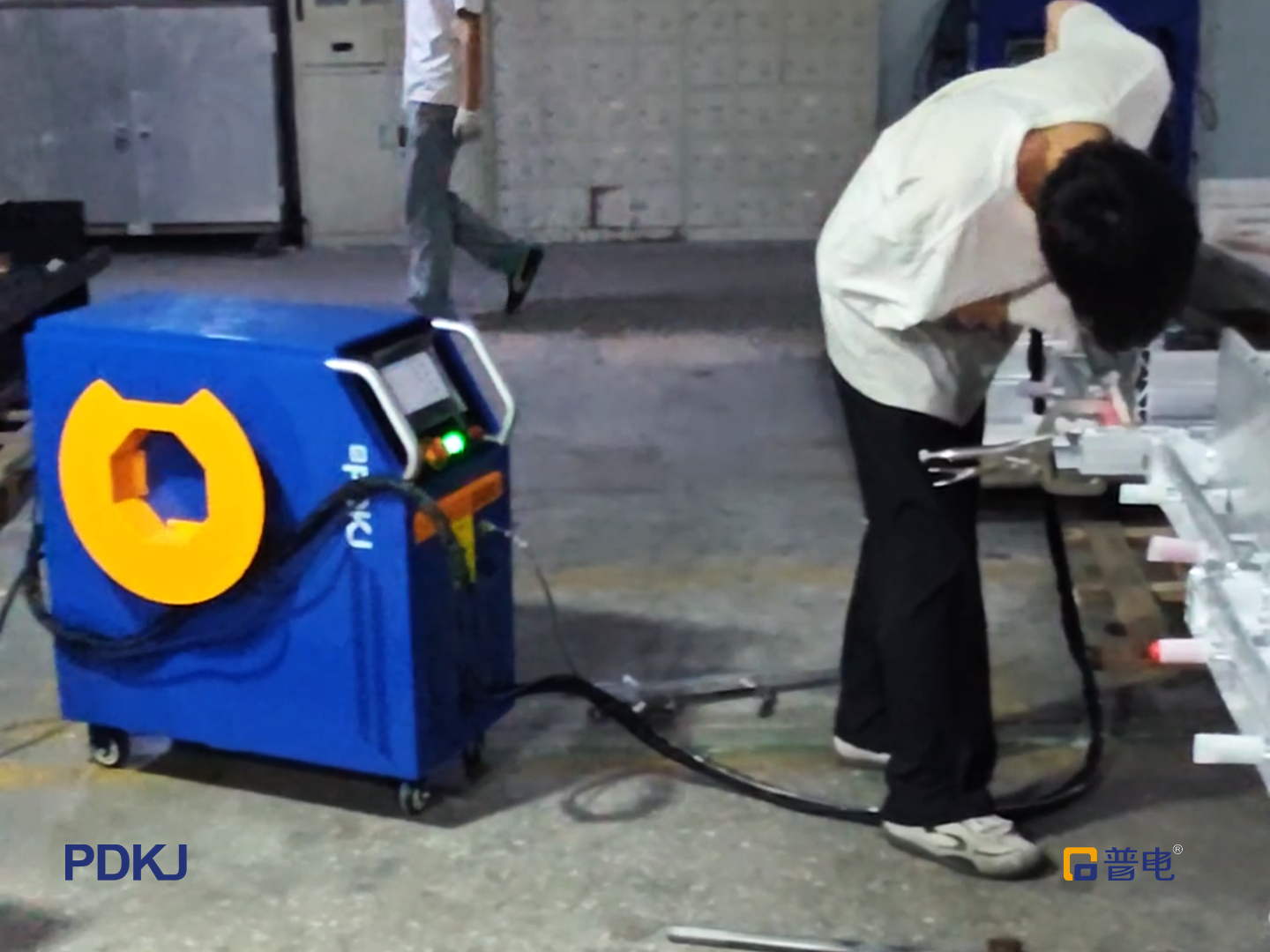

The PDKJ 2000W Air-Cooled Handheld Laser Welding Machine has now been fully installed and is operating reliably in the customer's factory.

For aluminum battery trays, heat sinks, and liquid cooling plate manufacturing, the equipment has delivered measurable improvements:

✅ Reduced grinding and finishing operations, lowering labor and consumable costs.

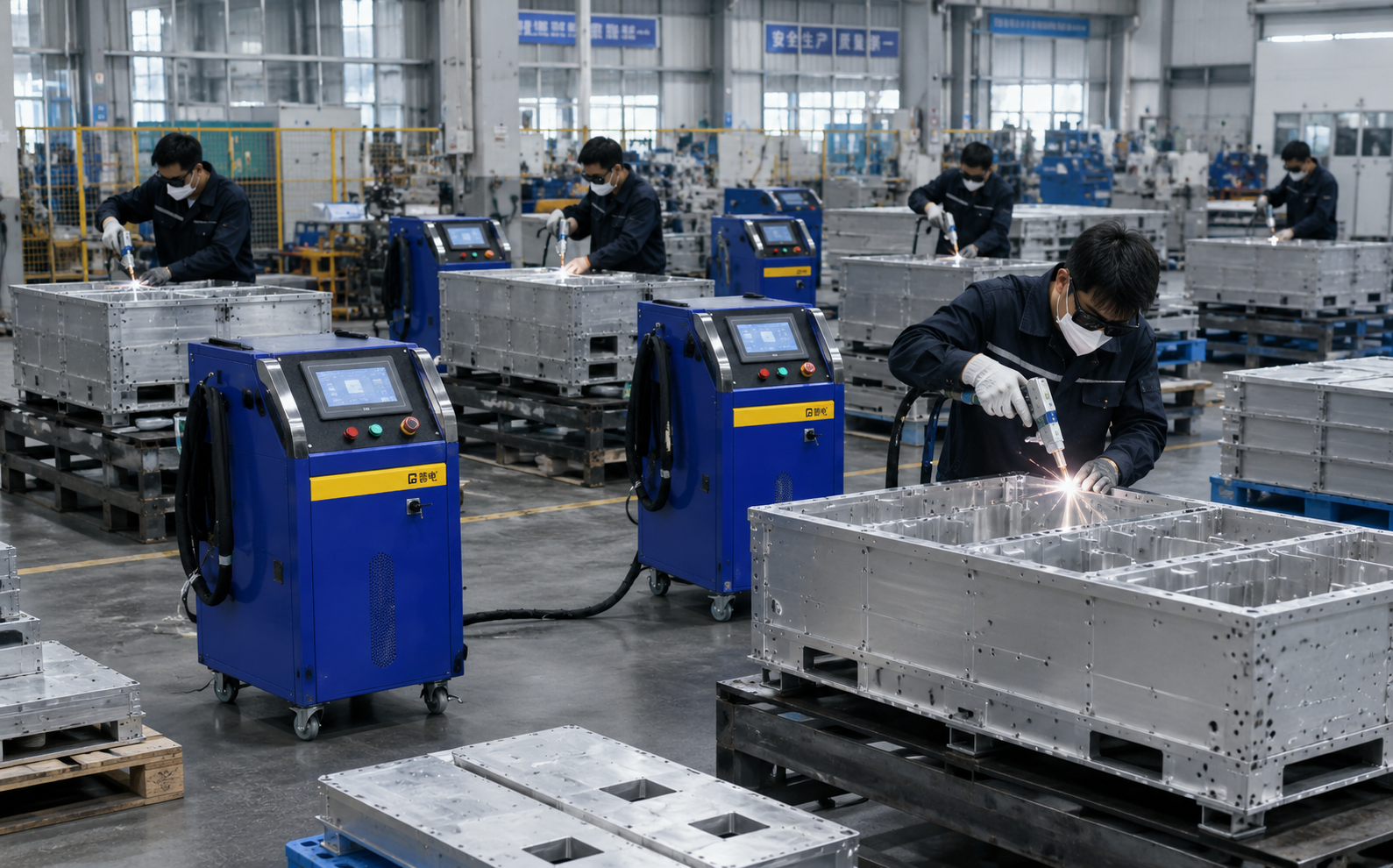

✅ Portable equipment shared across multiple workstations, improving factory space utilization without adding dedicated welding stations.

✅ Simple operation allows new employees to become productive quickly, reducing dependence on skilled welders and lowering labor costs.

✅ One machine supports both new energy aluminum components and general sheet metal fabrication, increasing equipment utilization while providing greater production flexibility.

PDKJ specializes in the research, development, and manufacturing of handheld laser welding machines.

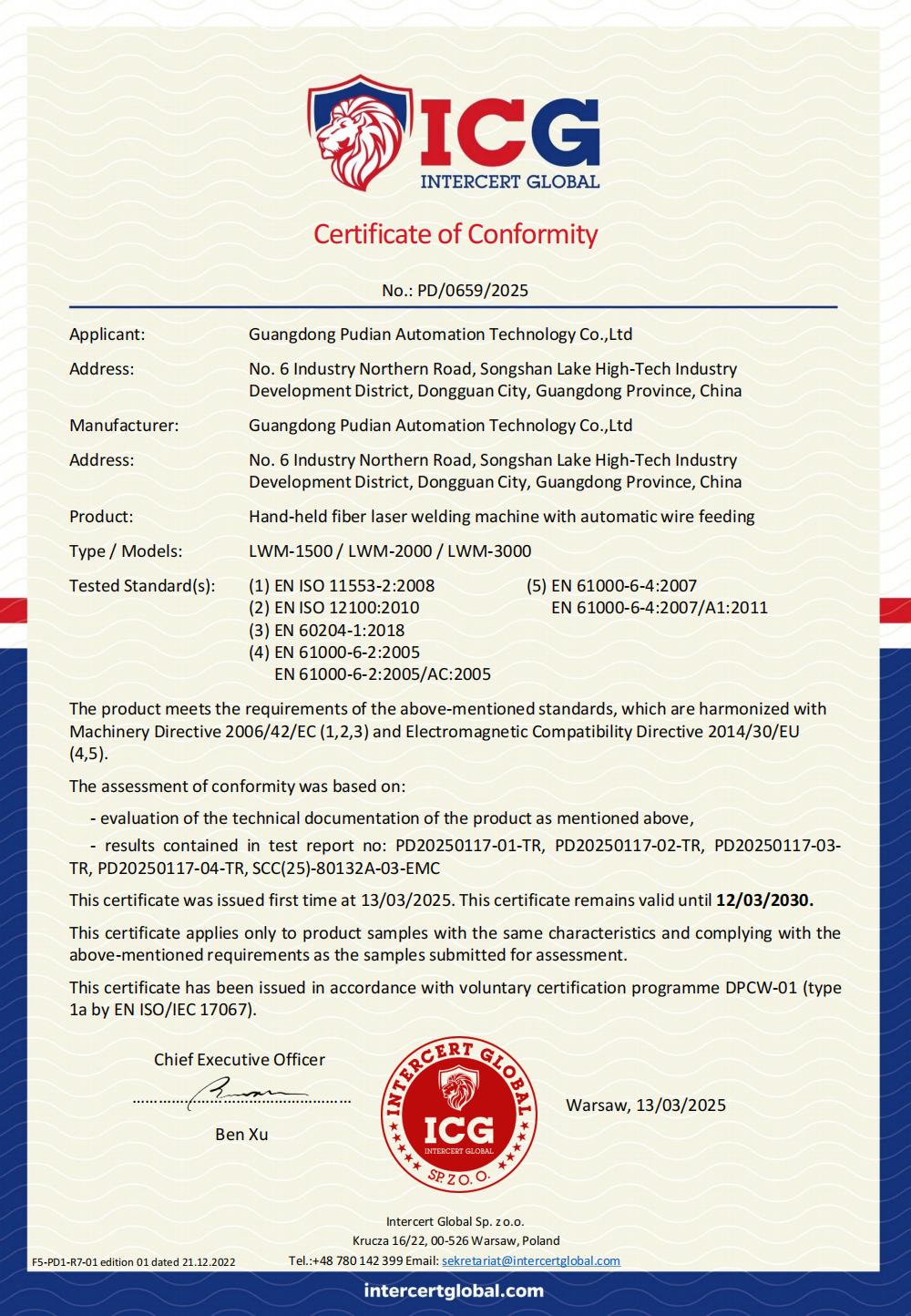

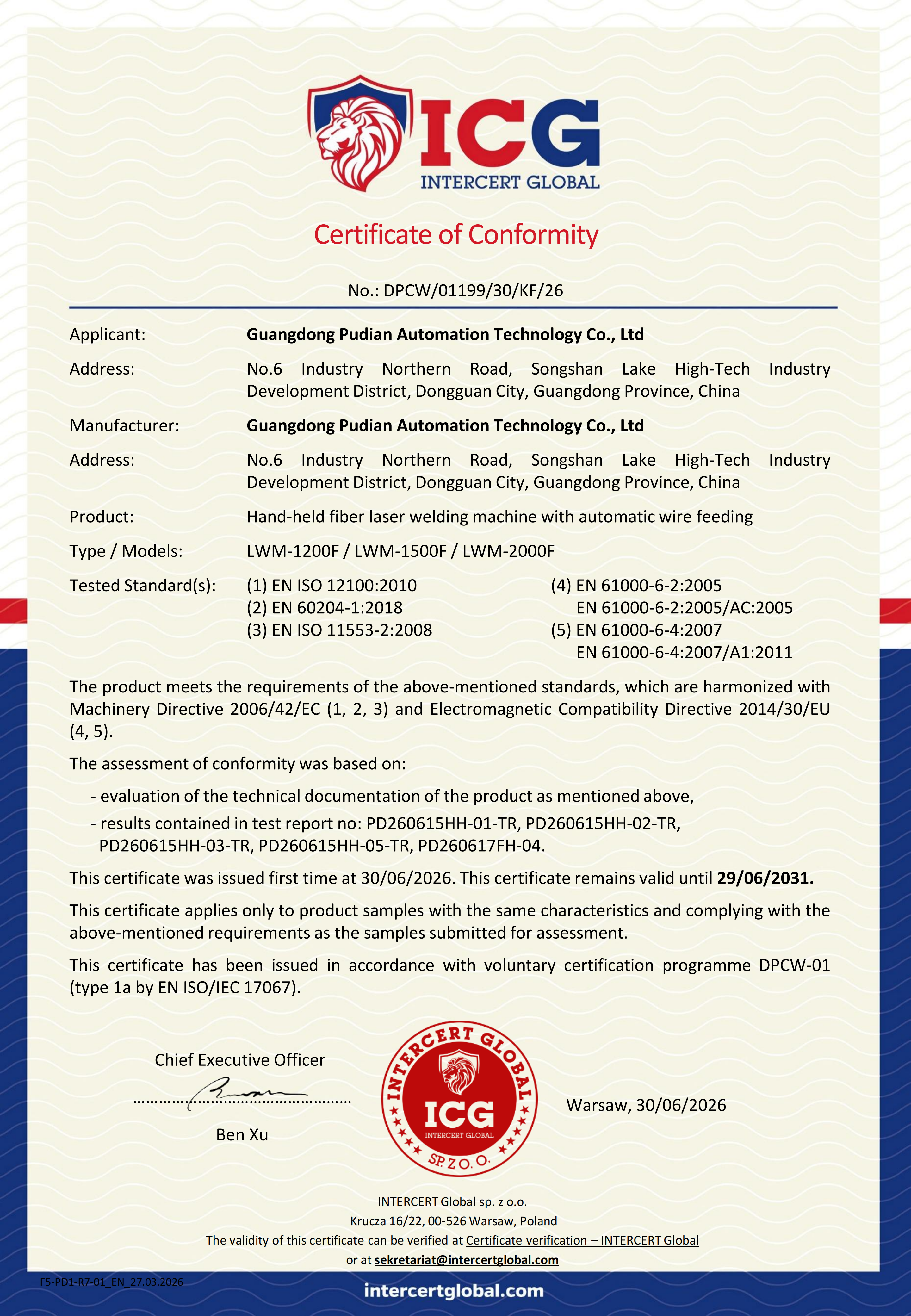

Our air-cooled and water-cooled product range covers power levels from 1200W to 3000W, with all machines certified to CE standards.

We provide customized equipment recommendations based on material type, thickness, and export requirements, along with comprehensive support services including free sample welding, process optimization, on-site installation and operator training, and long-term after-sales maintenance.

Take Action Now

Choose PDKJ and enjoy five key guarantees for worry-free cooperation:

1. Free Sample Testing – Try Before You Buy
   Test your parts first and proceed only when satisfied

2. Factory Direct Supply – Cost Savings
   No middlemen, direct factory pricing

3. Professional Technical Support – Full Guidance
   One-on-one engineering support for welding solutions

4. Full Machine Warranty – Reliable Service
   Original components with comprehensive warranty

5. Customized Solutions – Tailored to Your Needs

↑ Free Sample Testing · Contact Us Now ↑

Professional Services by Guangdong Pudian Automation Technology Co., Ltd.

Guangdong Pudian Automation Technology Co., Ltd.

• 20 years of expertise in resistance welding, laser welding, and automated welding equipment

• Focus on high precision, high stability, and customized solutions

• Full coverage of processes including spot welding, projection welding, seam welding, rolling welding, laser welding, and automated production lines

• One-on-one customized welding solutions based on material, thickness, and production volume

• Serving multiple industries and solving complex welding challenges

Making Welding Simpler, Making Production More Efficient

Whether for new energy battery trays, liquid cooling plates, and aluminum alloy energy storage enclosures, or for the welding of metal components such as sheet metal furniture, hardware racks, stainless steel cabinets, and carbon steel frames, PDKJ provides the appropriate welding equipment and process support tailored to the specific characteristics of the products.

If your company manufactures:

• Welding efficiency fails to keep pace with order growth;

• Difficulty in recruiting welders and continuously rising labor costs;

• Inconsistent welding quality;

• Heavy workload for subsequent grinding and finishing;

• Desire to upgrade to automation or intelligent systems;

Please feel free to contact the PDKJ team:

Simply provide your product drawings, samples, or welding requirements. We will evaluate the best welding solution for your specific operational needs and offer sample testing services to help you find the equipment that best fits your production requirements.

PDKJ Welding Machines: We craft every unit with dedication and create value for our customers through real-world applications.
