PDKJ Dedicated Machine Delivery Case

Recently, Guangdong Pudian Automation Technology Co., Ltd. successfully delivered its "desktop welding machine for complete production lines," a product specifically developed for the electronic components industry.  This customized precision welding solution completely addressed the core needs of the customer in copper wire terminal welding and forming, providing a strong impetus for their production upgrade.

1. Customer and Project Background

The client in this collaboration has been deeply involved in the electronic components field for many years, with a broad business scope.  Their products are widely used in various high-end applications such as communication equipment, automotive electronics, smart terminals, and industrial control. Wire terminals, as critical components of their products, have welding accuracy and stability that directly impact the performance reliability and lifespan of the end products, significantly affecting the user experience in downstream industries.

To meet the stringent requirements of products across multiple fields, the client clearly specified the following core welding requirements:

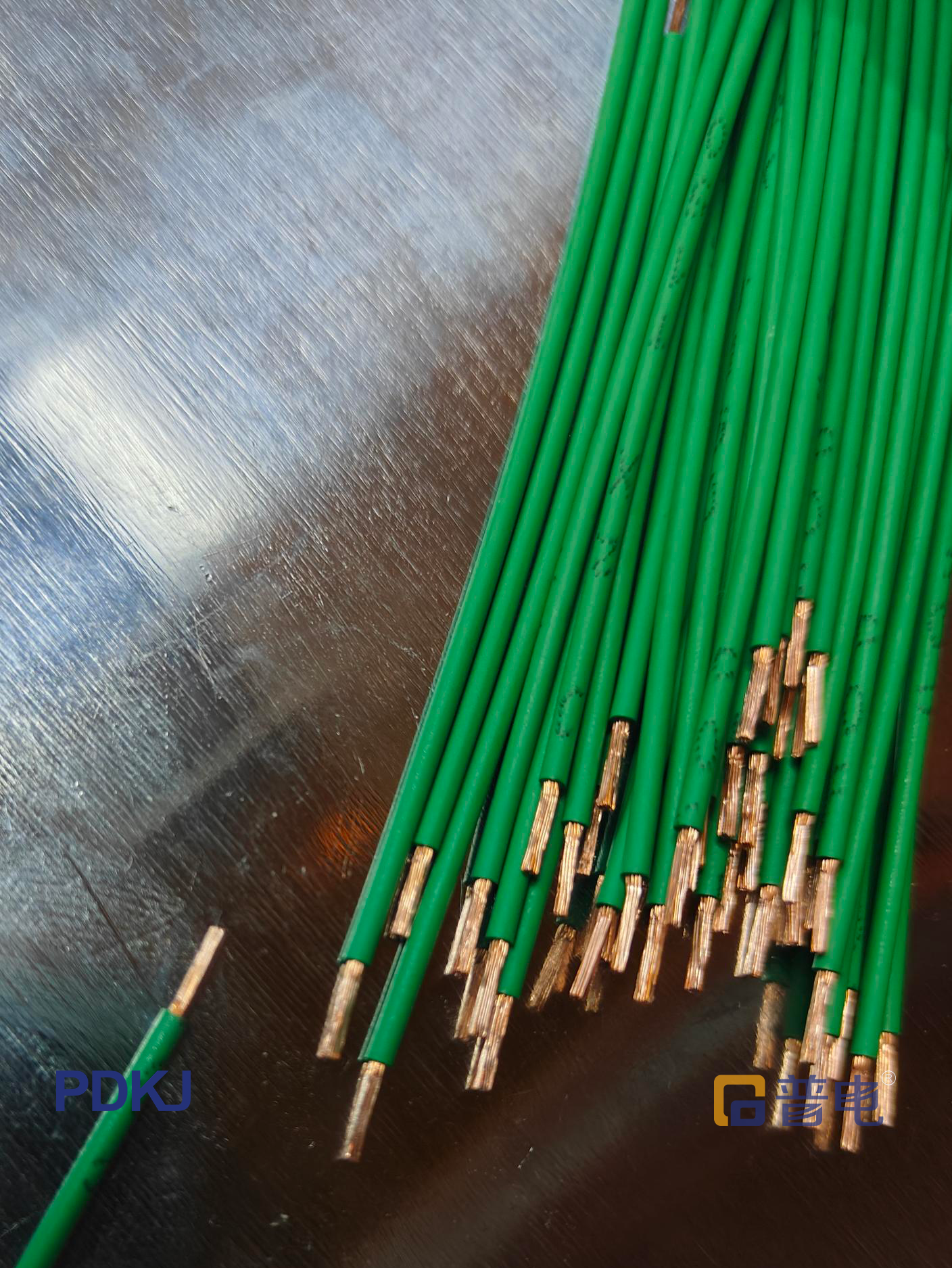

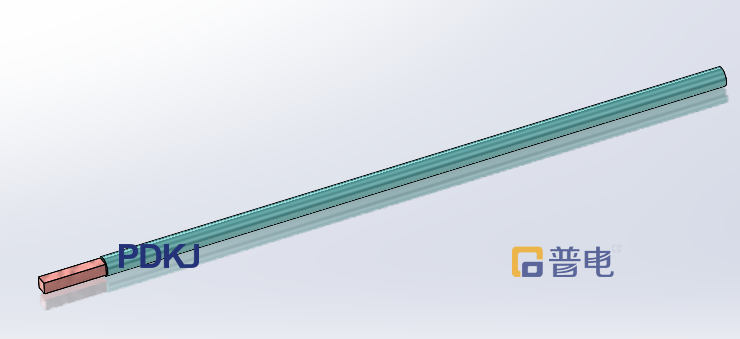

Precisely forming wire terminals with wire diameters of 0.75-6 square millimeters into a square structure, with dimensional tolerances strictly controlled within ±0.15mm;

Ensuring stable pressure and precise positioning during the welding process to avoid welding defects that could affect the safety of the end products;

Requiring a stable and reliable clamping mechanism to ensure consistency and durability of the welded products.

To meet the aforementioned needs, the client urgently required a customized precision welding solution. After evaluating and comparing various options, they ultimately chose to partner with PDKJ, leveraging their customized technical solutions to precisely match their production needs and empower the upgrade of their precision electronic component welding process.

II. Highlights of Customized Welding Equipment

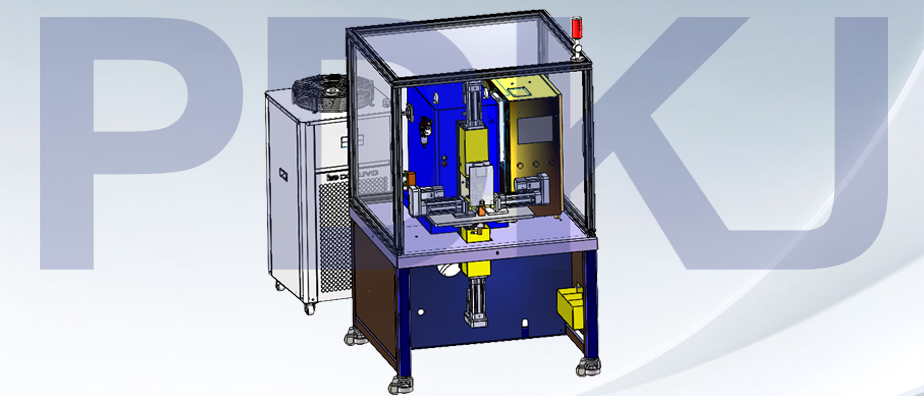

Addressing the client's core requirements, PDKJ's R&D team custom-designed a "complete line desktop welding machine," which, thanks to its numerous innovative designs and cutting-edge technologies, became the "efficiency driver" and "quality assurance" for the client's production line.

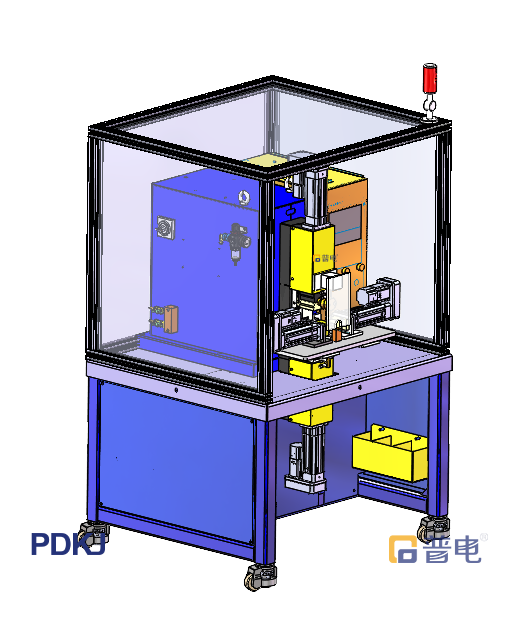

1. Four-sided servo control for ultimate dimensional accuracy: The dedicated machine is equipped with a four-way servo entire-line mechanism and an 80KVA welding transformer.  It uses a displacement mode to precisely control the displacement amount through pulse counting, achieving millimeter-level control of copper wire terminal welding and forming, fully meeting the ±0.15mm tolerance requirements and adapting to welding of all wire diameters from 0.75 to 6 square millimeters.




2. High-efficiency cycle, significantly improved productivity: Optimized motion process design, changeover adjustment takes only 5 minutes, and a single welding cycle (wire feeding - clamping - discharge - part removal) takes no more than 5 seconds. The left and right clamping action time is only 0.1 seconds, and the upper clamping cylinder speed is flexibly adapted according to the wire diameter, improving efficiency by more than 60% compared to traditional equipment, perfectly supporting large-scale mass production.

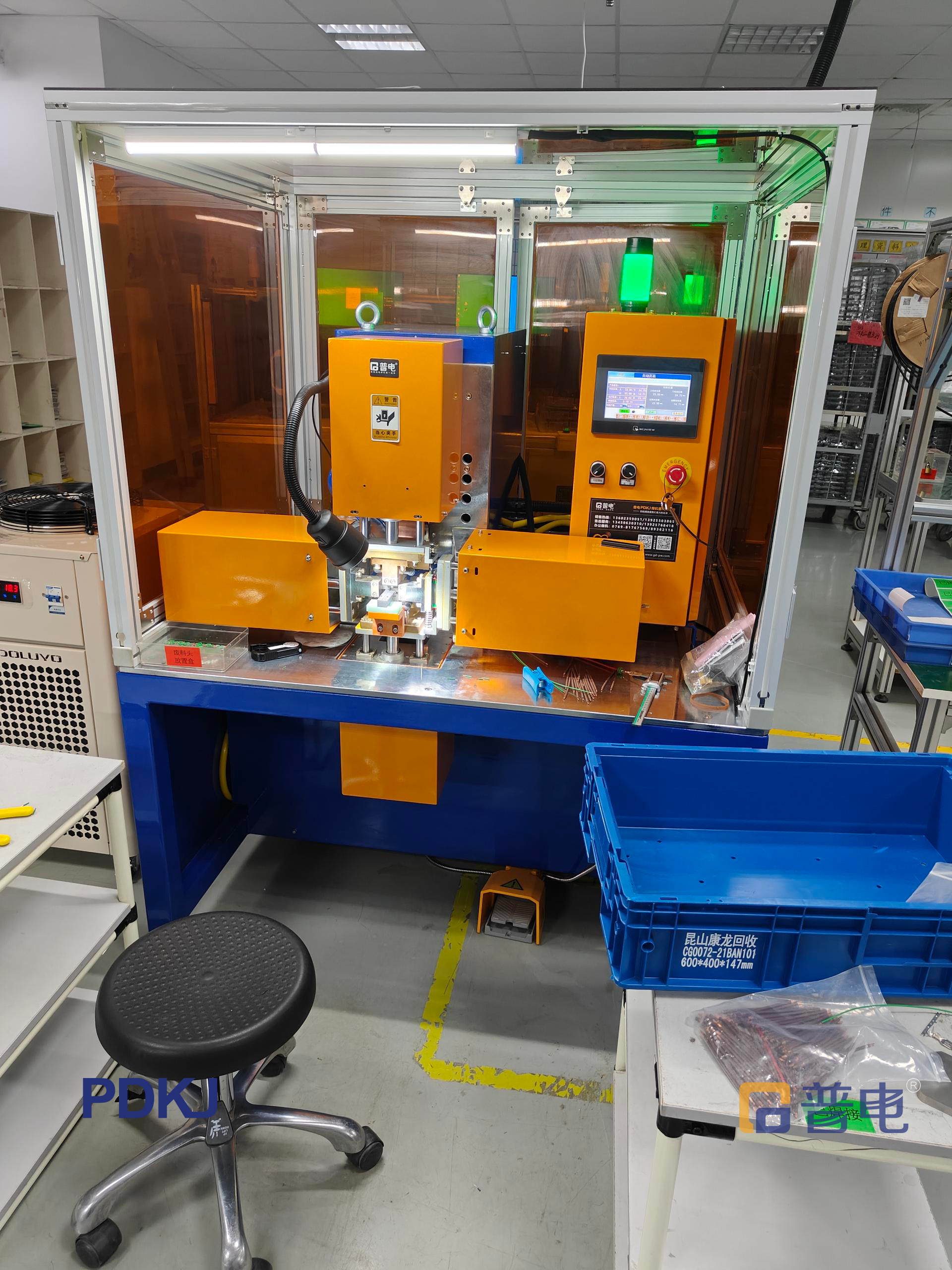

3. Intelligent and efficient, convenient and worry-free operation: Equipped with a visual operation interface, supporting 15/31 sets of welding specification programming and storage. The three-stage heating process (preheating - welding - tempering) can be flexibly customized, and welding current, time, pressure, and other parameters are precisely adjustable. Multiple welding recipes can be accessed with one click, and ordinary employees can easily operate the machine after simple training, significantly lowering the operating threshold.

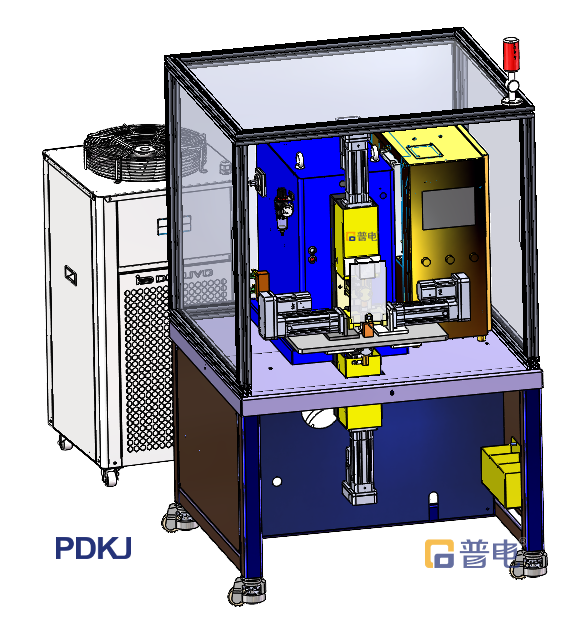

4. Stable and reliable design, reducing maintenance costs: Core components use high-quality materials: the entire line electrodes are made of tungsten alloy, and the left and right clamping blocks are made of insulating material, making them wear-resistant and durable; the equipment has a built-in chiller and a complete water and air circuit system, effectively controlling the working temperature and extending the equipment's service life.

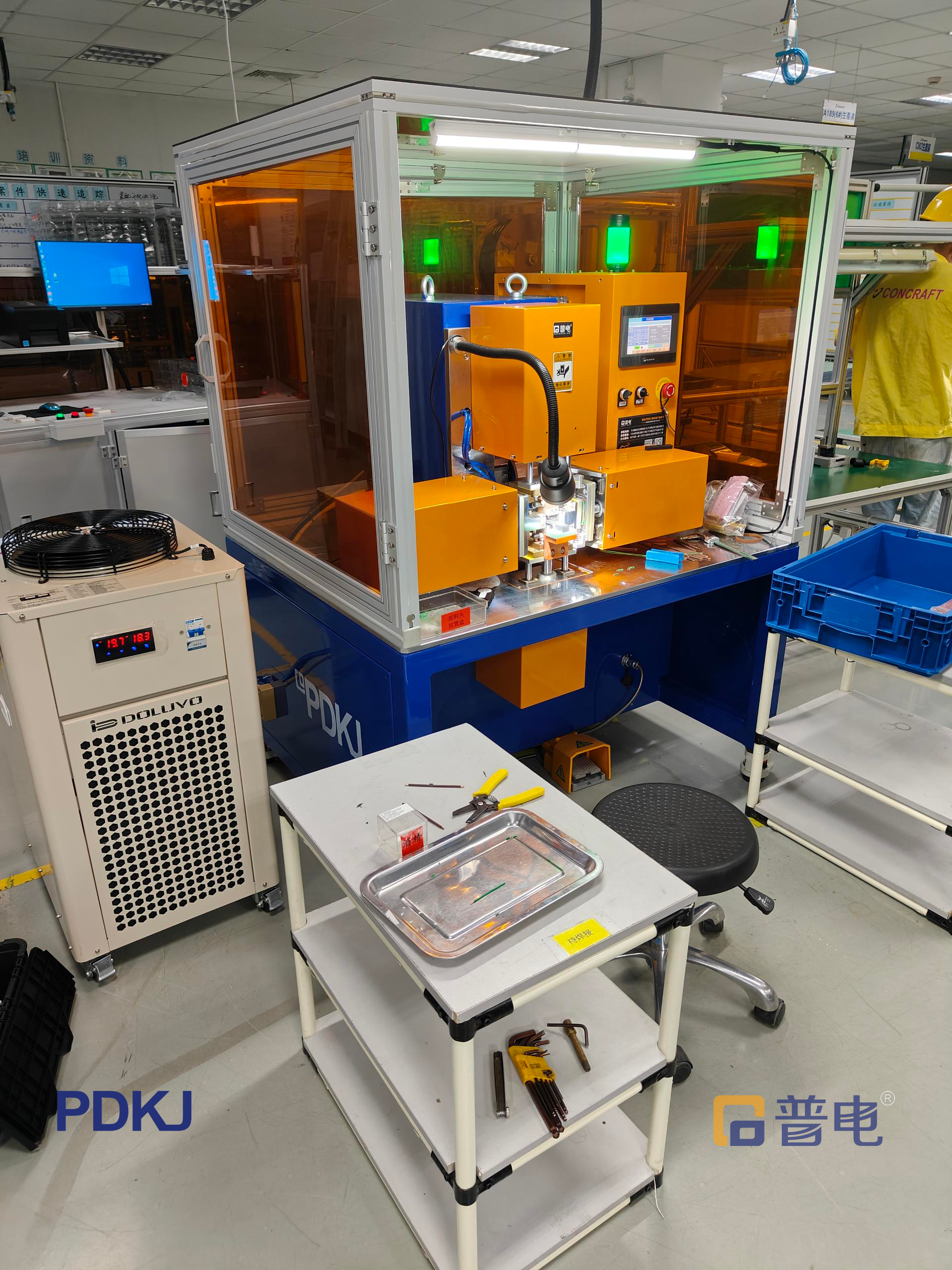

5. Flexible adaptation, reasonable and practical layout: The equipment dimensions are 1200×1200×1700mm, equipped with a movable workbench, and features safety designs such as a transparent protective cover and insulating limit blocks, adapting to multi-scenario production layouts while ensuring operational safety.

III. Project Achievements

The successful implementation of this "integrated desktop welding machine" not only precisely met the customer's core welding needs but also strengthened their market competitiveness in the electronic components industry with its highly consistent and reliable welding process, earning high recognition from downstream end customers and achieving a win-win situation for both parties.

This collaboration also became another successful example of PDKJ's customized welding solutions, laying a solid foundation for further development in the electronic components industry.

From square welding of wire terminals in electronic components to precision metal welding in multiple specifications and scenarios, PDKJ's integrated desktop welding machine breaks through traditional welding limitations with its core advantages of servo precision control, intelligent adaptation, and high efficiency and stability. If you are also facing challenges such as forming accuracy, welding stability, and mass production efficiency, please contact PDKJ! We always uphold the mission of "Make Metal Welding Easy for the World," providing you with professional welding solutions to help your company achieve high-quality and high-efficiency production!
