What are copper electrodes used for?

What are copper electrodes used for? In this article, we explore how the copper electrode powers vital manufacturing processes. You will learn about its applications in welding, EDM, and green energy. This guide explains why this material remains the standard for modern industrial efficiency.

Key Takeaways

● Copper electrodes are essential in Electrical Discharge Machining (EDM) and resistance welding due to their high electrical and thermal conductivity.

● They serve critical roles in the automotive industry, particularly for assembling Electric Vehicle (EV) battery packs and motor components.

● The material is highly valued for its machinability and corrosion resistance, outperforming alternatives like graphite in specific high-precision tasks.

● Choosing between pure copper and alloys like Chromium Zirconium Copper depends on the need for durability versus maximum conductivity.

● Regular maintenance, such as addressing "mushrooming" and oxidation, is necessary to extend the life of a copper electrode and ensure consistent performance.

Primary Industrial Applications of Copper Electrodes

The utility of a copper electrode spans across several heavy-duty and high-precision industries. Because copper can transfer energy with minimal loss, it is the primary choice for tasks requiring intense heat or precise electrical arcs.

Precision Electrical Discharge Machining (EDM)

In the world of tool and die making, EDM is a standard process. Technicians use copper electrodes to "burn" shapes into hardened steel. They prefer copper because it resists the intense thermal shock of the electrical sparks. This allows for the creation of intricate molds and complex geometries that traditional cutting tools cannot achieve.

Resistance Welding Processes

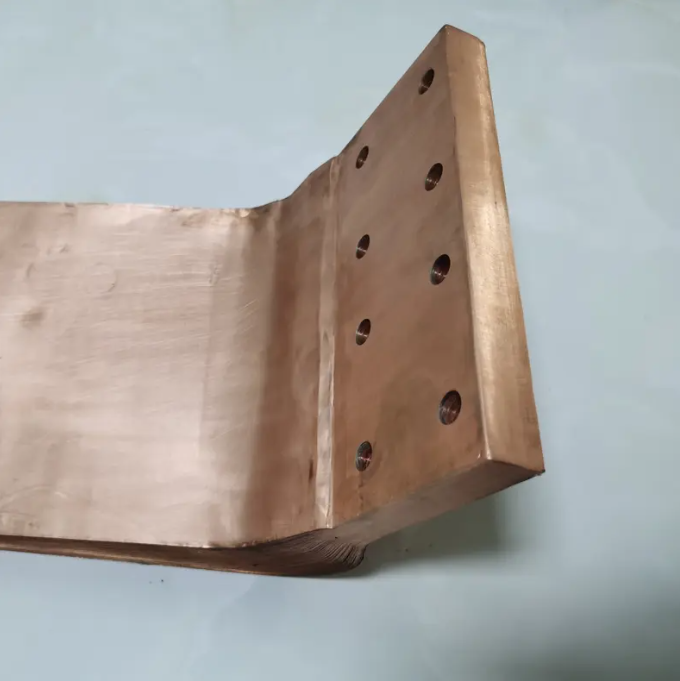

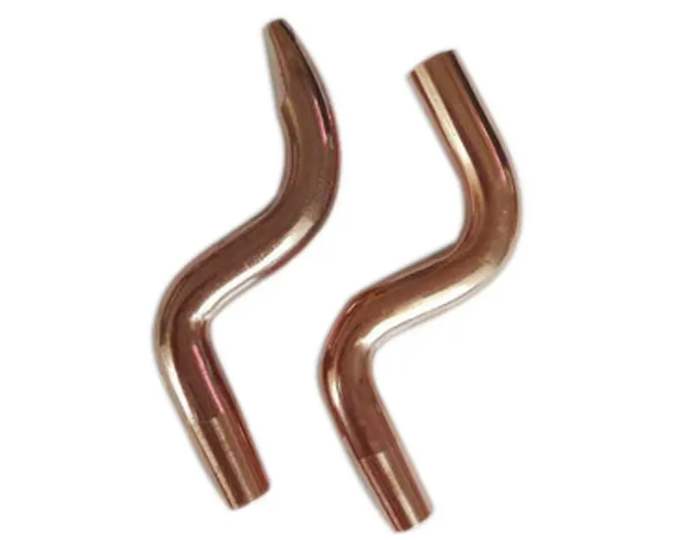

Automotive assembly lines rely heavily on resistance welding. Copper electrodes apply pressure and pass high current through metal sheets to join them. Whether it is spot welding a car door or seam welding an appliance casing, these components provide the necessary force and conductivity to create a permanent bond.

Large-Scale Electrolysis and Electrowinning

Mining and chemical industries use large copper plates as electrodes to refine metals. During electrowinning, copper ions deposit onto the electrode surface, resulting in high-purity metal extraction. They also play a role in producing essential chemicals like chlorine through the electrolysis of brine.

Soil Grounding and Lightning Protection Systems

Safety infrastructure requires reliable pathways for electricity. Copper electrodes are driven deep into the earth to provide a low-resistance path for lightning strikes or circuit faults. They protect buildings and sensitive equipment by safely dissipating massive electrical surges into the ground.

Thin Film Deposition (Sputtering Targets)

High-tech manufacturing uses copper sputtering targets to create conductive layers. In a vacuum chamber, ions strike the copper electrode, knocking atoms off to coat semiconductors or glass. This process is vital for making modern computer chips and energy-efficient windows.

Electroplating and Surface Finishing

To prevent rust or improve appearance, many metal parts receive a copper coating. A copper electrode acts as a sacrificial anode in a plating bath. As current flows, it dissolves and migrates to the workpiece, creating a uniform and durable protective layer.

Battery and Energy Storage Systems

As the world shifts toward renewable energy, copper electrodes have become more important than ever. They function as current collectors in lithium-ion batteries. Without these high-quality foils and plates, the energy density and charging speeds of modern batteries would suffer significantly.

Note: Copper's high melting point compared to other conductive metals makes it safer for high-current welding applications.

Why Material Choice Matters: The Advantages of the Copper Electrode

Choosing the right material impacts both the quality of the final product and the operational cost of the machinery. While other materials exist, copper offers a unique balance of physical properties.

Superior Thermal and Electrical Conductivity

Copper is second only to silver in its ability to conduct electricity. When compared to graphite, a copper electrode provides a much more stable arc and faster heat dissipation. This efficiency reduces energy waste and prevents the electrode from overheating during long production cycles.

High Ductility and Machinability

Manufacturers love copper because they can easily shape it. It can be milled, turned, or ground into highly specific shapes. This ductility is crucial when a project requires a custom electrode for a unique welding joint or a complex mold cavity.

Corrosion Resistance in Aqueous Environments

Many electrochemical processes happen in harsh, liquid environments. Copper naturally resists oxidation in water and many chemical electrolytes. This longevity makes it an ideal choice for underground grounding systems and industrial plating tanks where other metals might fail quickly.

Note: While graphite is lighter, copper electrodes provide a superior surface finish in precision EDM applications.

Copper Electrodes in the Automotive and Aerospace Sectors

High-stakes industries like automotive and aerospace demand materials that can withstand extreme conditions. The copper electrode is a staple in these factories.

Electric Vehicle (EV) Component Manufacturing

The rise of EVs has increased the demand for precision welding. Copper electrodes are used to join battery tabs and busbars. They ensure that the electrical connections within the battery pack are strong and have low resistance, which is critical for vehicle range and safety.

Aerospace Turbine Blade Production

Aerospace engineers use EDM with copper electrodes to drill tiny cooling holes in turbine blades. These blades are made of superalloys that are too hard for drill bits. The precision of the copper electrode allows for holes that help the engine run at higher, more efficient temperatures.

Robotic Assembly Lines

In modern factories, robots perform thousands of welds per day. They use durable copper alloy electrodes designed to withstand constant pressure and heat. These electrodes are engineered for high-speed environments where downtime for maintenance must be kept to a minimum.

Tip: In robotic welding, using internally water-cooled copper electrodes can significantly extend the life of the tip.

Essential Roles in Medical and Laboratory Research

Beyond heavy industry, copper electrodes facilitate breakthroughs in medicine and science. Their ability to interface with biological and chemical systems is invaluable.

Bio-potential Sensing (ECG and EEG)

Medical professionals use copper-based sensors to monitor heart and brain activity. These specialized electrodes pick up the tiny electrical impulses sent by the body. They are often plated with silver-silver chloride to ensure the most accurate reading possible for patient diagnostics.

Electrochemical Sensors and Biosensors

In environmental testing, copper electrodes help detect pollutants. They react with specific chemicals in water samples, allowing scientists to measure levels of nitrates or heavy metals. Their catalytic properties make them excellent tools for developing new types of biosensors.

Laboratory Electrolytic Cells

Students and researchers use copper electrodes to study the fundamental laws of chemistry. They provide a consistent and predictable medium for experiments involving electrolysis, helping to standardize data across different laboratory environments.

Note: Copper electrodes used in medical sensing are often disposable to maintain hygiene and signal clarity.

Comparing Copper Electrodes: Pure Copper vs. Copper Alloys

Not all copper electrodes are the same. Depending on the task, a pure metal or a specialized alloy might be necessary to get the job done right.

Pure Copper (C11000/ETP) for Maximum Conductivity

Electrolytic Tough Pitch (ETP) copper is the most common grade. It offers the highest possible conductivity. This type is best for grounding, electrical busbars, and applications where the electrode does not face extreme mechanical stress.

Tellurium Copper for High-Speed Machining

Adding a small amount of tellurium to copper makes it much easier to cut and shape. While it slightly reduces conductivity, it saves a significant amount of time during the manufacturing of the electrode itself. It is a favorite for shops that need to produce many custom electrodes quickly.

Chromium Zirconium Copper for Durability

In resistance welding, pure copper is often too soft. Adding chromium and zirconium creates an alloy that stays hard even at high temperatures. These electrodes resist "mushrooming"—a common problem where the tip flattens out under pressure—making them ideal for heavy industrial use.

Tip: Use Chromium Zirconium Copper for spot welding galvanized steel to prevent the electrode from sticking to the zinc coating.

Maintenance and Longevity: Maximizing Electrode Efficiency

To get the most value out of a copper electrode, proper care is required. Neglecting maintenance leads to poor quality welds and frequent machine downtime.

Managing Electrode Wear and "Mushrooming"

Over time, the heat and pressure of welding cause the electrode tip to deform. This is called mushrooming. Operators use "tip dressers" to shave the electrode back to its original shape. This ensures the current remains concentrated on the correct area for a strong weld.

Preventing Oxidation and Contamination

Copper can develop a layer of oxide when exposed to air and heat. This layer acts as an insulator, reducing efficiency. Storing electrodes in a dry environment and cleaning the contact surfaces regularly ensures that they maintain a strong electrical connection.

Recycling and Sustainability

One of the best features of copper is that it is sustainable. Used and worn-out copper electrodes can be collected and melted down to create new ones. This circular economy helps B2B companies meet their environmental goals while recovering some of the material costs.

Note: Regular inspection of water-cooling lines is essential to prevent internal scale buildup in high-power electrodes.

Key Selection Criteria: Choosing the Right Copper Electrode

Selecting the wrong electrode can ruin a workpiece or damage a machine. Decision-makers should evaluate several technical factors before making a purchase.

Analyzing Current Density and Thermal Loads

Every application has a specific electrical requirement. A copper electrode must be sized correctly to handle the current without melting. Engineers calculate the expected thermal load to determine if the electrode needs active water cooling or if a larger mass of copper is sufficient.

Geometry and Surface Finish Requirements

The shape of the electrode determines the final shape of the part in EDM. If you need a mirror-like finish, you must choose a high-density copper that can be polished. The complexity of the geometry also dictates whether you should use a softer pure copper or a more rigid alloy.

Cost-to-Performance Ratio

While pure copper is cheaper, a more expensive alloy might last five times longer in a welding environment. We recommend looking at the "cost per weld" or "cost per hour" rather than just the initial price of the copper electrode.

Conclusion

Copper electrodes are a cornerstone of modern manufacturing, providing the conductivity and durability needed for everything from automotive assembly to medical diagnostics. Their unique ability to handle high thermal loads while remaining easy to machine makes them a superior choice for professional applications. Whether you are performing precision EDM or high-speed resistance welding, selecting the right grade of copper is essential for operational success.

PDKJ provides high-quality welding solutions and specialized electrode materials designed to optimize your production efficiency. Our products deliver the precision and longevity required in demanding industrial environments, ensuring your team achieves consistent results every time. By choosing the right copper electrode from a trusted partner like PDKJ, you invest in the long-term reliability of your manufacturing infrastructure.

FAQS

Q: What is a copper electrode used for in everyday manufacturing?

A: A copper electrode is primarily used for resistance welding, EDM machining, and as a current collector in batteries to ensure efficient energy transfer.

Q: Why is a copper electrode preferred over graphite for EDM?

A: Many professionals choose a copper electrode for EDM because it provides a superior surface finish and is easier to machine into complex, precise shapes.

Q: How do you maintain a copper electrode to prevent wear?

A: You should regularly perform tip dressing to correct mushrooming and clean the copper electrode surface to remove oxidation that hinders electrical conductivity.

Q: Can a copper electrode be recycled after it wears out?

A: Yes, every copper electrode is 100% recyclable, allowing companies to reclaim material value and support sustainable manufacturing practices.
