Sheet metal fabrication is a cornerstone of modern manufacturing, supporting industries ranging from automotive and aerospace to electronics and construction. Among the various joining methods available, spot welding has proven to be one of the most efficient, reliable, and cost-effective techniques for assembling sheet metal components.
Spot welding machines, designed specifically for this purpose, have become indispensable in factories and workshops worldwide. In this article, we will explore what spot welding machines are, how they work, their benefits, applications, and why investing in a high-quality machine is crucial for any sheet metal fabrication operation.

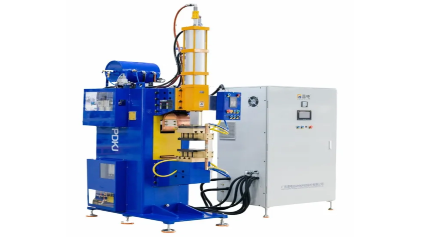

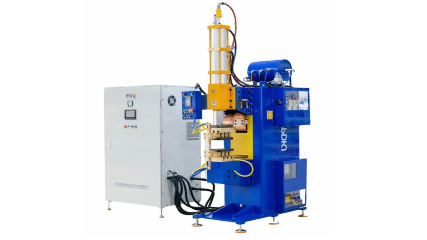

A spot welding machine is a specialized type of resistance welding equipment that joins two or more metal sheets together by applying heat and pressure at localized points, creating strong, permanent welds. Unlike other welding methods, spot welding does not require filler materials such as rods or wire. Instead, it relies on electrical resistance and mechanical force to bond the metals at specific spots.
The key components of a typical spot welding machine include:
Electrodes: Conduct electricity and apply pressure to the sheet metal. They are usually copper or copper-alloy tips for excellent conductivity and durability.
Transformer or Power Supply: Generates the current necessary for welding.
Control System: Regulates welding time, current, and pressure for consistent results.
Frame and Clamping Mechanism: Holds the sheets in place during welding and ensures proper alignment.
By combining heat and pressure in a precise manner, spot welding machines produce strong, uniform joints without compromising the integrity of the surrounding material.
Spot welding is relatively simple in principle but highly effective in practice. The process involves several key steps:
Positioning the Sheets: The metal sheets are placed between two electrodes, ensuring that the areas to be joined are aligned precisely.
Applying Pressure: The electrodes clamp the sheets together with controlled force, ensuring intimate contact.
Electrical Current Application: A high-amperage current flows through the electrodes, generating heat at the contact points due to electrical resistance.
Fusion of Metal: The heat melts the metal at the spot, forming a small, localized nugget that solidifies once the current stops.
Cooling and Release: The electrodes are removed after cooling, leaving a permanent, high-strength weld.
The speed, precision, and repeatability of this process make spot welding ideal for high-volume production environments.
Spot welding machines offer several distinct advantages over other sheet metal joining techniques:
Spot welding is incredibly fast, often completing a single weld in less than a second. This makes it ideal for mass production, reducing cycle times and increasing overall productivity.
Since no additional filler materials are required, and the process uses minimal energy compared to traditional arc welding, spot welding reduces material and operational costs.
Modern spot welding machines feature precise controls for current, pressure, and timing, ensuring consistent weld quality across multiple components. This reliability is critical in industries like automotive manufacturing, where structural integrity is essential.
Spot welding only affects small areas, limiting heat spread and reducing the risk of warping or distortion in thin sheet metals. This preserves the material’s shape and mechanical properties.
Spot welding machines can be easily integrated into automated assembly lines. Robotic spot welders are widely used in automotive plants, allowing continuous, high-volume production with minimal human intervention.
Spot welding can be used on a variety of metals, including steel, stainless steel, and aluminum alloys, making it suitable for many applications.
Spot welding is employed across numerous industries due to its versatility and efficiency:
Automakers rely heavily on spot welding for assembling car bodies, chassis, and interior components. Spot welding provides strong, lightweight, and reliable joints essential for vehicle safety and performance.
Aircraft components require precise, durable joints. Spot welding machines are used to fabricate panels, structural supports, and interior assemblies, offering high repeatability and strength.
Thin sheet metals used in electronic enclosures, battery packs, and electrical panels are commonly joined with spot welding to maintain accuracy and minimize heat-related damage to sensitive components.
From HVAC ducts and metal furniture to kitchen appliances and tool manufacturing, spot welding ensures fast, efficient assembly with clean, reliable joints.
Metal panels for solar frames, wind turbine housings, and battery enclosures often utilize spot welding for strong, precise connections that withstand environmental stresses.
Selecting the right spot welding machine can significantly impact efficiency, product quality, and return on investment. Consider the following factors:
Material Type and Thickness: Ensure the machine can handle the metals and thicknesses you commonly use. Some machines are optimized for thin sheet metals, while others can weld thicker materials.
Welding Current and Power Supply: Choose a machine with adjustable current and power settings to accommodate different materials and production requirements.
Electrode Type and Size: Electrode shape, size, and material affect weld quality and durability. Copper electrodes are standard for most applications.
Automation Needs: For high-volume production, consider robotic or semi-automatic spot welders that can integrate with assembly lines.
Maintenance and Support: Reliable maintenance services and readily available spare parts ensure long-term productivity and minimize downtime.
Budget: Balance initial investment with operational costs, energy consumption, and expected production volume to choose a cost-effective solution.
While spot welding is generally safe when performed with proper equipment, operators should follow safety guidelines:
Wear protective gloves and eye protection to prevent burns and sparks.
Ensure proper ventilation to avoid inhaling fumes.
Regularly inspect electrodes and cables for wear or damage.
Follow the manufacturer’s operational instructions and maintenance schedule.
Adhering to safety standards not only protects personnel but also prolongs the life of the welding machine.
With ongoing technological advancements, spot welding machines are becoming more energy-efficient, precise, and adaptable. Modern machines feature digital controls, data tracking, and integration with Industry 4.0 systems for real-time monitoring and quality assurance.
Robotics and AI-driven automation are also transforming the industry. Robotic spot welding arms now perform thousands of welds per hour with remarkable accuracy, reducing human error and enhancing production scalability.
Additionally, research into advanced electrode materials and cooling techniques is increasing the lifespan of components and reducing downtime for maintenance. These innovations ensure that spot welding will remain an essential process in sheet metal fabrication for years to come.
Spot welding machines are a vital tool in sheet metal fabrication, offering unmatched efficiency, precision, and reliability. Their ability to create strong, consistent welds with minimal material distortion makes them indispensable across industries such as automotive, aerospace, electronics, construction, and renewable energy.
Investing in a high-quality spot welding machine not only improves production efficiency but also ensures the durability and safety of finished products. For manufacturers looking to source reliable, technologically advanced spot welding machines, www.pdkjwelder.com provides a wide range of options tailored to various production needs. Their expertise and commitment to quality make them a trusted partner for sheet metal fabrication solutions.
