Are electrodes made of copper?

While copper is famous for powering our electrical grids, its role in the specialized world of electrodes is far more nuanced than you might think. Can this common red metal handle the extreme demands of industrial manufacturing? In this comprehensive guide, you will discover how copper functions as a premier material for electrodes and when engineers must look for alternatives.

Key Takeaways

● Copper is a dominant material choice for manufacturing electrodes due to its unrivaled electrical and thermal conductivity.

● Industries like EDM and resistance welding rely heavily on copper and its advanced alloys to achieve high precision.

● Pure copper faces limitations like a relatively low melting point and oxidation, which can cause premature degradation.

● Upgrading to alloys like chromium copper or copper tungsten bridges the gap between conductivity and mechanical durability.

● Choosing between copper, graphite, and other materials depends entirely on your specific manufacturing priorities and cost budgets.

The Core Verdict: Why and When Copper is Used for Electrodes

Copper serves as a foundation in electrical manufacturing. Its natural properties make it highly effective for carrying heavy currents. When evaluating materials for electrodes, engineers look closely at how efficiently a metal transfers energy without breaking down.

Exceptional Electrical and Thermal Conductivity

The atomic structure of copper allows electrons to move with minimal resistance. This makes it a gold standard for efficient energy transfer. When you use copper electrodes, you experience very low power loss, which keeps industrial processes highly efficient.

Superior Thermal Dissipation Capabilities

High temperatures can easily ruin industrial tools. Copper draws intense operational heat away from the working zone rapidly. This excellent thermal dissipation prevents the electrodes from melting prematurely or losing their shape during intense cycles.

Excellent Mechanical Machinability

Manufacturers must often shape electrodes into intricate and complex geometries. Copper is highly malleable and easy to machine. You can easily mill, turn, or grind it to meet exact blueprint specifications for precision engineering.

Cost-Effectiveness vs. Precious Metals

Silver and gold actually offer slightly better conductivity than copper. However, their extreme costs make them impractical for large-scale operations. Copper provides an ideal balance of top-tier performance and industrial economic viability.

Spark Erosion Resistance in EDM

Electrical Discharge Machining relies on controlled sparks to cut tough metals. Copper exhibits a unique resilience against wear when subjected to these high-frequency electrical discharges. It holds its edge longer than many other common metals.

Material Compatibility in Resistance Welding

In resistance welding, electrodes must clamp steel sheets tightly and pass a massive current through them. Copper is uniquely suited for this because it does not easily fuse to the steel workpiece. It delivers the energy and releases the part cleanly.

High Recycling and Sustainability Value

Sustainability matters in modern heavy industries. Copper maintains its value and properties through endless recycling loops. Sourcing, using, and reclaiming copper-based electrodes helps factories reduce waste and lower overall lifecycle costs.

Note: While copper is highly conductive, using it in its pure form requires careful monitoring of operating temperatures to prevent early deformation.

Primary Applications of Copper Electrodes Across Industries

You will find copper electrodes utilized across a vast range of manufacturing sectors, each exploiting a different benefit of this versatile metal.

Electrical Discharge Machining (EDM)

Precision tool-and-die makers rely heavily on copper to carve hardened steels with extreme accuracy. It allows them to create deep cavities, plastic injection molds, and complex stamping dies that standard cutting tools cannot handle.

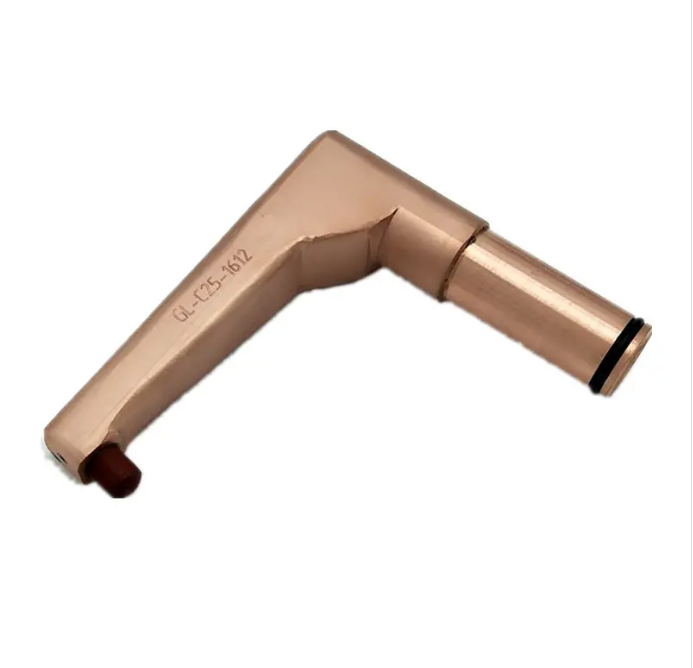

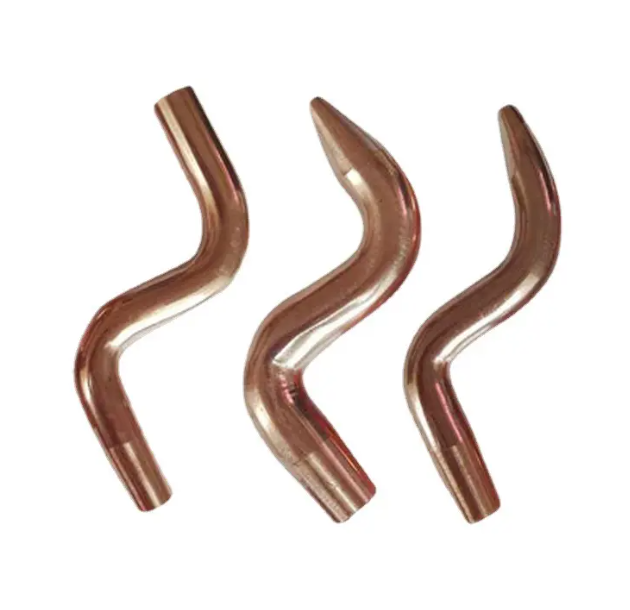

Resistance Spot and Seam Welding

Automotive assembly lines use specialized copper electrodes to fuse sheet metals together. They apply massive mechanical pressure and electrical current simultaneously to create reliable spot welds on vehicle chassis.

Electroplating and Electrowinning Processes

In chemical processing, copper functions as a sacrificial anode or a stable cathode. It dissolves predictably in chemical baths, allowing technicians to purify metals or coat consumer goods with uniform protective layers.

Medical and Physiological Monitoring (ECG/EEG)

Biocompatible variants like silver-copper or copper-chloride combinations appear in certain diagnostic electrodes. They safely capture weak electrical signals from the human body, providing clear data for doctors during critical medical testing.

Tip: For high-volume automotive spot welding, always ensure your water-cooling systems are clear to maximize the lifespan of your copper welding tips.

The Limitations: When Copper Fails as an Electrode Material

Despite its incredible benefits, pure copper is not a magic bullet for every industrial application. It has distinct physical limits.

Low Melting Point Compared to Refractory Metals

Pure copper melts at a relatively low temperature compared to heavy-duty industrial metals. When exposed to the extreme thermal demands of cutting or welding high-melting-point materials, copper electrodes can erode far too quickly.

Susceptibility to Oxidation and Corrosion

High operating temperatures cause copper to react with surrounding oxygen. It forms non-conductive oxide layers on the surface. This dark crust degrades the electrical efficiency over time and requires frequent cleaning.

Lack of Structural Hardness at Elevated Temperatures

Pure copper softens significantly when it gets hot. Under heavy mechanical pressure during automated welding, the tips tend to deform or mushroom. This deformation alters the contact area and ruins weld consistency.

Pure Copper vs. Copper Alloys: Upgrading Electrode Performance

To overcome the weaknesses of pure copper, material scientists mix it with other elements. These advanced alloys bridge the gap between conductivity and physical durability.

Chromium Copper (Cr-Cu) Electrodes

Adding a small amount of chromium increases the hardness and heat resistance of the metal. These electrodes are ideal for high-production spot welding because they resist mushrooming while maintaining high conductivity.

Copper Tungsten (Cu-W) Composites

This composite blends the excellent conductivity of copper with the extreme melting point of tungsten. It creates incredibly tough electrodes for heavy-duty EDM applications where regular copper would melt instantly.

Beryllium Copper (Be-Cu) for High Strength

Utilizing beryllium alloys creates electrodes with maximum mechanical strength and wear resistance. They excel in harsh environments, though factories must follow strict safety handling protocols during their manufacturing due to toxicity risks.

Copper vs. Graphite: The Great EDM Electrode Debate

In the world of Electrical Discharge Machining, choosing between copper and graphite is a classic engineering dilemma. Both materials have loyal followers.

Metal Removal Rates (MRR) and Efficiency

High-density graphite electrodes generally cut through hardened steel much faster than copper. Graphite sublimates directly from a solid to a gas, which allows it to remove metal with greater speed and efficiency.

Surface Finish Quality Capabilities

When you need a mirror-like or ultra-smooth surface finish on a workpiece, copper is still the champion. It produces a finer, more predictable spark gap that eliminates the need for extensive hand-polishing later.

Wear Ratio and Longevity Profile

Graphite handles prolonged electrical stress with very low corner wear. However, copper electrodes are less fragile. They do not chip or crack during handling, making them better for intricate, thin-ribbed electrode designs.

Alternative Materials: What Else Are Electrodes Made Of?

Copper and its close relatives are not the only choices available for industrial operations. Other environments demand completely different materials.

Graphite and Carbon-Based Systems

Graphite dominates modern large-scale industrial arc furnaces. It handles temperatures that would vaporize metals, making it essential for steel production and heavy smelting operations.

Platinum and Titanium in Electrochemistry

When working in highly corrosive chemical environments, inert materials are strictly required. Platinum and titanium survive harsh acids and alkaline baths without degrading or contaminating the chemical solution.

Tungsten and Molybdenum for Extreme Heat

These refractory metals are chosen for TIG welding and plasma cutting. Their incredibly high melting points allow the electrodes to remain intact while focusing a searing plasma arc onto a workpiece.

Best Practices for Maintaining and Extending Copper Electrode Life

Maximizing your investment in tooling requires consistent maintenance and smart operational habits.

Proper Cooling and Fluid Circulation

Dielectric fluids and internal water-cooling channels play a critical role. They prevent thermal stress by carrying away excess heat, which preserves the original shape and hardness of your copper-based tooling.

Regular Dressing and Reshaping Protocols

Automated or manual mechanical dressing removes deformation and oxide layers. Keeping the tips clean and properly shaped restores the original electrode geometry, ensuring uniform energy transfer every time.

Optimizing Electrical Parameters

You can minimize wear by fine-tuning your generator settings. Balancing the current and pulse duration ensures you get maximum cutting or welding efficiency without overloading the thermal capacity of the metal.

Tip: Train operators to check pulse settings regularly, as even a minor over-current can double the wear rate on intricate copper components.

Conclusion

Copper serves as an essential foundation for the modern electrode industry. It delivers unmatched conductivity and excellent machinability for diverse manufacturing tasks. However, heavy industrial demands often require engineers to upgrade to specialized copper alloys or alternative materials to survive extreme heat and corrosion. When selecting production equipment, finding reliable machinery makes all the difference. The industry leader PDKJ provides high-quality resistance welding machines and optimized precision components designed to maximize your factory efficiency. Their advanced systems ensure excellent energy transfer and long-lasting durability for demanding manufacturing environments.

FAQS

Q: Why are electrodes made of copper in resistance welding?

A: Copper is chosen for resistance welding electrodes because its high electrical conductivity prevents the tool itself from overheating and fusing to the steel workpieces.

Q: Can electrodes made of copper be used for welding aluminum?

A: Regular copper electrodes struggle with aluminum because it demands intense heat, which quickly deforms the tips. Specialized copper alloys are required instead.

Q: Do graphite electrodes outperform copper variants?

A: Graphite electrodes cut faster in EDM applications, but copper options deliver a superior, mirror-like surface finish on the final workpiece.

Q: How do you stop copper electrodes from oxidizing?

A: You can protect these electrodes by maintaining constant cooling fluid circulation and using proper electrical settings to prevent excessive heat buildup.
