Custom Welding Equipment • Sheet Metal Fabrication | PDKJ Gantry Dual-Gun Resistance Spot Welder: Patented Technology Empowers North American Clients with Enhanced Mass Production Efficiency
Views: 0 Author: Site Editor Publish Time: 2026-05-08 Origin: Site
▷ Application Industry: Hardware & Sheet Metal Fabrication ▷ Welding Workpiece: Door Panels & Channel Tubes

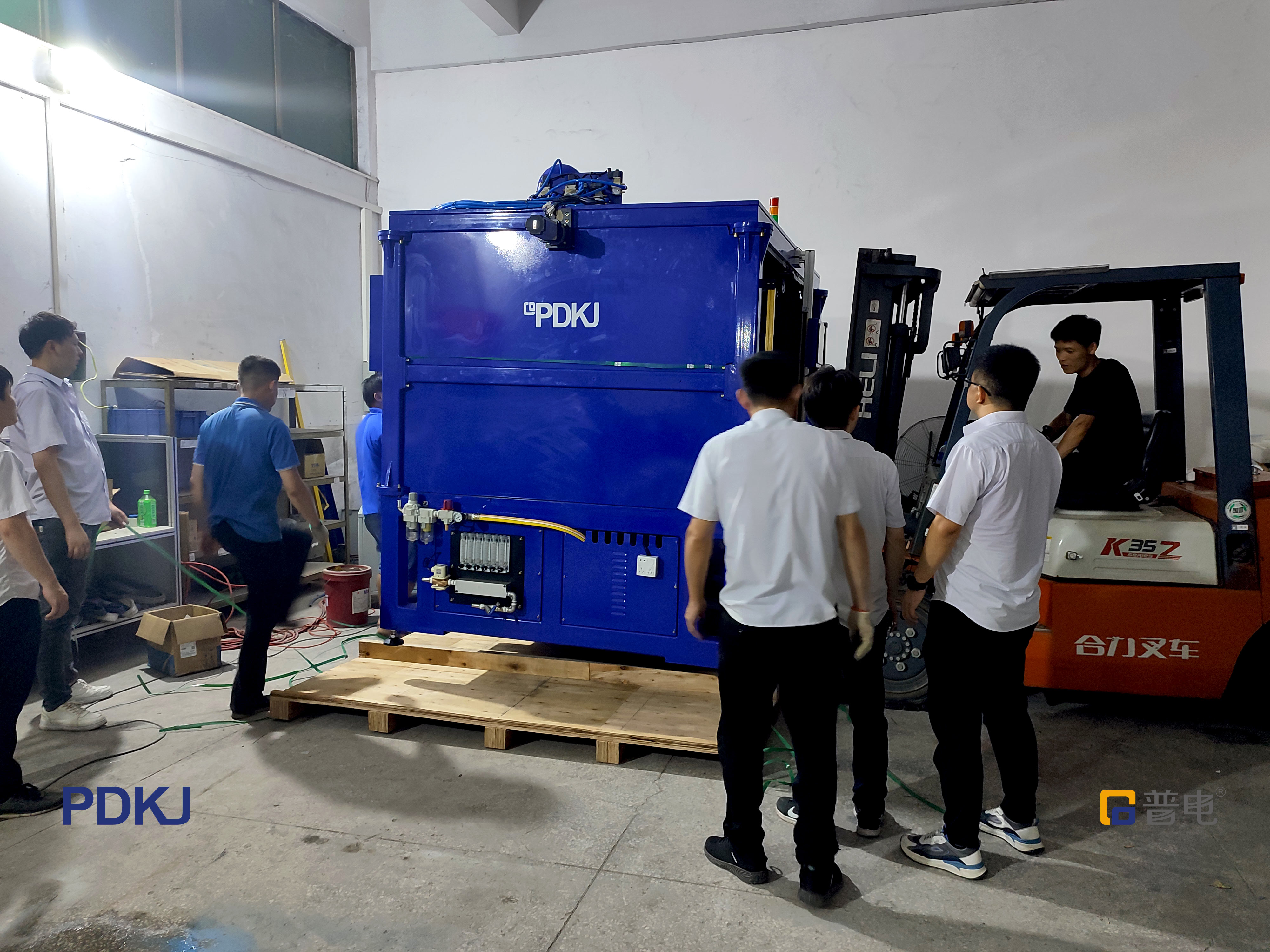

Recently, PDKJ successfully delivered and commissioned a customized gantry dual-gun resistance spot welding machine for an overseas hardware and sheet metal manufacturing enterprise, helping the customer achieve a stable and highly efficient welding upgrade.

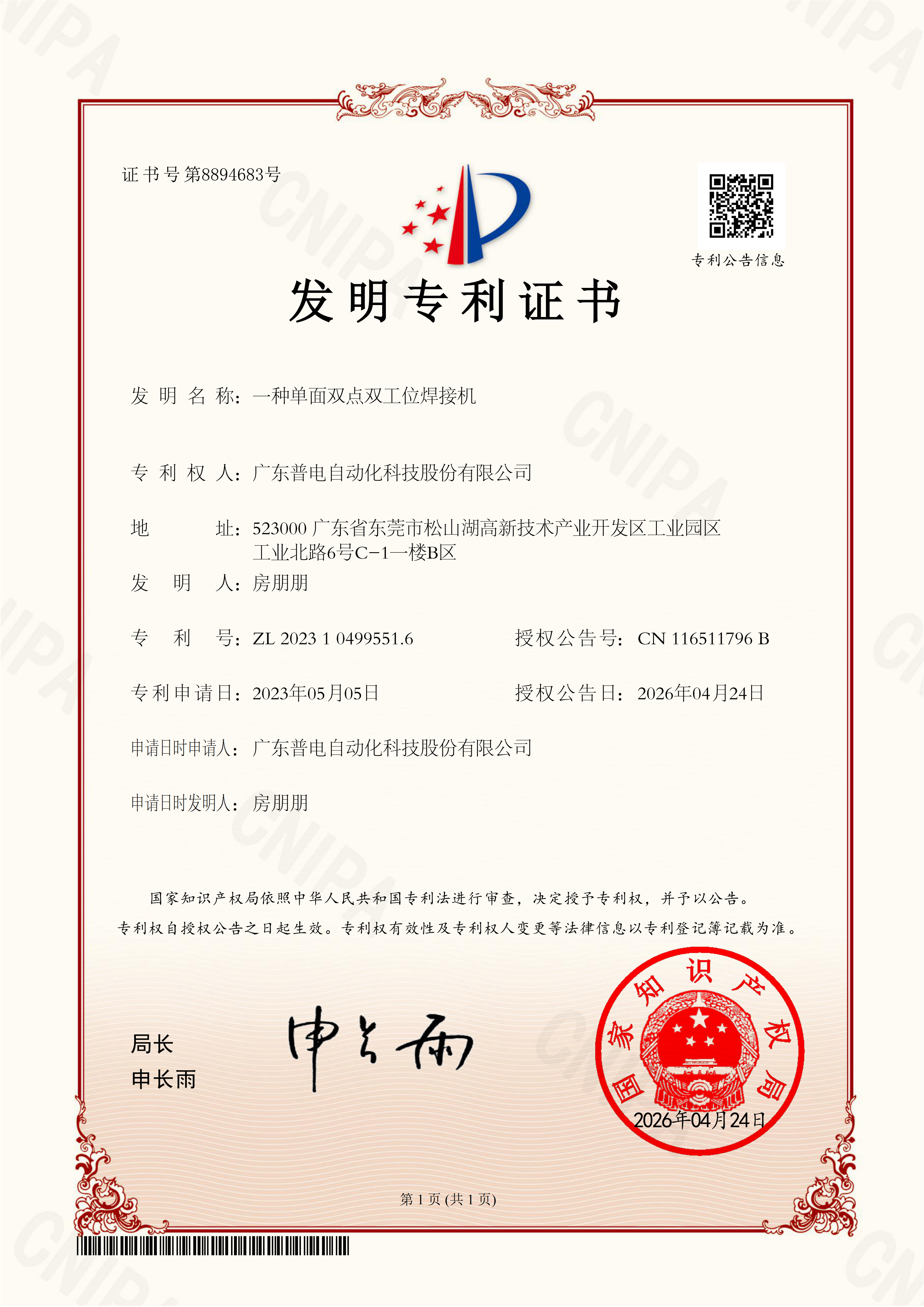

In addition, this equipment has been awarded the invention patent certificate for “A Single-Sided Double-Point Dual-Station Welding Machine,” further validating its reliability and advancement in structural design and process innovation.
Ⅰ Project Background
Customer Profile
A well-known North American hardware and sheet metal manufacturing enterprise specializing in the R&D and production of metal door panels, structural sheet metal parts, and metal products for household and industrial applications. Its products are exported worldwide, with strict requirements for welding precision, strength, consistency, and production efficiency.
Project Origin

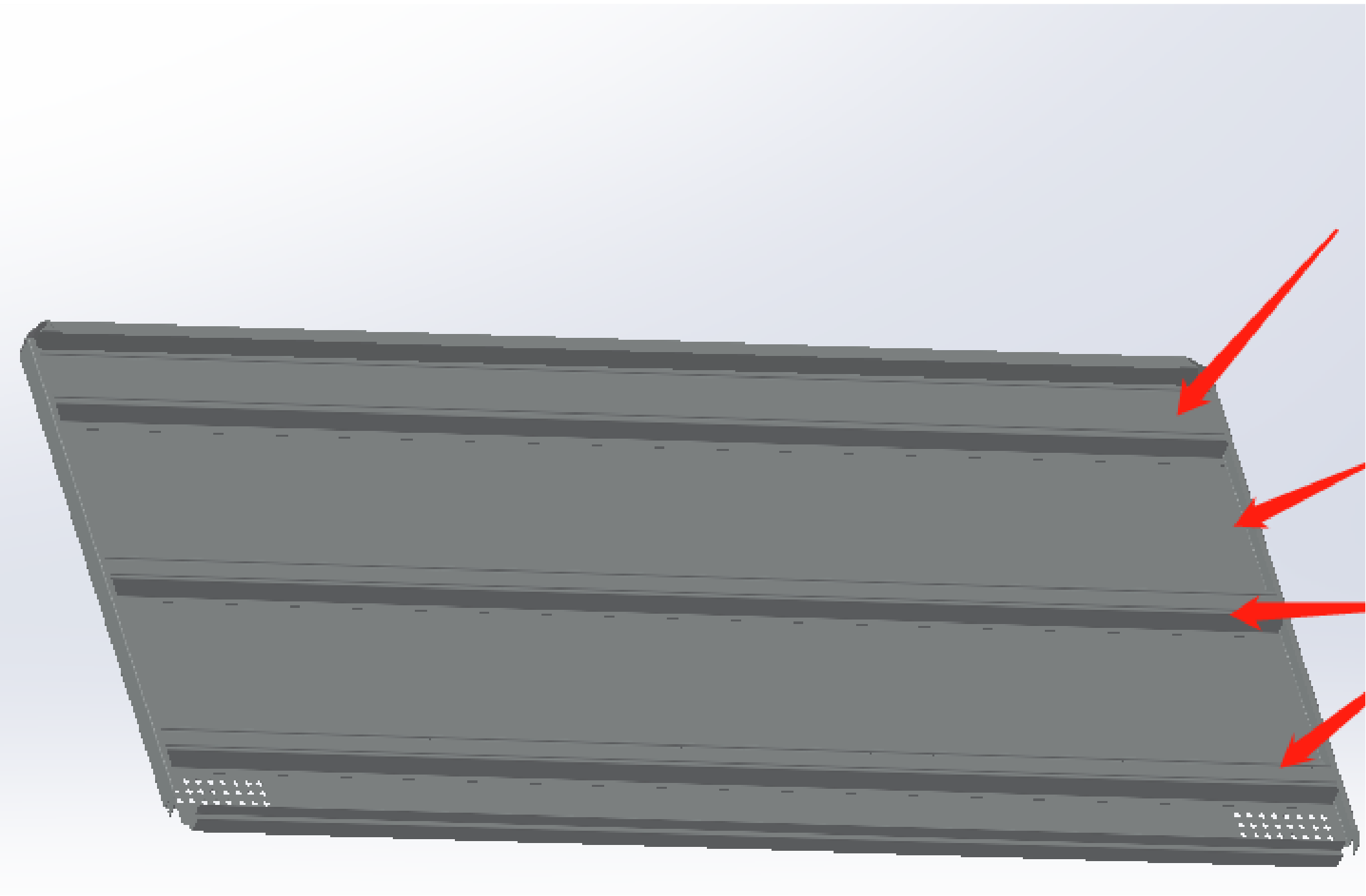

The customer’s core door panel products required stable spot welding between the door panel and three channel tubes. However, the original production method could no longer meet the demands of large-scale, high-quality, and high-efficiency mass production. A customized automated welding solution was urgently needed to upgrade the production line.
Ⅱ Production Challenges & Core Requirements
Before implementing the dedicated welding machine, the customer mainly faced the following problems:
1. Efficiency Bottleneck
Traditional single-station and single-head welding operated at a slow cycle time and required heavy manual intervention, making it difficult to match large-scale production demands.
2. Quality Fluctuation
Manual positioning errors often caused weld offset, incomplete welding, and inconsistent weld strength, resulting in unstable product quality.
3. Poor Consistency
Unstable pressure and current fluctuations led to large variations in weld appearance and strength.
4. High Training Costs
Welding quality relied heavily on operator experience, and new workers required long training periods before becoming proficient.
Customer Core Requirement
A customized automated door panel spot welding machine capable of precise positioning, stable pressure application, efficient continuous welding, easy maintenance, and long-term workshop operation.
Ⅲ Key Advantages of the PDKJ Welding Machine
To meet the customer’s production requirements, PDKJ developed a customized gantry dual-gun resistance spot welding machine specifically designed for the spot welding process of “door panel + three channel tubes.” The core design focuses on efficiency, stability, and ease of operation.
The machine adopts a left-right dual-station alternating operation mode. While one station is welding, the other station can simultaneously perform loading and unloading, creating smoother human-machine coordination and reducing waiting time.
This significantly improves the overall production cycle to 120 seconds, ensuring stable and continuous output.
2. Single-Sided Double-Point Structure for Consistent Weld Quality
Combined with the patented structural design, the machine completes two spot welds in a single action. Weld positions are accurately synchronized, reducing repetitive actions and improving production consistency.
The system uses XY-axis transfer movement combined with Z-axis pressure welding, fully automating positioning and welding discharge.
Button-based controls and clear operating logic allow ordinary workers to operate the machine after simple training, reducing dependence on highly skilled welders.
4. Mature Structure for Easy Workshop Integration
The machine dimensions are 3000 × 2000 × 2400 mm, featuring a compact and practical layout.
It includes:
Control cabinet
XY-axis transfer mechanism
Pressure welding mechanism
Tooling fixtures
Water and air circuit systems
Safety protection systems
The equipment is ready for production immediately after installation.
Ⅳ Continuous Innovation Backed by Invention Patent
The delivered dual-station door panel spot welding machine is built upon the company’s independently developed core technologies.
Recently, it successfully obtained the invention patent certificate for:
Both the core welding process and equipment structural design are protected by independent intellectual property rights.
From requirement analysis, solution design, equipment manufacturing, factory testing, and on-site installation to after-sales maintenance and technical training, PDKJ provides a complete one-stop service process.
With patented technology, reliable equipment quality, and practical on-site support, PDKJ has earned high recognition from overseas customers.
Ⅴ Delivery Results: Stable Production Creates Value
After the equipment was put into operation, the customer reported:
Significantly improved production efficiency
Stable weld point consistency
Simpler operation and easier personnel management
More organized and stable overall production flow
For standardized door panel products, the value of this type of dedicated welding machine lies not only in replacing manual labor, but more importantly in building a stable and reliable production line capability.
Take Action Now
Choose PDKJ and enjoy five key guarantees for worry-free cooperation:
Free Sample Testing – Try Before You Buy Test your parts first and proceed only when satisfied
Factory Direct Supply – Cost Savings No middlemen, direct factory pricing
Professional Technical Support – Full Guidance One-on-one engineering support for welding solutions
Full Machine Warranty – Reliable Service Original components with comprehensive warranty
Customized Solutions – Tailored to Your Needs Flexible solutions for various metal welding applications
