What is laser welder and how does it work?

How Laser Welding Works

Laser weldingutilizes concentrated heat to melt and fuse materials at the joint:

• Process: The laser beam delivers intense, focused energy to a small area, creating a molten pool that solidifies into a strong bond

• Keyhole Effect: At sufficient power levels, the beam vaporizes material to form a "keyhole" - a vapor cavity that enables deeper penetration and stabilizes the weld pool

• Precision Advantage: Minimal heat spread reduces distortion and preserves material properties

Critical Parameters: Wavelength, power, and focus determine penetration depth and weld characteristics

Laser Types for Welding

Laser Type	Characteristics	Applications
C ₂ Lasers	10.6μm wavelength, high power, mirror-based delivery	Thick metal welding and cutting
Fiber Lasers	~1μm wavelength, compact, efficient	Fine, precise welding tasks
Nd:YAG Lasers	Solid-state, near-infrared	Small parts and delicate materials
Diode Lasers	Compact, energy-efficient	Low-power welding and surface treatments

Selection depends on material properties, thickness, and required precision

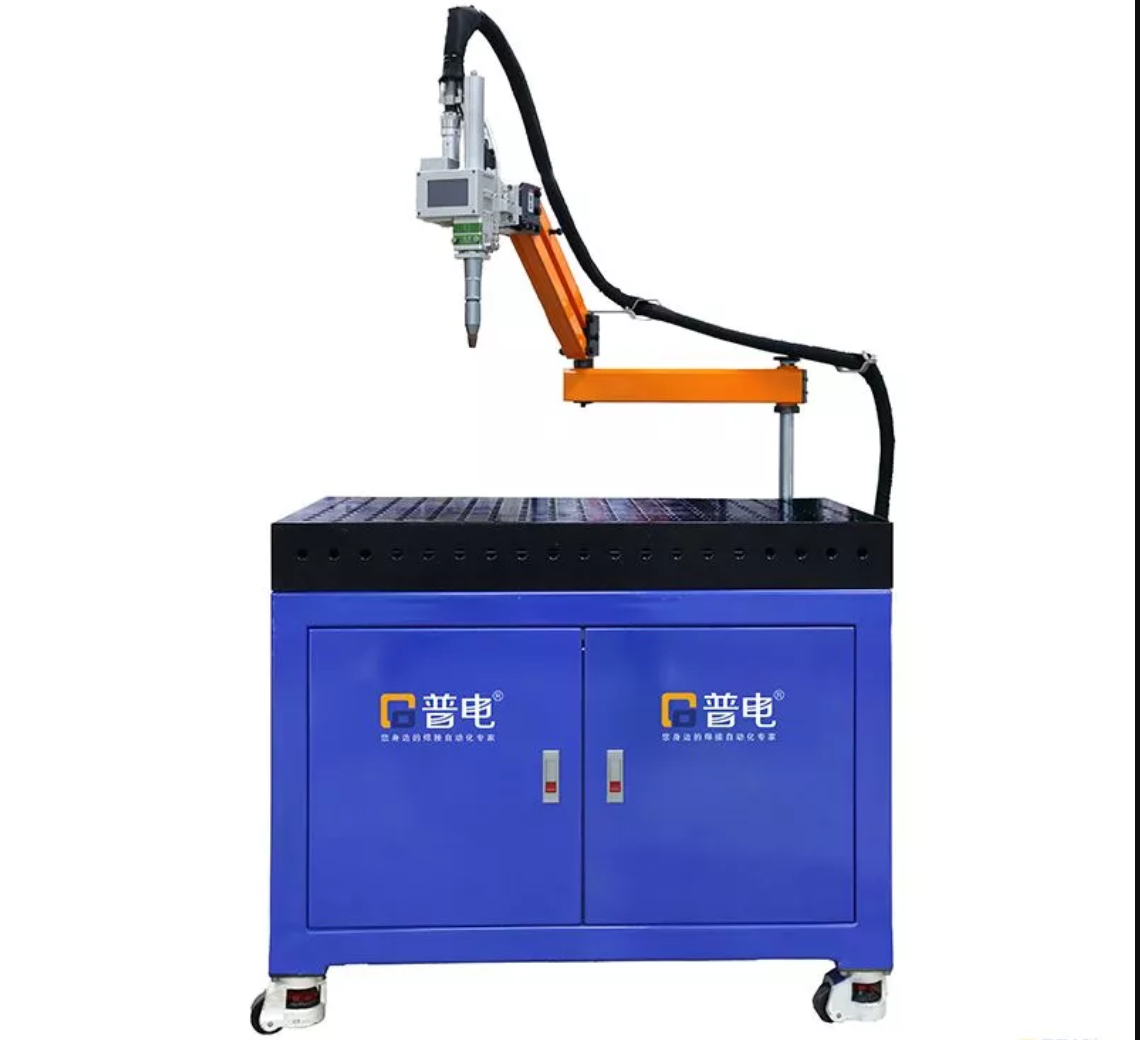

Laser Welding System Components

Laser Source: Generates the laser beam (CO2 laser, fiber laser, or solid-state laser)

Beam Delivery System: A beam guide consisting of mirrors, lenses, or optical fibers

Positioning System: A fixture or robotic arm for precision part positioning

Control Unit: Regulates power, focus, and motion parameters

Shielding Gas: Prevents oxidation and contamination of the weld pool

The integrated system delivers stable, reliable, and high-quality connections through precise process control.

Welding Techniques

Conduction Welding

• Mechanism: Surface melting via heat conduction without keyhole formation

• Characteristics: Shallow penetration, low distortion, smooth welds

• Applications: Thin materials, delicate components

Keyhole Welding

• Mechanism: High-power vaporization creates deep-penetrating keyhole

• Characteristics: Deep welds, strong joints, precise parameter control needed

• Applications: Thick materials, high-strength requirements

Hybrid Laser Welding

• Combination: Laser welding + arc welding (MIG/TIG)

• Advantages:

• Enhanced gap-bridging capability

• Increased welding speed

• Improved joint quality for challenging configurations

• Applications: Automotive, heavy industry

Industry Applications

Medical Device Manufacturing

• Components: Surgical instruments, implants, diagnostic equipment

• Materials: Stainless steel, titanium, cobalt-chrome alloys

• Benefits:

• Contamination-free joints critical for patient safety

• Micro-welding capability for miniature components

• Automated consistency for high-reliability devices

Advantages of Laser Welding

Precision and Accuracy

• Micron-level weld width control

• Complex patterns and hard-to-reach areas

• Consistent batch quality with minimal material waste

Speed and Efficiency

• Rapid processing compared to conventional methods

• Suitable for high-volume automated production

• Reduced labor costs and human error

Minimal Thermal Impact

• Small heat-affected zone (HAZ)

• Low distortion preserves part geometry

• Reduced post-welding processing requirements

Tip: Balance speed and heat control parameters to achieve optimal, distortion-free joints for your specific materials

Challenges and Limitations

High Initial Investment

• Significant equipment and infrastructure costs

• Specialized training requirements for operators

• Maintenance and repair expenses

• Consideration: More suitable for high-volume or precision-critical applications

Material Limitations

• Reflective Materials: Copper and aluminum may reflect beam energy

• High Thermal Conductivity: Rapid heat dissipation challenges weld stability

• Plastics/Composites: Thermal degradation risks

• Surface Sensitivity: Requires thorough cleaning and preparation

• Tip: Evaluate material compatibility and production volume to determine if laser welding justifies the investment for your application
