Is electrode 100% copper?

Is an electrode always made of pure, 100% copper? Many industrial professionals assume that maximum electrical conductivity requires absolute material purity. However, severe manufacturing environments quickly expose the mechanical limitations of unalloyed metals. In this article, you will discover the metallurgy behind the modern copper electrode, why trace elements are essential for performance, and how to select the ideal material for your specific industrial applications.

Key Takeaways

● Purity vs. Performance: While 100% pure copper provides optimal electrical conductivity, it lacks the structural integrity and thermal resistance required for demanding industrial applications.

● Alloying Benefits: Mixing elements like tungsten, chromium, and zirconium into copper electrodes enhances mechanical strength and prevents premature deformation.

● Application Matching: Precision EDM requires copper-tungsten blends to control spark erosion, whereas resistance welding relies on chromium-zirconium copper to prevent tip mushrooming.

● Smart Verification: Industrial buyers should use Mill Test Certificates and shop-floor hardness testing to verify precise alloy compositions before production begins.

● Value Dynamics: Opting for specialized copper alloys over pure options lowers the total cost of ownership by extending tool life and reducing machine downtime.

The Direct Answer: The Truth About Pure Copper in Electrode Manufacturing

The Limitations of 100% Pure Copper (Oxygen-Free Electronic Copper)

Oxygen-Free Electronic (OFE) copper boasting 99.95% purity represents the pinnacle of electrical conductivity. Despite this advantage, utilizing a 100% pure copper electrode in heavy manufacturing presents severe operational hurdles. Pure copper is inherently soft and possesses a low annealing temperature of approximately 200°C. When subjected to industrial stress, it deforms rapidly, exhibits high wear rates, and fails to maintain dimensional stability under heat. Consequently, pure copper remains impractical for high-stress manufacturing environments where components must withstand repetitive mechanical impact and extreme thermal cycling.

Why Copper is Alloyed: The Balance of Conductivity and Mechanical Strength

To overcome these physical limitations, metallurgists engineers employ precise alloying techniques. Introducing small percentages of secondary elements creates a strategic trade-off, slightly reducing electrical conductivity while drastically improving structural integrity. These trace elements alter the crystalline structure of the copper matrix, raising its softening temperature and enhancing its tensile strength. The resulting material allows the copper electrode to withstand immense heat and pressure without losing its shape, securing consistent electrical transfer throughout extended production runs.

Copper-Tungsten (CuW) Electrodes: The Standard for High-Precision EDM

Electrical Discharge Machining demands materials that survive continuous localized melting. Copper-tungsten composites solve this issue by blending 30% to 50% copper with 50% to 70% tungsten. This material combination utilizes powder metallurgy rather than traditional smelting because the two metals do not naturally alloy. The tungsten forms a porous matrix that resists arc erosion due to its incredibly high melting point. Simultaneously, the infiltrated copper provides the high electrical conductivity necessary to sustain stable spark gaps during high-precision machining operations.

Chromium-Zirconium-Copper (CuCrZr): The Choice for Resistance Spot Welding

Resistance spot welding requires an optimal mix of hardness and electrical thermal transfer. This sector heavily relies on Chromium-Zirconium-Copper alloys, which typically contain over 98% copper combined with small fractions of chromium and zirconium. This specific metallurgical formulation undergoes precipitation hardening to achieve excellent yield strength. Automated automotive assembly lines choose this composition because it maintains its physical dimensions under immense clamping forces while channeling high currents to create reliable nugget welds.

Beryllium-Copper Alloys for High-Stress Industrial Applications

Beryllium-copper (CuBe) represents a premium alloy variant utilized in heavy-duty or hazardous operating environments. Containing roughly 0.5% to 2% beryllium, this material delivers the highest hardness and fatigue resistance among all copper-based alloys. It easily resists impact deformation and maintains non-sparking characteristics, which is vital for hazardous environments. Industrial facilities specify these electrodes for specialized cross-wire welding and heavy geometric shaping tasks where standard tooling components fracture or wear down prematurely.

Copper-Graphite Composites: Maximizing Material Removal Rates

Copper-graphite composites offer a distinct approach by blending a metallic phase with a non-metallic crystalline carbon structure. This unique material excels in roughing operations where high material removal rates take priority over fine surface aesthetics. The uniform dispersion of graphite particles lowers the overall density and enhances thermal stability. When used as a specialized copper electrode, this composite resists sticking to the workpiece, allowing operators to run aggressive machining parameters without risking severe tool damage.

Demystifying Electrical Discharge Machining (EDM): When is a Copper Electrode Modified?

Pure Copper vs. Copper-Tungsten EDM Electrodes

Choosing between pure copper and copper-tungsten involves analyzing machining speeds and tool longevity. Pure copper works efficiently for low-amperage applications or simple geometries where material costs must remain low. However, copper-tungsten yields a much lower Electrode Wear Ratio (EWR), meaning it maintains sharp corners and intricate details for longer durations. This longevity reduces the number of electrode changes required to finish a single cavity, optimizing overall toolroom efficiency.

Navigating Electrode Wear: How Alloying Extends Tool Life

The physics of spark erosion involves creating micro-craters on both the workpiece and the machining tool. A copper electrode made of pure metal degrades quickly because its low melting point cannot resist the intense heat of continuous electrical discharges. Incorporating refractory elements like tungsten creates a thermal barrier that slows down this erosive degradation. The alloyed structure retains its structural integrity under high amperages, ensuring that the spark energy remains focused on removing material from the workpiece rather than destroying the tool itself.

Achieving High Surface Finishes: Material Composition Matters

The final surface roughness ($Ra$ value) of a machined workpiece depends directly on the structural homogeneity of the tool material. Pure copper can produce incredibly smooth mirror finishes due to its uniform, fine-grained structure. However, advanced copper-tungsten blends have improved over time, allowing operators to achieve exceptional surface quality on tough materials like carbide or hardened tool steel. Selecting the right grain size within your alloyed copper electrode ensures predictable spark dispersion and eliminates erratic pitting on the finished product.

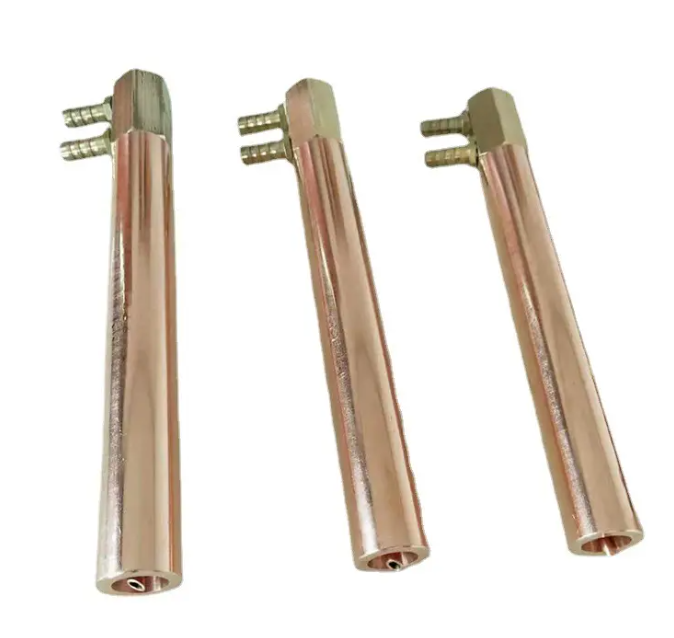

Resistance Welding Electrodes: Why 100% Copper Fails the Stress Test

The Mechanism of Electrode Mushrooming and Deformation

In resistance spot welding, electrodes experience simultaneous thermal spikes and severe mechanical compression. Under these forces, a pure copper tip softens almost instantly, causing the contact face to widen over time—a phenomenon known as mushrooming. As the tip face expands, the current density drops because the same electrical energy is distributed over a larger surface area. This drop in current density leads to cold joints and weak welds, ultimately ruining production consistency and failing quality audits.

Class 1 vs. Class 2 vs. Class 3 RWMA Copper Electrodes

The Resistance Welder Manufacturers' Association (RWMA) categorizes copper alloys into specific classes to help engineers navigate performance boundaries. Class 1 alloys offer the highest conductivity and are ideal for welding non-ferrous metals. Class 2 alloys, such as chromium-copper, represent the industry workhorse, providing an optimal balance of hardness and conductivity for high-volume steel fabrication. Class 3 alloys contain beryllium or nickel, delivering maximum mechanical strength at the expense of some electrical efficiency, making them perfect for high-resistance materials.

Optimal Electrode Material Selection for Galvanized Steel vs. Aluminum

Welding coated materials requires specialized metallurgical characteristics to prevent the copper electrode from sticking to the sheet metal. Galvanized steel features a zinc coating that easily alloys with pure copper under heat, forming brass on the tip and accelerating tool degradation. Using a Class 2 chromium-zirconium copper electrode limits this chemical reaction. Conversely, welding aluminum demands high thermal output, requiring highly conductive Class 1 or specialized copper-dispersion-strengthened materials to achieve clean separation without surface contamination.

Electrical Grounding Electrodes: Are Earth Rods Solid Copper?

Solid Copper vs. Copper-Bonded Steel Grounding Electrodes

Many building managers believe that high-quality grounding systems require solid copper earth rods. In reality, most commercial grounding installations utilize copper-bonded steel rods. These components feature a strong high-tensile carbon steel core surrounded by a thin, electro-plated exterior layer of pure copper. This composite engineering satisfies electrical safety requirements because high-frequency fault currents naturally travel along the outer skin of a conductor, rendering a 100% solid copper core unnecessary for standard grounding paths.

Evaluating Corrosion Resistance and Soil Chemistry Adaptation

The outer layer of a copper electrode must survive decades buried underground without degrading. Solid copper provides exceptional corrosion resistance in highly acidic soils, but it lacks the structural stiffness needed to drive deep into rocky terrain without bending. Copper-bonded steel rods solve this problem by combining the mechanical driving strength of steel with the reliable corrosion protection of copper. The molecular bond prevents the outer layer from peeling away during deep installation, ensuring long-term grounding performance.

Balancing Cost and Compliance with National Electrical Codes (NEC)

Engineering a grounding grid involves balancing material costs with regulatory compliance. Solid copper rods are expensive and susceptible to theft due to their high scrap value. National Electrical Codes recognize copper-bonded steel as a fully compliant alternative, provided the copper coating meets specified thickness benchmarks (typically 10 mils or 254 microns). Opting for copper-clad steel allows industrial facilities to meet stringent safety metrics while drastically reducing raw material expenditures.

How to Identify and Verify Your Electrode Material Composition

Understanding Mill Test Certificates (MTC) and ASTM Classifications

Reliable procurement relies on proper material documentation rather than visual inspection. Every reputable manufacturer supplies a Mill Test Certificate (MTC) that details the precise chemical breakdown and mechanical properties of the batch. These certificates reference global standards like ASTM or ISO to verify that your copper electrode contains the exact percentages of chromium, zirconium, or tungsten specified by your engineering team. Reviewing these documents prevents low-grade substitutes from entering your automated production lines.

Non-Destructive Testing: Utilizing X-ray Fluorescence (XRF) Analysis

Quality control teams can verify material authenticity on the shop floor without damaging the components. Handheld X-ray Fluorescence (XRF) spectrometers send an energy beam into the metal, measuring the fluorescent X-rays emitted to identify the elemental composition within seconds. This non-destructive test allows receiving departments to screen incoming shipments of any copper electrode variant, ensuring that the copper, tungsten, or chromium ratios match internal quality control standards before the parts move to assembly.

Simple Shop-Floor Diagnostics: Hardness Testing and Visual Cues

When advanced analytical instruments are unavailable, simple diagnostics can help differentiate pure copper from its alloys. Pure copper exhibits a distinct deep reddish-pink hue and can be easily scratched due to its low hardness. Alloyed variants, such as chromium-copper, appear slightly more yellowish or golden and show much higher resistance on a Rockwell hardness tester. Performing a quick hardness check helps warehouse personnel verify that soft, unalloyed inventory is not mistakenly used in high-pressure spot welding machines.

Tip: Color-code your electrode inventory by alloy class using durable heat-resistant paint on the non-working ends to prevent mix-ups during busy shift changes.

Cost-Benefit Analysis: Pure Copper vs. Advanced Copper Alloys

Calculating Total Cost of Ownership (TCO) Beyond the Purchase Price

Evaluating tooling costs based solely on the upfront purchase price can be misleading. A pure copper option usually costs less initially, but its high wear rates require frequent replacement and constant maintenance dressing. An alloyed copper electrode commands a premium price but delivers a much longer operational lifespan. Calculating the total cost of ownership involves tracking purchase prices alongside tool replacement labor, proving that advanced alloys lower the overall cost per part in high-volume manufacturing.

Production Throughput: How Electrode Longevity Boosts OEE

Machine utilization remains a critical metric for competitive manufacturing facilities. Every time a robotic welding cell or EDM machine stops for an electrode swap, Overall Equipment Effectiveness (OEE) decreases. Using high-performance copper alloys extends tool life, allowing machines to run continuously for longer periods. This increased uptime directly translates to higher daily production throughput and predictable manufacturing cycles, helping operations management hit demanding delivery targets without requiring extra overtime.

Scrap and Recycling Value: Reclaiming Pure vs. Alloyed Copper

The life cycle of industrial tooling ends in the recycling bin, where material composition affects scrap value. Pure copper scrap commands premium prices because it requires minimal processing before melting down for reuse. Conversely, separating complex alloys like copper-tungsten or beryllium-copper requires specialized smelting facilities, which can reduce the immediate cash scrap value. However, the operational savings gained by using long-lasting alloys during production far outweigh any minor differences in end-of-life scrap revenue.

Summary Comparison of Major Copper-Based Electrode Types

The table below summarizes how alloying transforms raw copper into specialized industrial tools:

Conclusion

Industrial environments prove that a high-performance electrode is rarely made of 100% pure copper. While unalloyed copper provides excellent electrical conductivity, it lacks the thermal endurance and mechanical hardness needed for high-volume manufacturing. By blending copper with elements like tungsten, chromium, or zirconium, engineers create resilient tools that withstand intense heat and structural stress. Choosing the right alloy optimization directly enhances your production efficiency and lowers long-term operational costs. For businesses seeking to maximize their welding efficiency and tool longevity, partnering with a specialized manufacturer like PDKJ ensures access to premium resistance welding equipment and expertly engineered alloy components tailored to demanding industrial applications.

FAQS

Q: Why is a pure copper electrode rarely used in high-volume spot welding?

A: A pure copper electrode softens and deforms too quickly under extreme welding heat, which alters the tool shape and compromises weld quality.

Q: How does adding tungsten change the performance of a copper electrode?

A: Blending tungsten raises the overall melting point, allowing a copper electrode to resist severe spark erosion during precision EDM tasks.

Q: Can I visually distinguish a pure copper electrode from a chromium-copper alloy?

A: Pure copper has a deep reddish hue and is quite soft, while alloyed variations appear harder and display a lighter, slightly yellowish tint.

Q: Is a copper-bonded steel grounding rod considered a true copper electrode?

A: Yes, it functions as an effective grounding electrode because high-frequency electrical faults travel efficiently along the exterior copper-bonded skin layer.
