Long Arm Resistance Spot Welding Machine for Large Metal Workpieces

PDKJ long arm resistance spot welding machine is designed for large and deep workpieces. Featuring extended throat depth, high welding precision and customized fixture solutions for sheet metal fabrication.
Availability:
Quantity:
Extended-Throat Custom Spot Welding Machine

Product Overview

The PDKJ Long Arm Resistance Spot Welding Machine is specially designed for welding large and deep-position metal workpieces that are difficult to process using conventional spot welding equipment. With its extended throat structure, the machine allows operators to reach welding areas inside large assemblies while maintaining stable pressure and consistent welding quality.


The machine provides reliable performance for sheet metal fabrication, hardware processing, cabinet manufacturing, automotive components, and industrial metal products.


Its robust mechanical structure and precision welding control system ensure high efficiency, reduced deformation, and excellent weld consistency in continuous production environments.

Applicable Materials

The machine is suitable for welding various metal materials: Carbon Steel、Stainless Steel、Galvanized Sheet、Aluminum Sheet、Copper Components、Hardware Parts、Sheet Metal Assemblies.

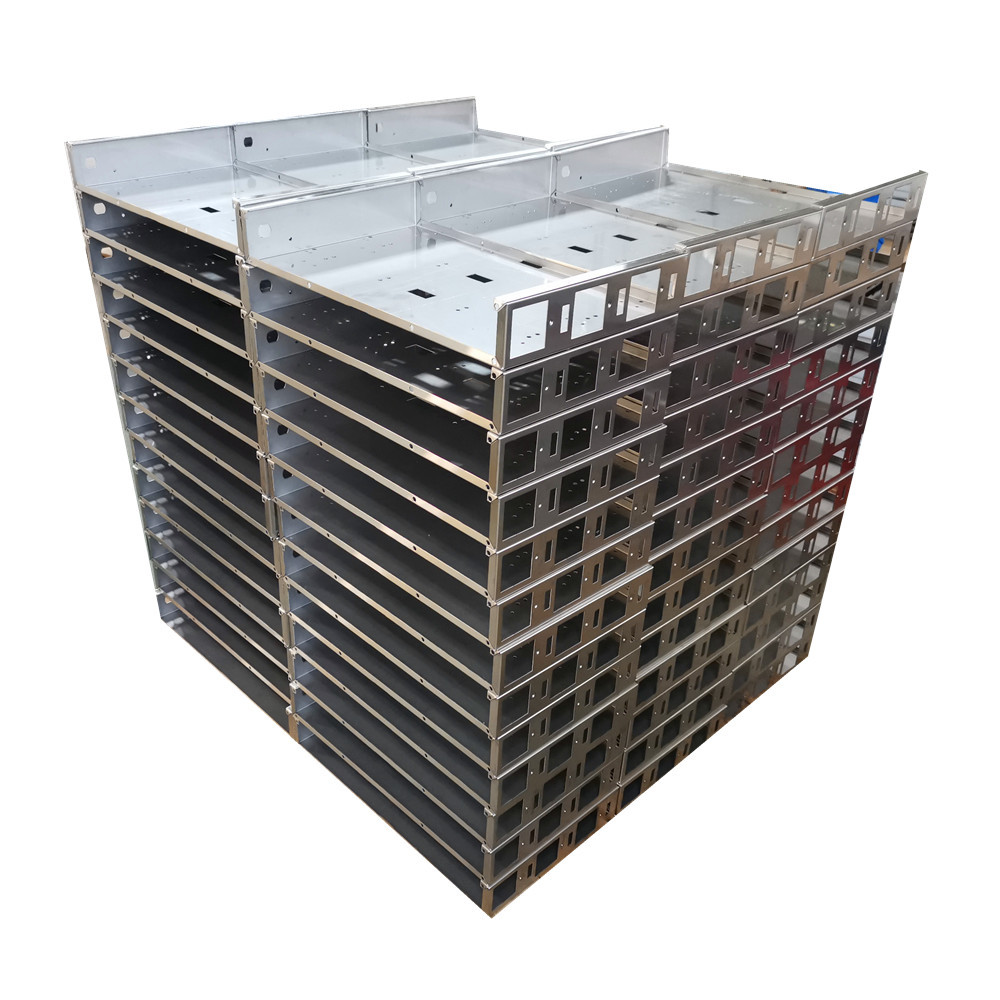

Sheet Metal Storage Rack

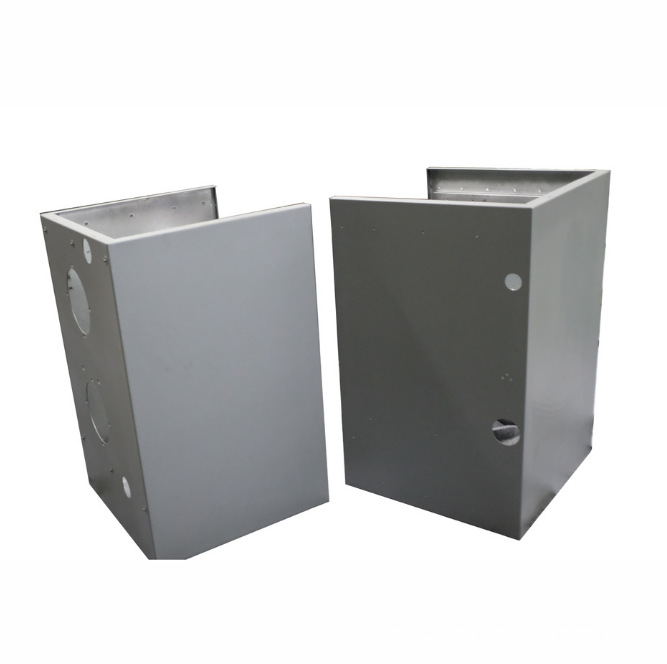

Enclosure Base

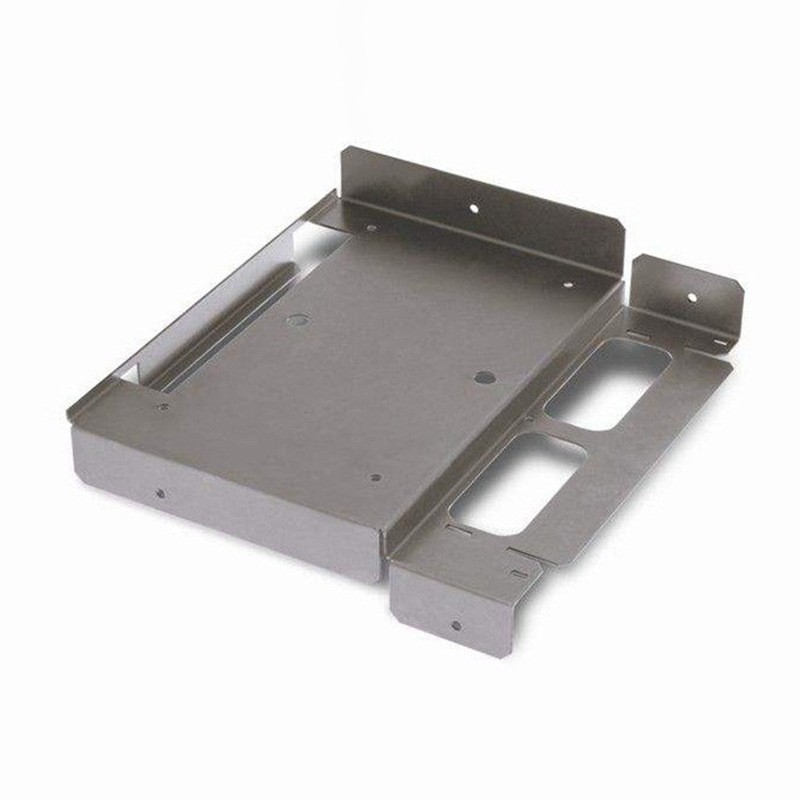

Sheet Metal Enclosure

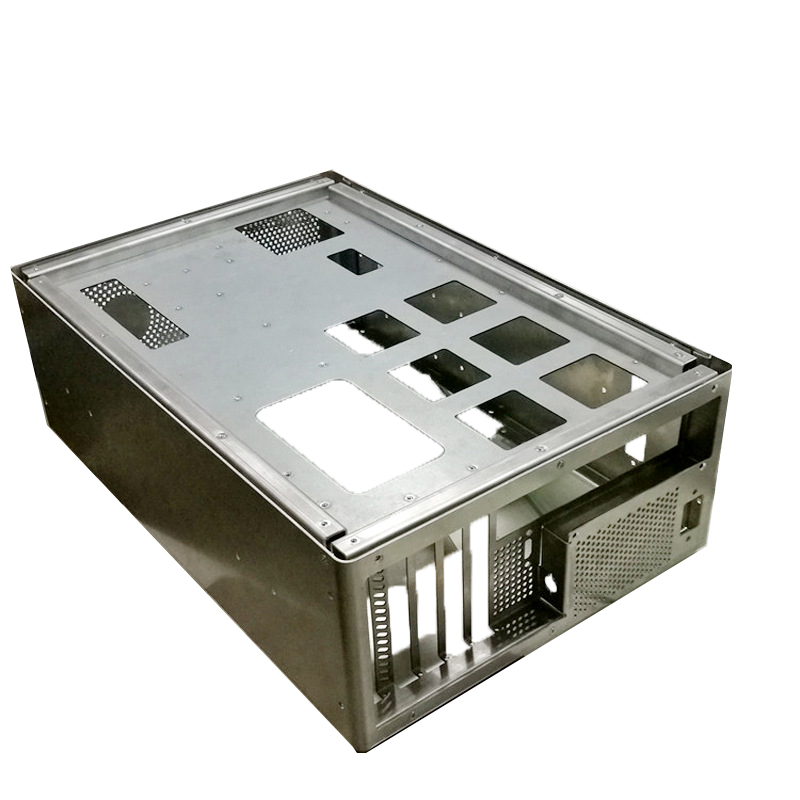

Sheet Metal Enclosure

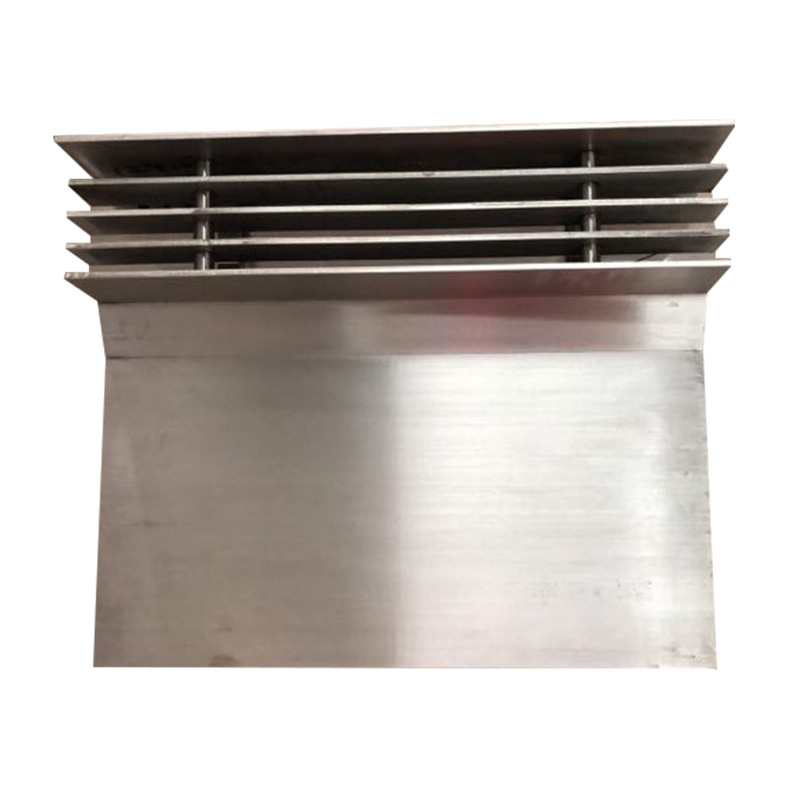

Sheet Metal Enclosure

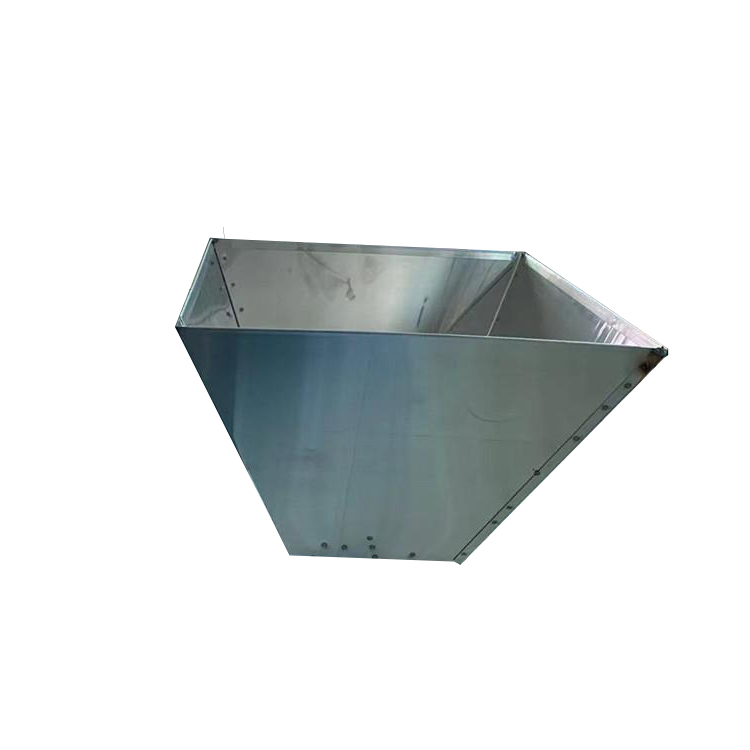

funnel

Key Features

1. Extended Throat Design

The long arm structure increases welding reach and allows access to deep internal welding positions.

2. Stable Welding Quality

Advanced welding control technology provides consistent current output and minimizes weld defects.

3. High Mechanical Strength

Heavy-duty frame construction improves stability during long production cycles.

5. Customizable Configuration

PDKJ supports customization of arm length, electrode spacing, welding pressure, and fixtures according to customer requirements.

6. Efficient Production Performance

Optimized welding cycles increase productivity while reducing operating costs.

7. Easy Operation

Humanized control interface allows quick parameter adjustment and convenient maintenance.

Technical Specifications

Parameter
Specification
Welding Method
Resistance Spot Welding
Machine Structure
Long Arm Type
Throat Depth
Customizable
Power Supply
380V / 50Hz
Electrode Stroke
Adjustable
Cooling System
Water Cooling
Control System
PLC Intelligent Control
Applicable Materials
Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum
Custom Service
Available

Typical Applications

PDKJ Long Arm Resistance Spot Welding Machine is widely used in:

应用

Working Principle

The Long Arm Resistance Spot Welding Machine generates heat through electrical resistance between metal workpieces. When welding current passes through the contact area, localized heat is generated and pressure from the electrodes forms a reliable welded joint.

The extended arm structure enables the machine to reach positions that standard spot welding equipment cannot access.

Product Advantages

Extended welding reach for large workpieces

Stable welding current output

Reduced welding deformation

High production efficiency

Strong machine structure

Long service life

Low maintenance requirements

Support for customized solutions
qiyeweixinjietu_17359620207569

Customer Case

qiyeweixinjietu_17359620207569

Customized Welding Solution for Cabinet Manufacturer

A cabinet manufacturing customer required welding deep internal positions of large enclosure structures. Traditional welding equipment could not reach the target area efficiently.


PDKJ developed a customized long-arm resistance spot welding solution with an extended throat depth configuration.


Results achieved:


√ Production efficiency increased by 35%

√ Manual adjustment time reduced by 40%

√ Product consistency improved significantly

√ Reduced secondary processing costs

FAQ

Q1: What is throat depth in a spot welding machine?

Throat depth refers to the distance between the electrode center and the machine body, determining how far the welding area can be reached.

Q2: Why choose a long arm spot welding machine?

Q3: Which materials can this machine weld?

Can PDKJ customize the machine structure?

Q5: Is operator training required?

Related Products

The company possesses an experienced R&D team capable of designing and manufacturing a wide range of resistance welding machines tailored to customer requirements.

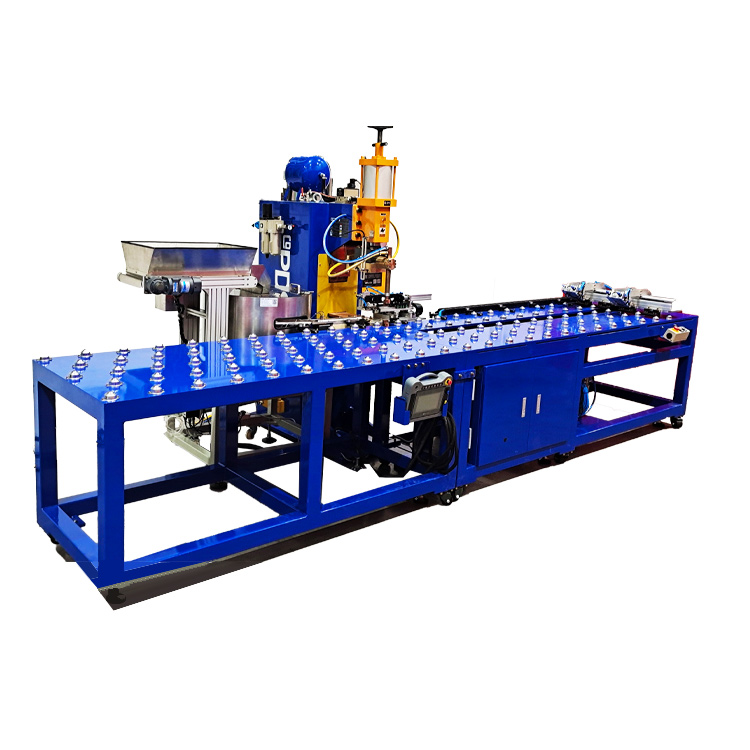

Door Hinge Projection Welding Machine

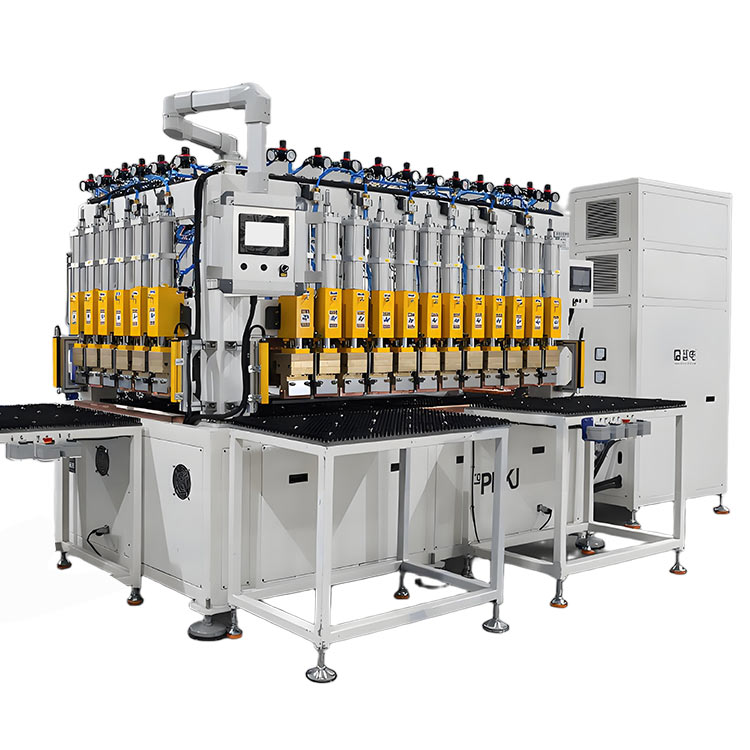

Specialized Multi-Head Spot Welding Machine for Door Panel Hinges

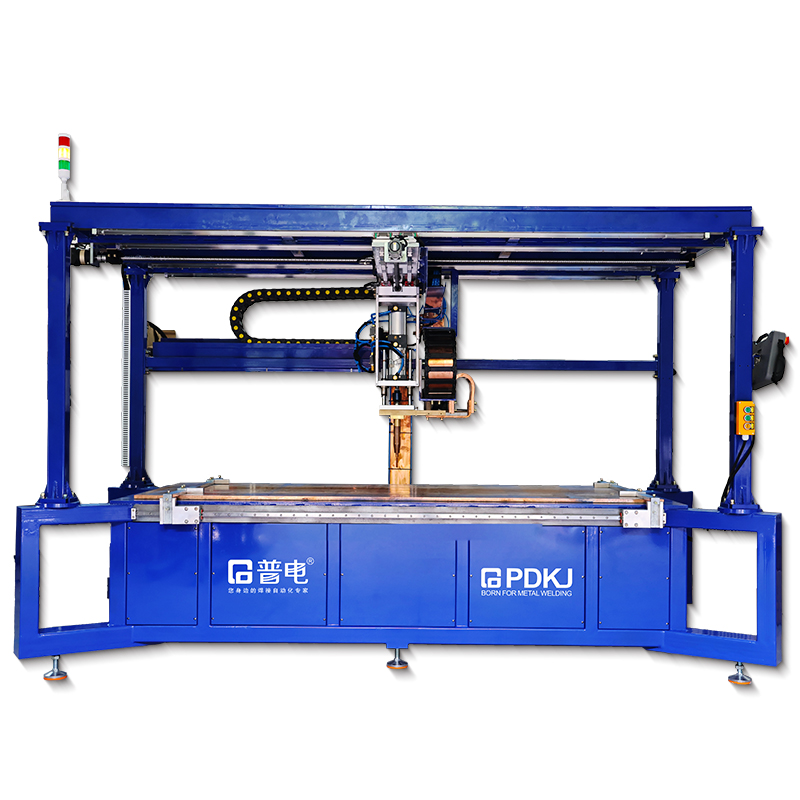

Door Panel Reinforcement Rib Gantry Spot Welding Machine
