Can You Spot Weld Aluminum?

Can aluminum be spot welded? Yes, but it is not forgiving. Aluminum moves heat fast and hides oxide on the surface. In spot welding, small setup changes can change the weld. In this guide, you will learn the right machine, settings, checks, and problems to avoid.

Key Takeaways

● Aluminum can be joined by spot welding, but it needs better control than mild steel.

● A suitable spot welding machine should provide stable current, repeatable pressure, and short welding cycles.

● Aluminum’s oxide layer can block stable current flow, so surface preparation matters.

● Medium-frequency inverter DC spot welders are often a practical choice for aluminum sheets, wires, and metal parts.

● Capacitive energy storage welders can help when short discharge time and clean weld marks are important.

● Large sheet metal parts may need a platform-style machine, stable fixtures, and flexible welding arms.

● Weld quality should be verified by sample testing before batch production.

● Poor aluminum spot welds often come from dirty surfaces, worn electrodes, unstable pressure, or wrong parameters.

Can You Spot Weld Aluminum?

Yes, Aluminum Can Be Spot Welded

You can spot weld aluminum if the process is matched to the material. The machine must send a strong, controlled current through overlapping aluminum parts. The electrodes press the parts together, current flows through the contact area, heat forms at the joint, and a weld nugget develops.

This sounds simple, but aluminum reacts differently from steel. It conducts heat quickly, so heat does not stay in one place for long. It also has a surface oxide layer, which can affect current flow. That is why aluminum spot welding needs more careful control.

Why Aluminum Needs a Different Approach

Mild steel is easier to spot weld because its heat flow and surface behavior are more forgiving. Aluminum needs higher current in a short time. It also needs steady electrode force and clean contact between sheets.

If the heat is too low, the weld may look fine but fail under load. If heat is too high, the part may burn, dent, or stick to the electrode. The process window is narrower, so random trial-and-error settings can waste parts.

Where Aluminum Spot Welding Works Best

Aluminum spot welding works best for overlap joints. These include aluminum sheets, conductive parts, wire connections, cabinet panels, battery-related parts, and light metal assemblies. It is useful when production needs repeated weld points instead of long continuous seams.

It is not the best choice for every aluminum part. If the joint needs a visible continuous seam, TIG welding or laser welding may fit better. If the part is very thick or has a complex shape, sample testing becomes even more important.

Tip: Always test real aluminum samples, not only flat coupons, before confirming a production welding process.

Why Aluminum Is Harder to Spot Weld Than Steel

Aluminum Moves Heat Quickly

Aluminum has high thermal conductivity. It pulls heat away from the weld area fast. This means the welding machine must create enough heat before the part cools the joint.

For thin aluminum, the timing must be accurate. A slight increase in weld time can create surface marks. A slight drop in current can weaken the weld. This is why stable power output is more important than just high power.

The Oxide Layer Creates Unstable Contact

Aluminum naturally forms a hard oxide layer. This layer protects the surface, but it also makes welding harder. If the oxide layer is uneven, the current path may also become uneven.

Oil, dust, fingerprints, and storage marks can make the problem worse. Two sheets from the same batch may still weld differently if the surfaces are not prepared in the same way. Clean and repeatable surface condition helps create repeatable welds.

Soft Material Can Deform Easily

Aluminum is softer than many steels. If electrode pressure is too high, the surface may dent. If the electrode tip is damaged, it can leave marks. If heat and pressure are not balanced, the part may stick to the electrode.

This is why electrode condition is a key part of aluminum spot welding. A clean, properly shaped electrode helps control pressure, contact size, and heat concentration.

Note: A shiny weld mark does not always mean a strong weld. Strength testing is still needed.

Choosing the Right Spot Welding Machine for Aluminum

Medium-Frequency Inverter DC Spot Welding Machine

A medium-frequency inverter DC spot welding machine is often a strong choice for aluminum work. It can provide stable output and better control than many conventional power-frequency machines. This helps when aluminum needs fast heat input and repeatable current.

This machine type is suitable for many metal materials, including aluminum plates, galvanized sheets, stainless steel, carbon steel, copper, and wires. It can support spot welding and projection welding tasks in automotive parts, new energy components, hardware, kitchenware, and related metal products.

For aluminum, the main value is control. The operator can tune current, time, and pressure more precisely. This helps reduce weak welds, surface damage, and unstable results.

Desktop Precision Spot Welding Machine

A desktop spot welding machine is better for smaller parts. It saves space and supports more precise control for fine workpieces. It may be used in electronics, appliances, instruments, medical devices, wire terminals, connectors, and small hardware parts.

For aluminum, this type can be useful when the part is small, thin, and sensitive to heat. The key is not size alone. The machine must still match the material thickness, joint shape, and required strength.

Capacitive Energy Storage Spot Welding Machine

A capacitive energy storage spot welding machine stores energy first, then releases it quickly. This short discharge helps create concentrated heat. It can reduce heat spread and improve surface quality when the application fits.

This type can be useful for materials with good thermal and electrical conductivity, including aluminum and copper. It can also help when clean weld marks and less post-weld finishing are important. Still, the final choice depends on the part shape, thickness, and strength requirement.

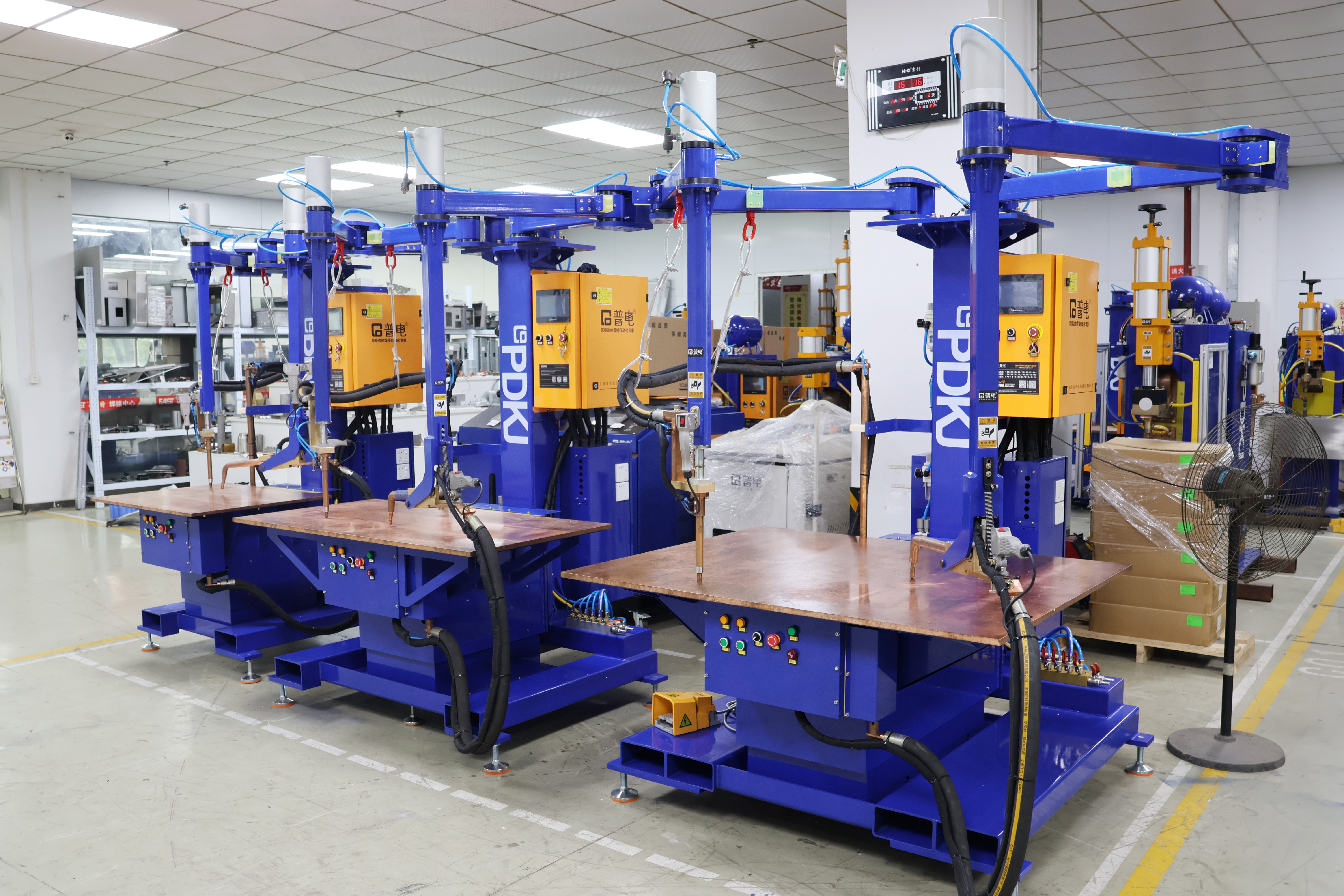

Platform-Style Spot Welding Machine

Large aluminum sheet parts may need a platform-style spot welding machine. A platform can support larger workpieces and help operators keep the joint stable. Flexible welding arms can also help reach different welding directions.

This machine type fits sheet metal parts such as cabinets, chassis, battery casings, door panels, kitchenware, and hardware appliances. For aluminum panels, stable support reduces movement during welding. Less movement usually means more consistent weld points.

How to Set Up Aluminum Spot Welding

Prepare the Surface First

Surface preparation is the first step. Remove oil, dust, coating residue, and uneven oxide when needed. Use the same cleaning method for each batch, or the welding result may change.

For mass production, surface preparation should be written into the process. It should not depend only on operator habit. The goal is not to over-clean every part. The goal is to create a stable surface condition before welding.

Match Current, Time, and Pressure

Aluminum often needs high current and short weld time. The machine must heat the joint fast, before heat spreads away. Pressure must hold the sheets together, but it should not crush the surface.

Start with sample tests. Change one parameter at a time. If current, time, and pressure are adjusted together, it becomes hard to find the real cause of defects. Keep records for each sample so the final process can be repeated later.

Select the Right Electrode

Electrodes concentrate current and pressure at the weld area. For aluminum, electrode shape, cooling, and surface condition are very important. A worn electrode can create larger marks, weaker welds, or sticking.

Regular electrode maintenance helps keep weld quality stable. Operators should check electrode faces during production, not only after defects appear. If weld points become uneven, electrode wear should be one of the first checks.

Tip: Build electrode inspection into the shift checklist, especially when welding aluminum in batches.

Common Aluminum Spot Welding Problems

Weak Welds

A weak aluminum spot weld may come from low current, short weld time, poor surface condition, or poor pressure control. Sometimes the weld mark looks normal, but the nugget is too small.

The best fix is not always “more power.” First check surface cleanliness, part fit-up, electrode condition, and pressure. Then adjust the welding schedule. A balanced setup gives better results than simply increasing current.

Burn-Through and Surface Marks

Burn-through happens when too much heat enters the spot. Surface marks may also appear when the electrode face is wrong, pressure is too high, or the part is too thin for the selected setting.

To reduce this risk, shorten weld time, improve current control, and check electrode alignment. For visible aluminum panels, a platform machine or better fixture may also help reduce movement and marks.

Electrode Sticking

Aluminum can stick to the electrode when heat builds up or when the electrode surface becomes contaminated. Sticking affects weld quality and can damage the part surface.

Good cooling, proper electrode material, regular dressing, and stable pressure can help. If sticking repeats, review both the weld parameters and the surface condition of the aluminum parts.

Inconsistent Welds in Production

Inconsistent welds often come from inconsistent inputs. The part may move. The surface may vary. Operators may place parts differently. The machine may not hold pressure or current steadily.

Fixtures help reduce these variations. A well-designed fixture fixes the parts in the right position and supports accurate welding locations. This is especially important for larger aluminum panels and repeated production.

How to Choose a Spot Welding Machine for Aluminum Applications

Start With the Workpiece

Do not choose a machine by name alone. Start with the aluminum alloy, sheet thickness, joint design, weld point size, appearance needs, and production volume. These details decide the welding method.

A small connector and a large aluminum cabinet do not need the same setup. A thin electronic part may need precision control. A large panel may need a platform, fixture, and flexible welding arm.

Check Output Stability

For aluminum, stable output is critical. The machine should deliver repeatable current and pressure. It should also allow practical parameter adjustment for different parts.

Medium-frequency inverter DC machines can be a strong option when stable current and control accuracy matter. Capacitive energy storage machines may fit applications that need short welding time and better surface quality.

Consider Fixtures and Workflow

Fixtures are not optional in many production settings. They hold parts in the correct position and reduce operator variation. They also help improve speed, safety, and weld consistency.

For large aluminum sheet parts, the machine table and workholding design can affect the final weld as much as the power source. A good fixture reduces movement and helps keep each weld point in place.

Request Sample Welding

Before choosing a machine, test the real parts. Check weld strength, surface marks, deformation, electrode wear, and cycle time. If the supplier can support sample welding and process advice, the risk of a wrong purchase is lower.

A good test should include the actual material, actual thickness, real part shape, and expected production rhythm. Flat test strips are useful, but they cannot replace real product samples.

Conclusion

Aluminum can be spot welded, but it needs clean surfaces, stable current, proper pressure, and the right machine type. PDKJ offers spot welding machine options for aluminum plates, large sheet metal parts, precision components, and customized production needs. Its sample testing and tailored welding solutions help users improve weld quality and reduce process risk.

FAQS

Q: Can spot welding join aluminum?

A: Yes. Spot welding can join aluminum when current, pressure, and surface preparation are controlled.

Q: What spot welding machine works for aluminum?

A: A medium-frequency inverter DC spot welding machine is often suitable for aluminum sheets.

Q: Why is aluminum hard to spot weld?

A: Aluminum spreads heat fast and forms oxide, so welding control matters.

Q: Is aluminum spot welding cheaper than laser welding?

A: It can be cheaper for repeated overlap weld points.

Q: How do you fix weak aluminum spot welds?

A: Clean surfaces, check electrodes, and adjust spot welding parameters carefully.
