How Does a Spot Welder Work?

Spot welding looks simple from the outside. Two electrodes press metal, a short current flows, and a strong joint appears. But the real process depends on heat, pressure, time, and control. In this article, you will learn how a spot welder works and how to choose a better setup.

Key Takeaways

● A spot welding machine joins overlapped metal parts by using pressure and electrical resistance.

● Heat forms at the contact point, where metal layers resist current flow.

● The weld nugget forms between the sheets, not only on the surface.

● Current, welding time, electrode pressure, and electrode condition control weld quality.

● Different machines suit different needs, such as precision parts, large sheet metal, or projection welding.

● Fixtures matter because they keep parts stable, aligned, and repeatable.

● A good spot welding setup reduces weak joints, spatter, rework, and unstable output.

● Before mass production, test the material, thickness, weld strength, and real production cycle.

What Is a Spot Welder?

A spot welder is a resistance welding machine. It joins two or more metal parts at small contact points. The machine does not need filler wire. It does not use an open flame. Instead, it uses electrical current, pressure, and controlled timing.

In most cases, the parts overlap each other. The electrodes touch both sides of the workpiece. Then the machine sends a strong current through the metal. The contact area heats up fast. This heat creates a small molten zone between the layers. After cooling, that zone becomes the weld nugget.

Spot welding is common in sheet metal fabrication. It is also used for electrical parts, hardware products, automotive components, appliance parts, and new energy-related assemblies. It works well when manufacturers need fast, repeatable, and neat welds.

A spot welding machine can be manual, semi-automatic, or automated. Small desktop machines often handle precision parts. Platform machines support larger sheets. Multi-head systems can weld several points in one cycle. Custom machines can match special workpieces, fixtures, or production lines.

How Does a Spot Welder Work?

A spot welder works through a controlled cycle. Each step affects the final weld strength and appearance. If one step is unstable, the weld may look fine but fail under load.

The metal parts are overlapped and positioned

The operator or automation system places the parts in the correct position. The overlap must be stable. If the parts shift, the weld point may move. This causes poor appearance or weak joints.

Fixtures help solve this issue. They hold the workpiece, control the welding position, and reduce human error. For repeated production, a good fixture is often as important as the machine itself.

The electrodes press the metal

The upper and lower electrodes clamp the workpiece. This pressure creates close contact between the metal layers. It also controls how the molten zone forms.

Too little pressure can cause arcing or spatter. Too much pressure can reduce resistance and weaken heat generation. It may also leave deep surface marks. A stable pressure system helps the weld stay consistent.

High current passes through the joint

After clamping, the machine sends current through the electrodes and metal. The current flows for a short time. The exact time depends on material, thickness, surface coating, and weld size.

Heat forms because the metal resists the current. The highest heat usually appears at the interface between the overlapped parts. This is why the weld nugget forms inside the joint.

Resistance heat creates the weld nugget

As heat rises, the metal softens or melts at the contact point. The molten zone grows into a nugget. This nugget bonds the layers together.

The goal is not to melt the whole sheet. The goal is to create enough fusion at the right location. A good nugget has proper size, strength, and penetration.

Hold time lets the weld solidify

After the current stops, the electrodes keep pressing the workpiece. This hold time allows the molten zone to cool under pressure. It helps reduce cracks, voids, and weak fusion.

If the electrodes release too early, the weld may deform. If hold time is too long, it slows production. The best setting balances strength and cycle speed.

The electrodes release the part

Once the weld solidifies, the electrodes open. The operator removes the part, or the automation system moves it to the next position. The cycle then repeats.

This simple cycle is why spot welding works well in batch production. It can produce many joints fast, as long as the parts and settings stay stable.

Tip: Test several weld points before production. A small parameter change can greatly affect weld strength.

What Parts Make Up a Spot Welding Machine?

A spot welding machine is more than a power source. It works as a complete system. Each part supports heat control, pressure control, and repeatability.

Power supply and controller

The power system provides the welding current. The controller decides how much current flows and how long it lasts. Modern machines can offer more stable current control than basic systems.

Some machines use intermediate-frequency inverter DC technology. This type is often chosen when users need precise current control and stable output. It can support many metal types and demanding production needs.

Capacitive energy storage machines work differently. They store energy first, then release it quickly. This can be useful for certain conductive materials, dissimilar metals, and projection welding tasks.

Electrodes

Electrodes carry current and apply pressure. They also shape the visible weld mark. Their material, tip size, cooling, and surface condition all affect the result.

Worn electrodes can cause weak welds. Dirty electrodes can create uneven heat. Poor alignment can leave offset marks. Regular electrode care helps maintain stable quality.

Pressure system

The pressure system moves the electrodes. It may be pneumatic, mechanical, or servo-driven. Its job is to clamp the parts with controlled force.

Pressure should stay repeatable from one weld to the next. Unstable pressure can change contact resistance. This leads to random weld strength.

Fixtures and positioning parts

Fixtures keep the workpiece in place. They help maintain accurate weld positions. They also improve production speed because operators do not need to align every part by hand.

For large sheet metal, fixtures prevent movement and gaps. For small electrical components, they help protect fine positions. For custom parts, fixture design can decide whether the whole process works.

Note: A powerful machine cannot fix poor positioning. Stable fixtures reduce many hidden welding defects.

What Parameters Control Spot Welding Quality?

Spot welding depends on a small group of key settings. They work together. Changing one setting often affects the others.

Welding current

Current creates the heat. Higher current usually increases heat input. But more current is not always better. Too much current can cause spatter, surface damage, or metal expulsion.

The correct current depends on the material and thickness. Coated metal may need different settings from plain steel. Conductive metals may need stronger and faster control.

Welding time

Welding time controls how long current flows. Short time may not form a strong nugget. Long time may overheat the part.

Good machines allow accurate time control. This helps operators repeat the same weld many times. It also helps when switching between part sizes.

Electrode pressure

Pressure affects contact resistance. It also affects indentation and nugget shape. If pressure changes during production, weld quality may change too.

For thin sheets, pressure must avoid severe surface marks. For harder materials, pressure may need to be higher. The best setting comes from testing, not guessing.

Electrode condition

Electrodes wear during use. Their tips may become flat, dirty, or overheated. Once this happens, current no longer flows the same way.

Routine maintenance is simple but important. Clean the electrode tips. Check alignment. Replace or dress them before quality drops.

What Types of Spot Welding Machines Are Used?

Different machines serve different production needs. The best choice depends on the part, material, weld size, and production volume.

Desktop spot welding machines

Desktop machines suit smaller parts. They save floor space and can support precision welding. They are often used for electrical parts, terminals, small metal pieces, and light assemblies.

They are a good choice when the workpiece is small but weld quality still matters. Operators can set parts quickly and repeat the same welding action.

Intermediate-frequency inverter DC machines

Intermediate-frequency inverter DC spot welding machines offer stable current control. They are often used for sheet metal, stainless steel, galvanized sheet, aluminum sheet, high-strength steel, and wires.

This type is useful when the weld must stay consistent. It can also support projection welding and multi-point welding, depending on machine design.

Capacitive energy storage spot and projection machines

Capacitive energy storage machines release stored energy quickly. This short energy pulse can create strong welds with controlled heat.

They may suit stainless steel, copper, nickel alloys, dissimilar metals, and raised-point projection welding. For parts that need neat weld points, this method can be practical.

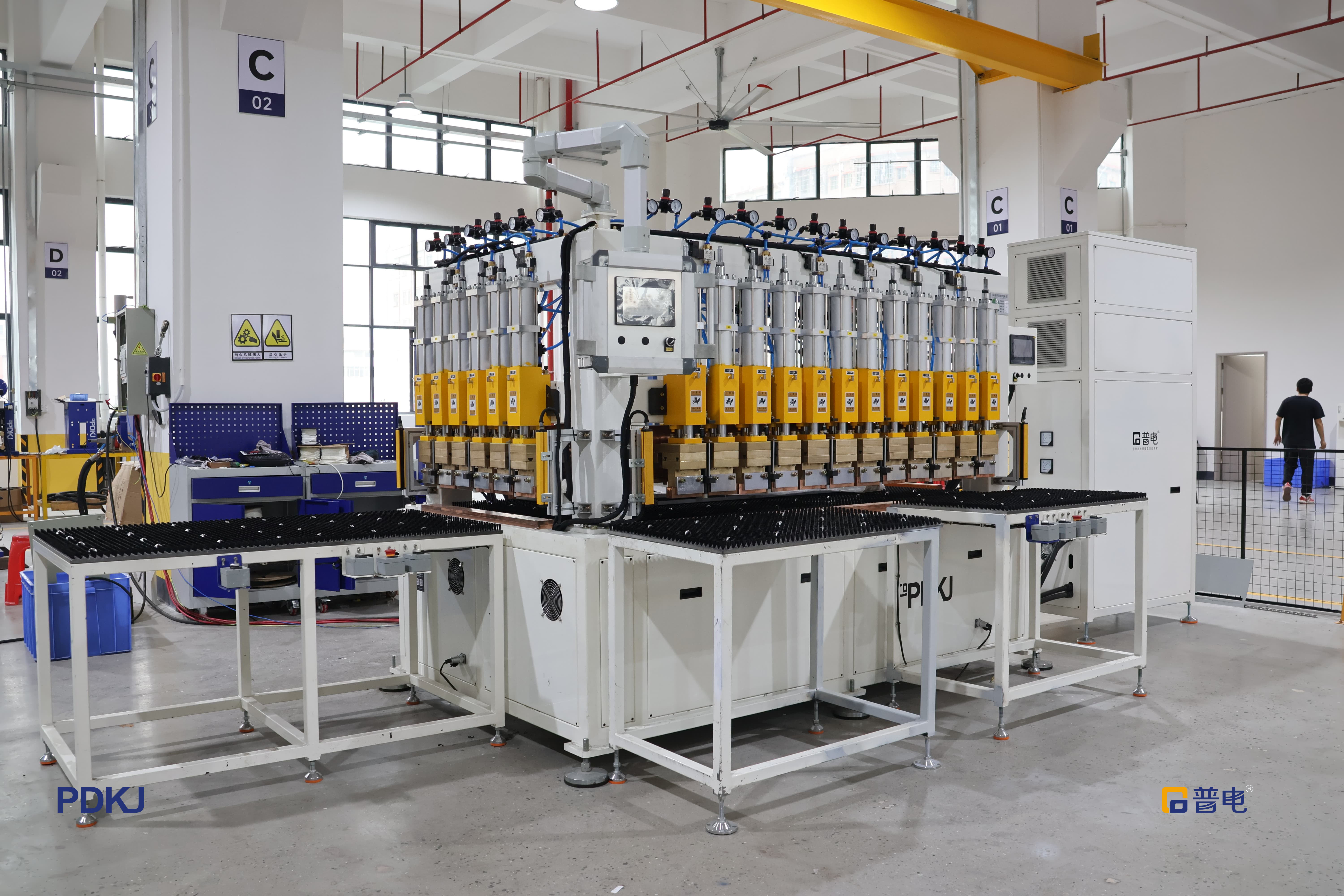

Platform and automated machines

Platform machines support larger workpieces. They help operators place wide sheets or panels. Some systems use adjustable platforms, flexible welding guns, or dual welding heads.

Automated systems suit repeated parts and larger orders. They can reduce manual handling and improve consistency. For door panels, hinges, reinforcement ribs, and large sheet metal parts, automation can improve both speed and accuracy.

Tip: Choose the machine around the real part, not only the material name. Size, access angle, and weld position also matter.

What Materials Can Be Spot Welded?

Spot welding works with many metals, but each metal behaves differently. Good results depend on matching material behavior with machine capability.

Low-carbon steel is one of the easiest materials to spot weld. It has suitable resistance and predictable weld behavior. Stainless steel can also be spot welded, but heat control matters because it can show marks or distortion.

Galvanized sheet needs careful control. The zinc coating can affect heat and surface quality. If settings are wrong, spatter or weak welds may appear.

Aluminum is more difficult because it conducts heat and electricity well. It often needs higher current and more accurate control. Copper is also challenging for the same reason. Dissimilar metals need even more testing because each layer heats differently.

Projection welding is useful for parts with raised points. Nuts, hinges, brackets, and reinforcement parts often use this method. The raised point concentrates current and heat. This helps form the weld at a planned location.

Why Do Spot Welds Fail?

Most spot weld failures come from unstable heat, pressure, or positioning. The problem may not appear on the surface. A weld can look clean but still lack strength.

Poor surface condition

Oil, rust, oxide, and heavy coating can block current flow. They can also create uneven resistance. Clean surfaces help the current pass through the correct area.

Wrong settings

Weak current or short time can create a small nugget. Excessive current or long time can cause burn-through or spatter. Wrong pressure can also reduce weld quality.

The best way to avoid this is sample testing. A peel test or shear test can reveal hidden weakness. Visual inspection alone is not enough.

Electrode wear

Electrodes change shape over time. Once the tip wears, the current spreads differently. This may create larger marks but weaker welds.

Maintenance records help. Operators should track electrode cleaning, dressing, and replacement. This reduces sudden defects during production.

Poor fit-up

Gaps between parts reduce heat control. Moving parts cause weld offset. Bad fixtures slow production and create unstable weld points.

A solid fixture keeps parts in position. It also helps each cycle start from the same condition.

Practical Tips for Better Spot Welding Results

Good spot welding starts before the machine fires. First, keep the workpieces consistent. Use stable material thickness, clean surfaces, and proper overlap. Avoid mixing materials without retesting.

Second, control the electrodes. Their condition affects every weld. Check tip shape, cooling, and alignment often. Do not wait for visible defects before maintenance.

Third, record successful settings. Save current, time, pressure, electrode type, material thickness, and fixture details. These records help repeat orders run faster.

Fourth, inspect both appearance and strength. A smooth weld mark is useful, but it does not prove internal fusion. Strength testing gives better confidence.

Finally, review the whole process. If weld quality changes, do not adjust current first every time. Check pressure, surface condition, electrode wear, and fixture movement too.

Note: Stable spot welding is a system result. Machine, material, tooling, and operation must work together.

Conclusion

A spot welder works by combining current, pressure, and time to form a strong weld nugget. The right machine also needs stable electrodes, accurate fixtures, and tested parameters. PDKJ provides spot welding machines, customized structures, fixture support, and welding solutions that help users improve quality, speed, and production consistency.

FAQS

Q: What is spot welding?

A: Spot welding joins overlapped metals by pressure and current.

Q: How does a spot welding machine work?

A: A spot welding machine creates heat through resistance.

Q: Why does spot welding need pressure?

A: Pressure stabilizes contact and helps form the nugget.

Q: Is spot welding good for aluminum?

A: Spot welding aluminum needs stronger, precise control.

Q: Why do spot welds fail?

A: Dirty surfaces, worn electrodes, or wrong settings cause failure.

Q: Is a spot welding machine expensive?

A: Price depends on power, control, size, and automation.
