Capacitor Discharge Spot Welding Machine

▷ Application Industry: Automotive Parts Manufacturing

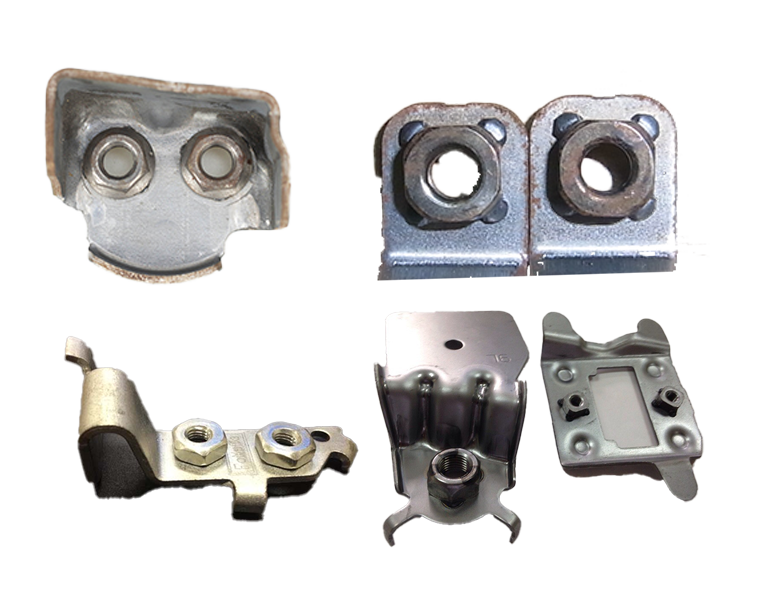

▷ Welding Workpiece: Nuts on Stainless Steel Sheet Metal Parts

Recently, the PDKJ capacitor discharge spot welding machine, equipped with an automatic nut feeding system, successfully completed delivery and acceptance. The equipment has officially been installed at an automotive hardware tooling and sheet metal parts manufacturer and has been put into mass production.

The equipment was customized for the welding of 2.0 mm stainless steel sheet metal parts and nuts. It is currently operating stably, providing reliable equipment support for the customer's welding process upgrade.

I. Project Background

Customer Profile

The customer specializes in the automotive parts supply chain, focusing on the R&D and design of automotive hardware molds and the processing of automotive sheet metal components. Its products include various automotive structural sheet metal parts and matching fasteners. The company serves the supply chains of multiple domestic and international automotive brands and has large-scale stamping and welding capabilities.

Project Background

In actual production, some automotive sheet metal parts require nuts to be welded at designated positions to form reliable connections for subsequent assembly. Although these workpieces may appear simple, mass production places higher requirements on equipment stability, nut feeding accuracy, and workpiece positioning.

The equipment must ensure that welding strength meets requirements while also adapting to the continuous production rhythm of the workshop.

Therefore, the customer's objective was not simply to solve the basic problem of "whether the nuts can be welded." Instead, the customer wanted to optimize the welding process with equipment that better matched its production workflow, making nut welding more standardized and efficient.

II. Focusing on Production Requirements and Solving Welding Challenges

Based on the actual production conditions, the customer mainly focused on three key requirements:

1. Stable Welding Quality

The main workpiece consists of 2.0 mm stainless steel sheet metal combined with nuts. Stainless steel has relatively high thermal conductivity, and the previous welding process could result in oxidation and discoloration, insufficient weld strength, and slight sheet metal deformation.

The customer required stable weld strength and appearance to meet the quality inspection standards for automotive parts.

2. Improved Production Efficiency

The original nut welding process relied on operators to manually place and position each nut. This limited the output of each workstation.

The customer hoped to reduce manual operations through automatic feeding, improve welding cycle time, and achieve better consistency across mass-produced products.

3. Long-Term Reliability

The workshop operates with multiple shifts and continuous production. Therefore, the equipment needs to have a low failure rate, strong resistance to power fluctuations, simple daily maintenance, and the ability to operate reliably under long-term, high-load production conditions.

III. Key Advantages of the PDKJ Capacitor Discharge Spot Welding Solution

Based on the customer's actual production conditions and requirements, PDKJ provided a complete spot welding solution integrating welding process, automation, and operational stability:

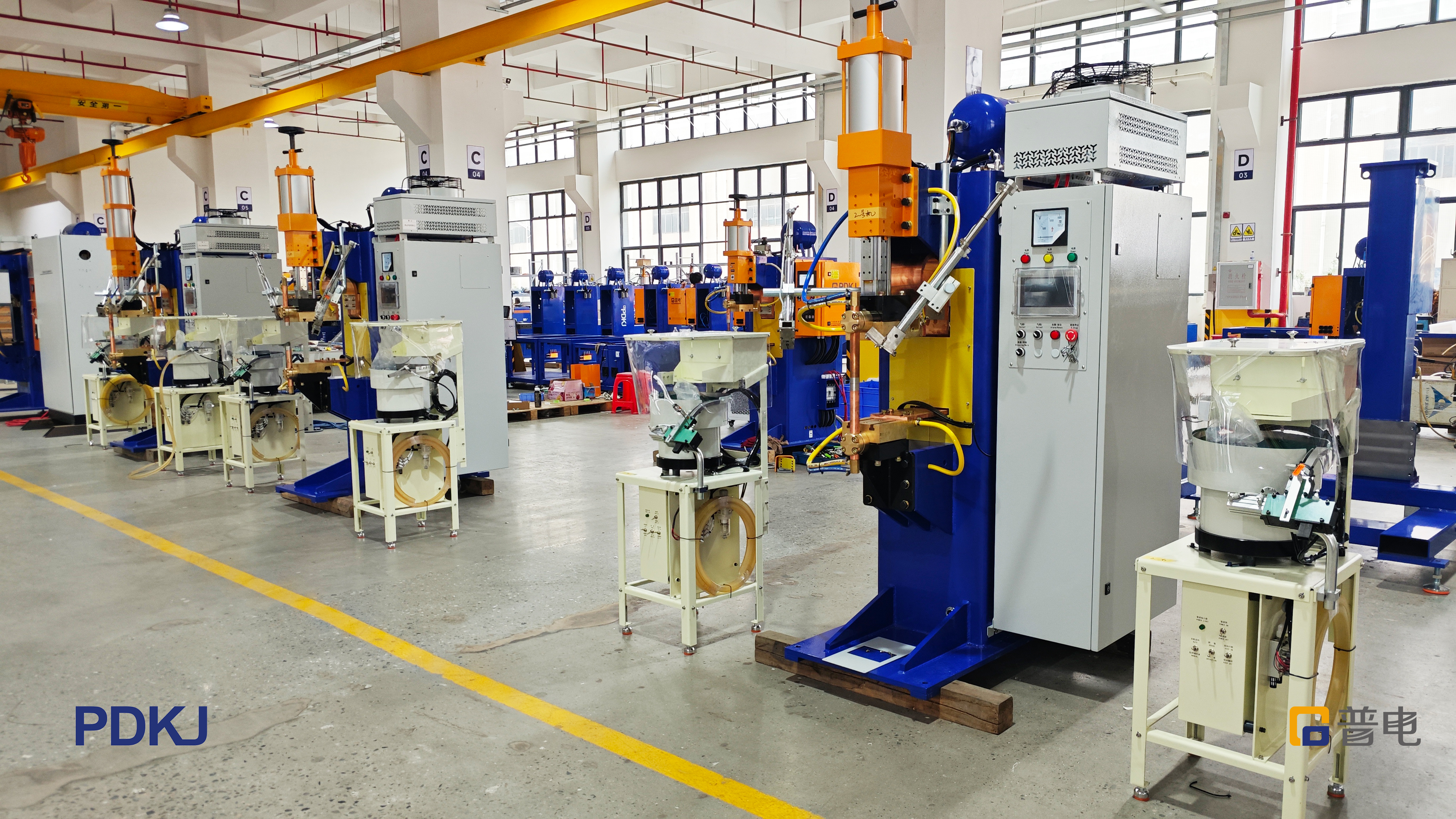

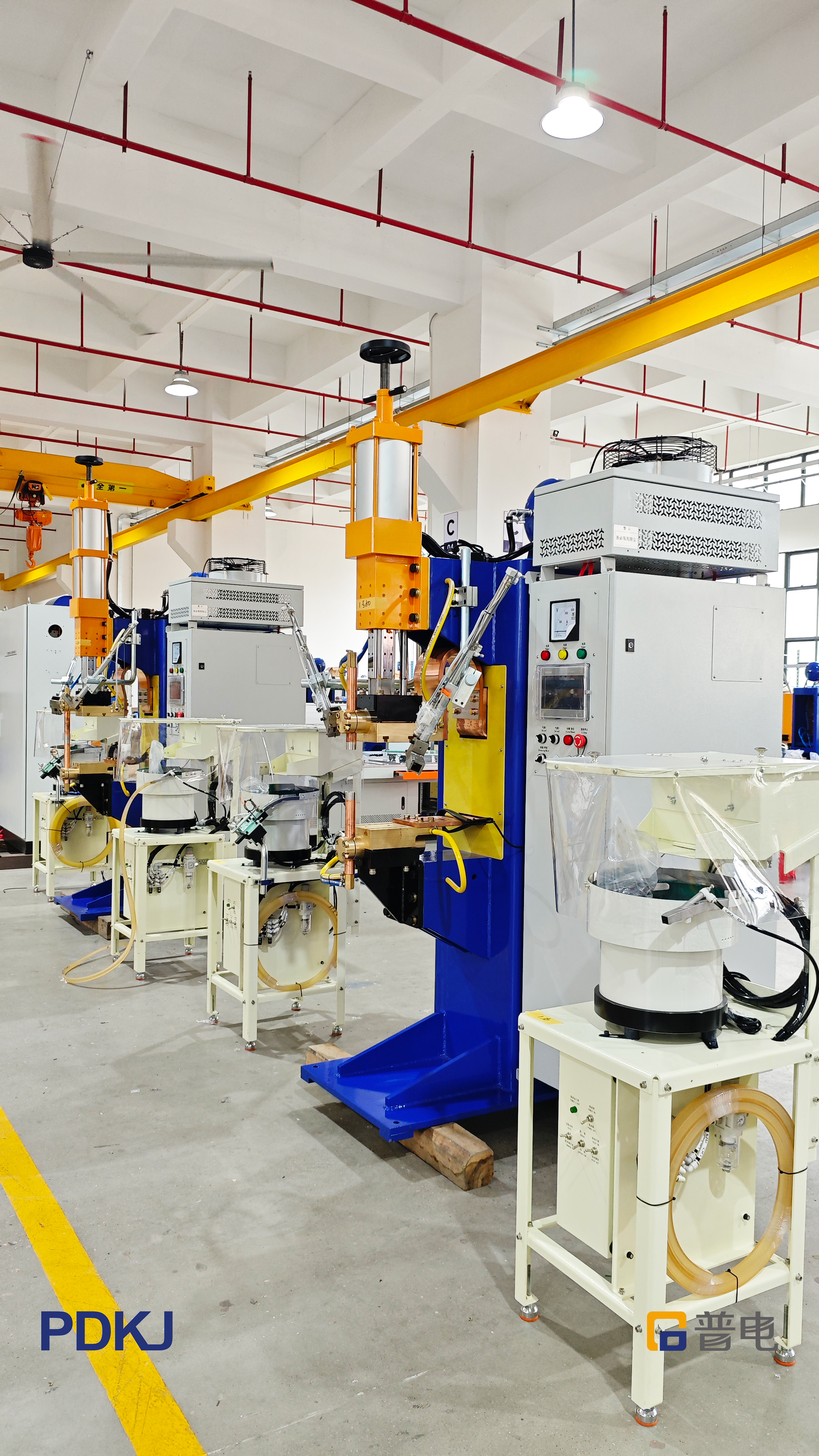

"Capacitor Discharge Spot Welding Machine + Automatic Nut Feeding Machine"

This combination provides a more suitable nut welding solution for the customer's production process.

The welding workflow can be summarized as:

Automatic Nut Feeding → Workpiece Positioning → Capacitor Discharge Welding → Welding Completion → Next Workpiece

By coordinating the welding and nut feeding processes according to the customer's actual workpiece, the solution reduces the need for operators to repeatedly pick up and position nuts. It also makes the production process more standardized.

1. Capacitor Discharge Welding Process for Sheet Metal Applications

The equipment uses capacitor discharge welding technology, completing the welding process within milliseconds and maintaining a relatively small heat-affected area.

For welding 2.0 mm stainless steel sheet metal and nuts, the process can effectively reduce risks such as burn-through, oxidation and discoloration, and sheet metal deformation.

The resulting welds are stable and provide high tensile strength, helping meet the quality requirements of automotive parts manufacturing.

2. Automatic Nut Feeding System for Improved Efficiency

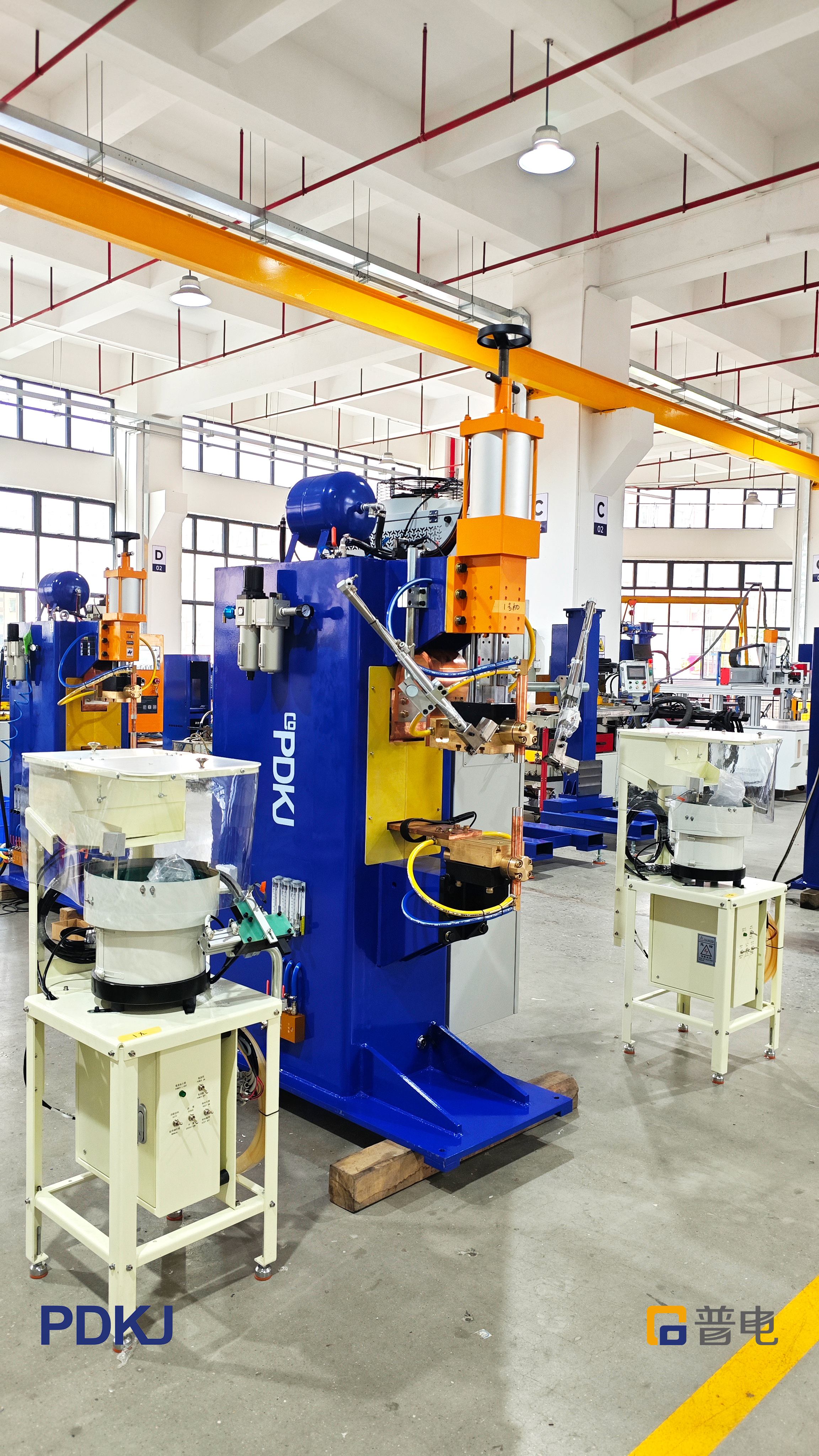

The equipment is equipped with a dedicated automatic nut feeding mechanism. A vibratory bowl feeder sorts and delivers the nuts in an orderly manner for accurate positioning.

This replaces manual nut placement, reduces labor requirements at the workstation, standardizes nut positioning, and helps maintain consistent welding quality during mass production.

3. Digital Control for Continuous Mass Production

The machine features a touch-screen numerical control system that allows precise adjustment of welding parameters and supports the storage of multiple parameter groups.

When switching between different workpiece specifications, the corresponding parameters can be recalled with one click.

The machine is also equipped with an effective cooling system and strong resistance to power fluctuations, supporting stable long-term operation while reducing downtime and maintenance costs.

This makes the equipment suitable for multi-shift mass production.

4. Customized Solutions from a Welding Equipment Manufacturer

As a welding equipment manufacturer, PDKJ can customize electrodes and feeding solutions according to the workpiece specifications.

Before delivery, the equipment undergoes complete parameter adjustment and welding sample verification. After arriving at the customer's workshop, PDKJ engineers complete equipment installation, commissioning, and operator training, helping shorten the preparation period before production.

IV. Equipment Delivery and Production Application

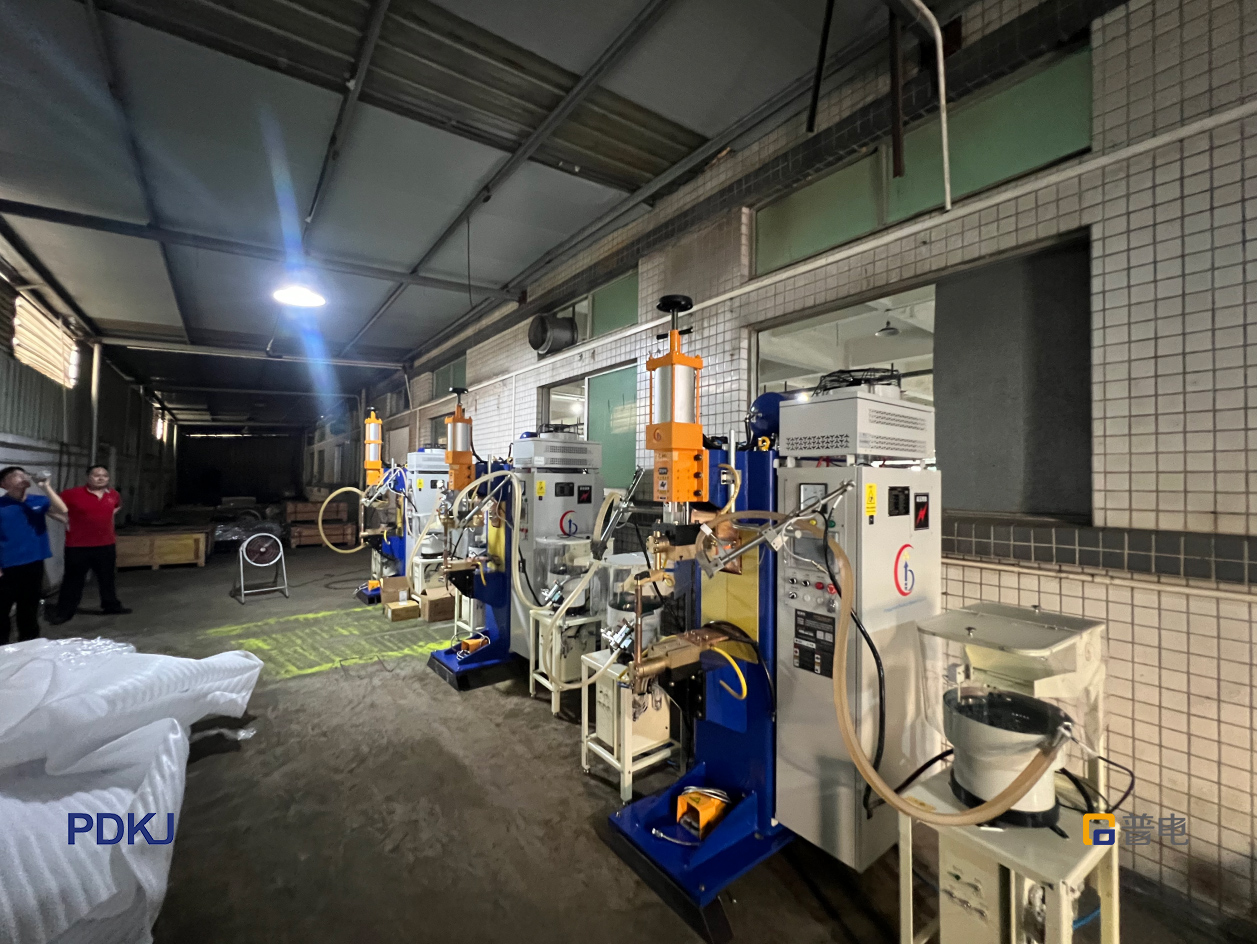

The equipment has now been installed in the customer's production workshop according to the existing production layout.

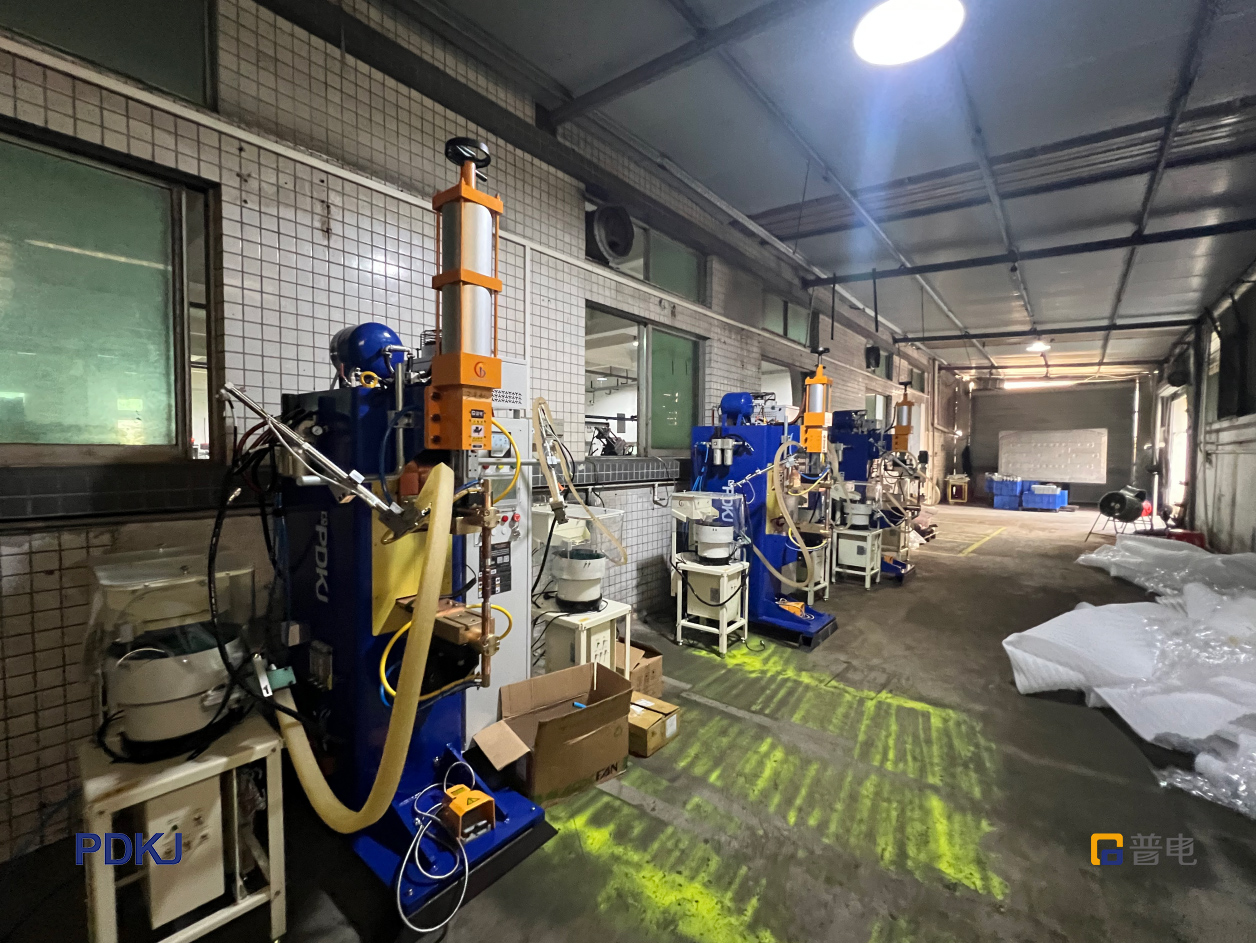

Multiple machines are arranged in an organized production area, with the capacitor discharge spot welding machines and automatic nut feeding systems working together for automotive sheet metal and nut welding.

For PDKJ, equipment delivery is not simply the completion of a sale. More importantly, the equipment needs to enter the customer's actual production environment, match the customer's products and welding processes, and create practical production value.

The successful implementation of this project also demonstrates PDKJ's approach of providing targeted welding equipment and supporting solutions based on specific customer products and production requirements.

PDKJ will continue to focus on the R&D and manufacturing of spot welding machines, resistance welding machines, laser welding machines, and automated welding equipment, providing stable and well-matched welding solutions for metal product manufacturing based on actual production needs.
