PDKJ Vertical Double-Head Spot WelderApplied in Automotive Manufacturing Industry for Welding Front Bulkhead Crossbeams
Recently, PDKJ completed the full-process commissioning and officially delivered a custom-built vertical double-head spot welder to an automotive parts enterprise in Anhui. The machine has been put into production in the customer's workshop for precision spot welding of 1.2mm carbon steel front bulkhead crossbeams. With stable welding performance and high production efficiency, PDKJ once again earned high recognition from this returning customer.
I. Project Background
The Anhui-based customer is a leading domestic automotive parts supplier, providing supporting sheet metal welding assemblies to multiple mainstream automakers with stringent quality control standards.
As a long-standing partner of PDKJ, the customer chose once again to customize a vertical double-head spot welder when expanding production and adding front bulkhead crossbeam welding stations. This decision was based on their long-term trust in PDKJ's equipment quality and service, aiming to meet demands for higher efficiency and greater production stability.
II. Customer Production Pain Points and Core Requirements
Two major challenges the customer faced in production:
1. Efficiency Bottleneck: Single-head welders required multiple clamping operations and repeated parameter adjustments. Each workpiece had to be processed back and forth several times, making output unable to keep pace with automaker delivery schedules.
2. Quality Pain Points: Welding 1.2mm carbon steel thin plates was prone to burn-through and deformation, with occasional cold welds and missed welds. The fluctuating yield rate posed high delivery risks.
Customer Core Requirements: Adapt to welding different parts of the workpiece, enable independent parameter adjustment, improve efficiency, stabilize weld quality, and reduce defect rates.
III. PDKJ Welder Core Advantages
To address the customer's needs, PDKJ's custom vertical double-head spot welder delivers comprehensive optimization in structure, process, and operation—perfectly adapting to front bulkhead crossbeam welding applications:

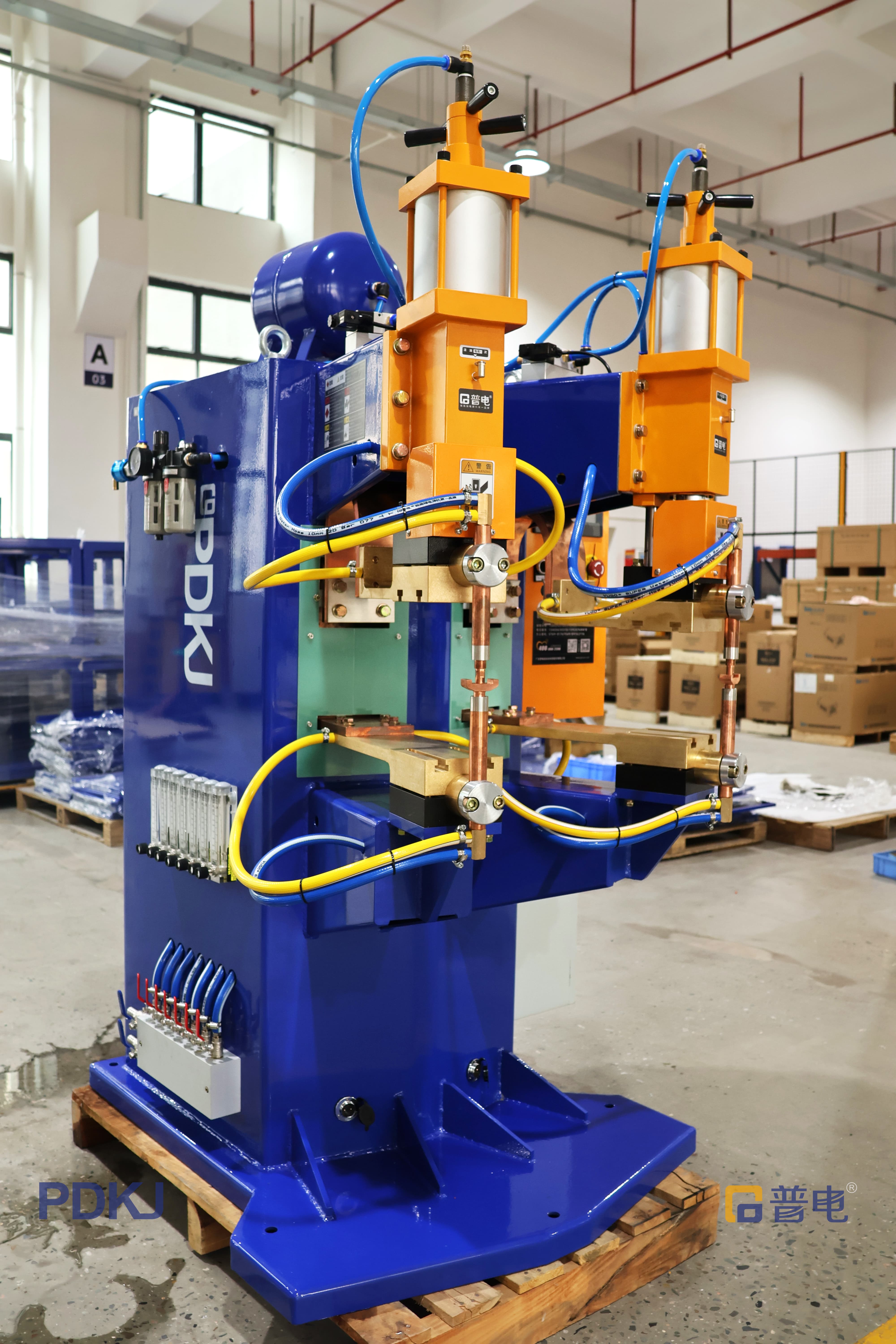

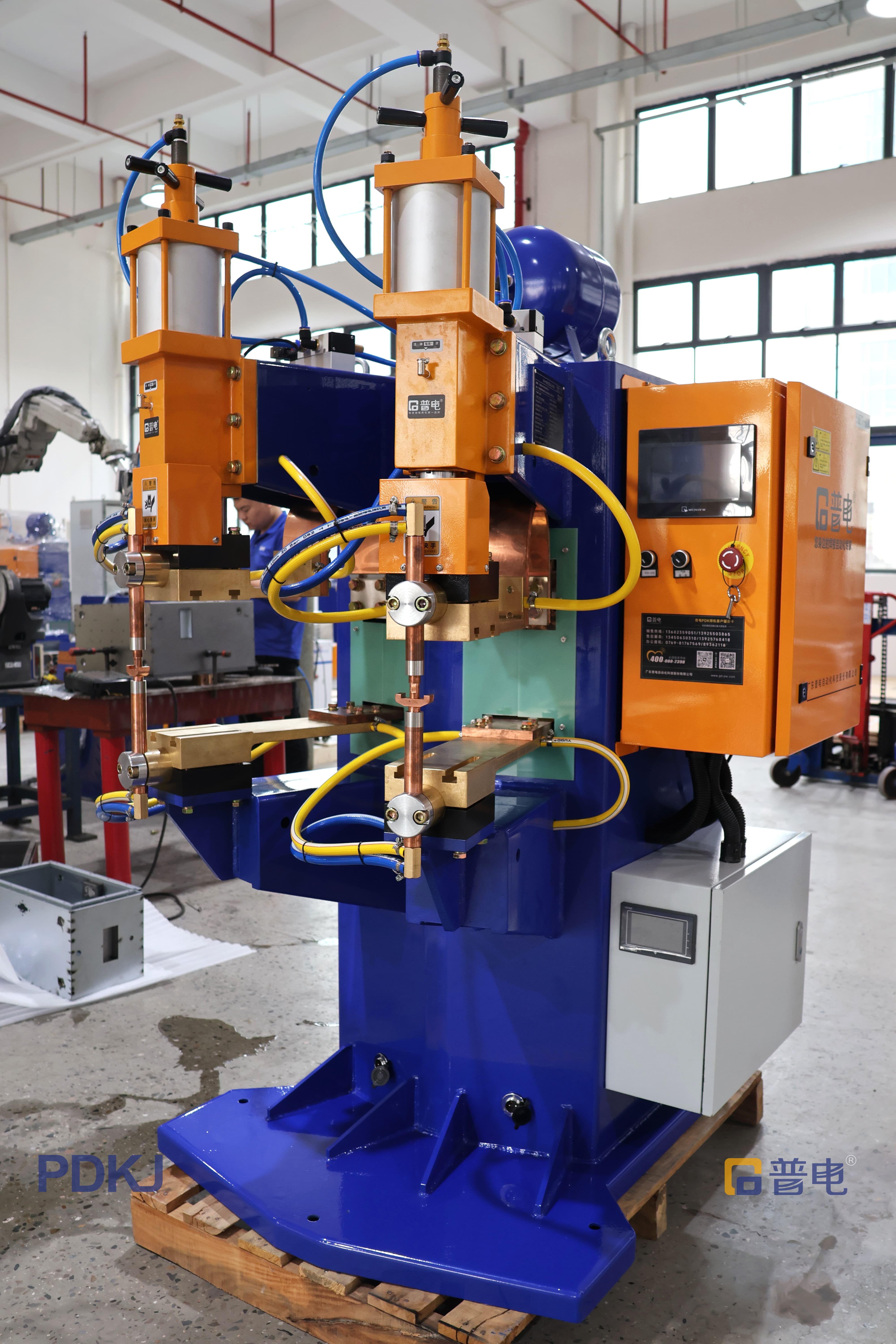

1. Dual Independent Welding Head Design for Diverse Welding Requirements

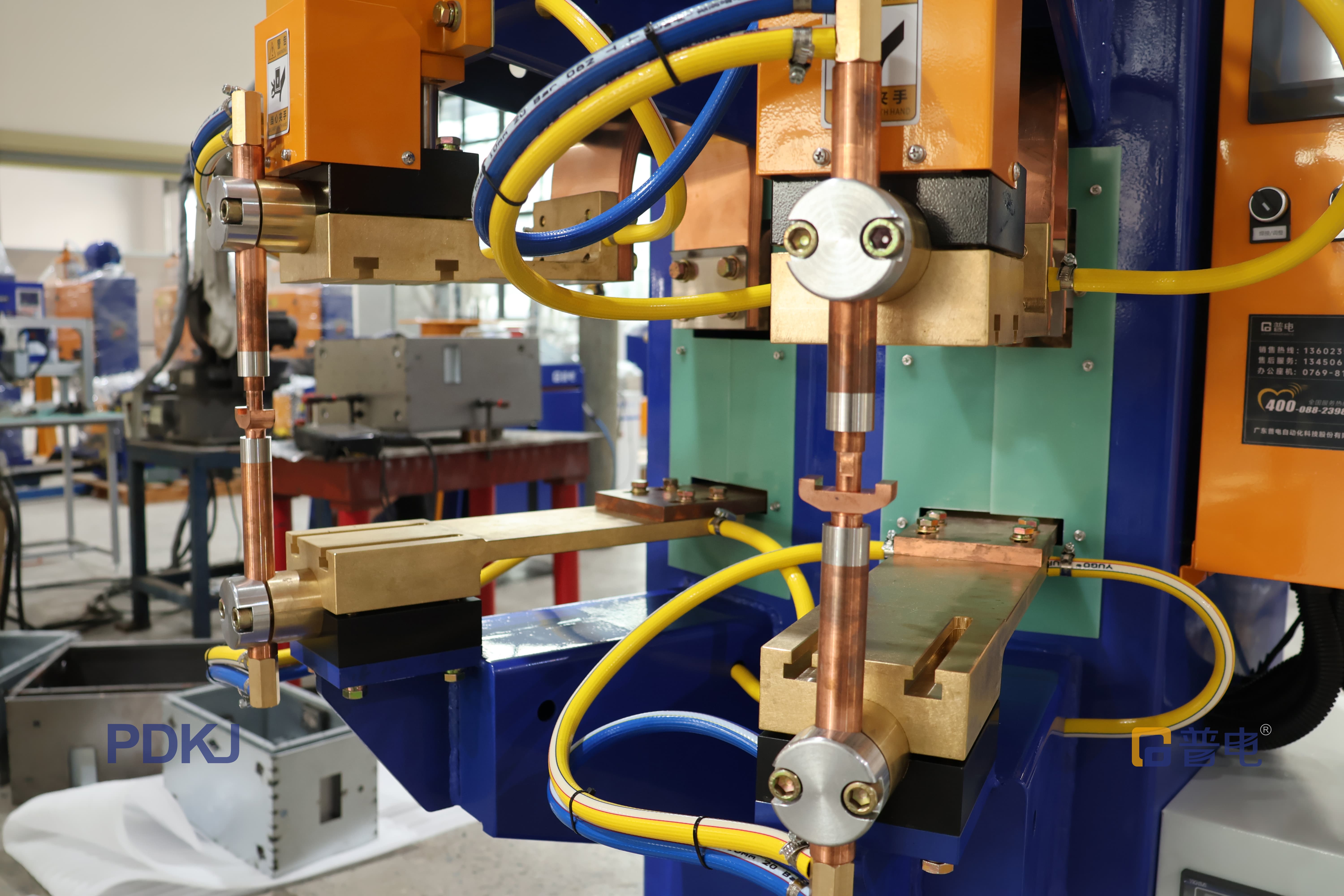

The equipment features two independent pressurizing assemblies with 600mm spacing between welding heads. Each head can be fitted with different electrodes and independently adjusted for air pressure and current, precisely matching the welding process requirements of different workpiece areas. This perfectly solves the pain point of differentiated welding across multiple regions of the same workpiece.
2. Alternating Operation Design for Efficient Single-Person Operation
While one side is welding, the other remains stationary, supporting left-right alternating operation by a single worker without additional labor. This reduces labor costs while eliminating time losses from multiple clamping operations, significantly boosting single-operator workstation productivity.
3. Professional Configuration Ensuring Stable and Reliable Welding
Core configuration includes 2× 160KVA PDKJ custom transformers + 800A controller, delivering stable current output with high control precision. Welding parameters are optimized for 1.2mm carbon steel, effectively preventing burn-through, cold welds, and spatter. Weld strength and consistency fully meet automotive industry standards.

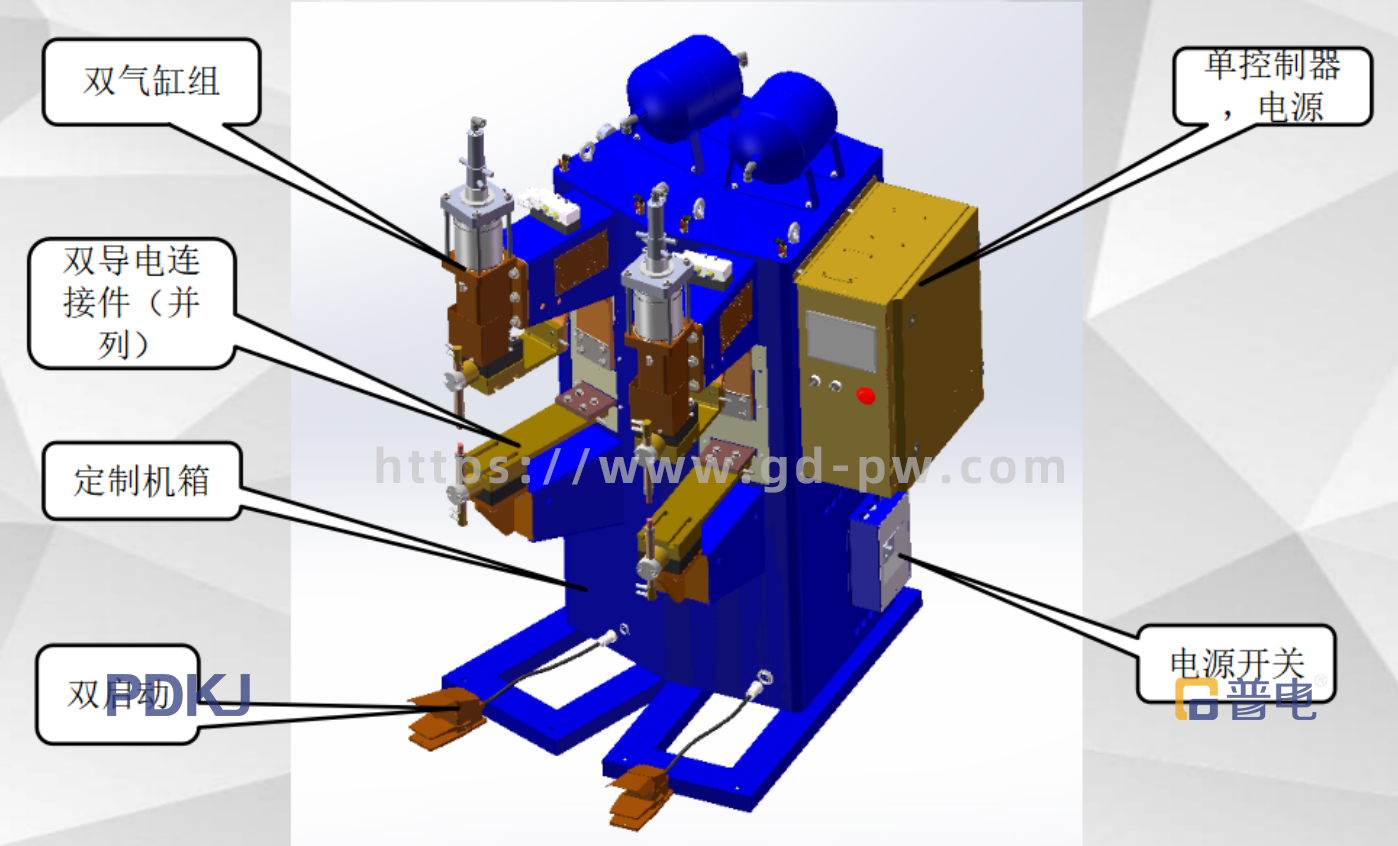

Custom rigid chassis + dual cylinder assembly ensures stable machine structure with high repeat positioning accuracy, significantly reducing workpiece welding deformation and guaranteeing front bulkhead crossbeam dimensional precision.
4. Human-Centric Design with Visible Cost Reduction and Efficiency Gains
Single-controller centralized management enables one-click parameter storage and quick switching. Dual foot-pedal safety activation makes operation easy to learn and master for workers, reducing labor intensity and training costs—adapting to continuous workshop production demands.
5. Full-Process Service for Worry-Free Delivery
Equipment delivery completed in just 20 working days. PDKJ's technical team follows through the entire journey from solution design, manufacturing to on-site commissioning, ensuring rapid equipment deployment. Comprehensive after-sales support with 24-hour response safeguards customer production operations.
IV. Project Results: Significant Performance After Equipment Deployment

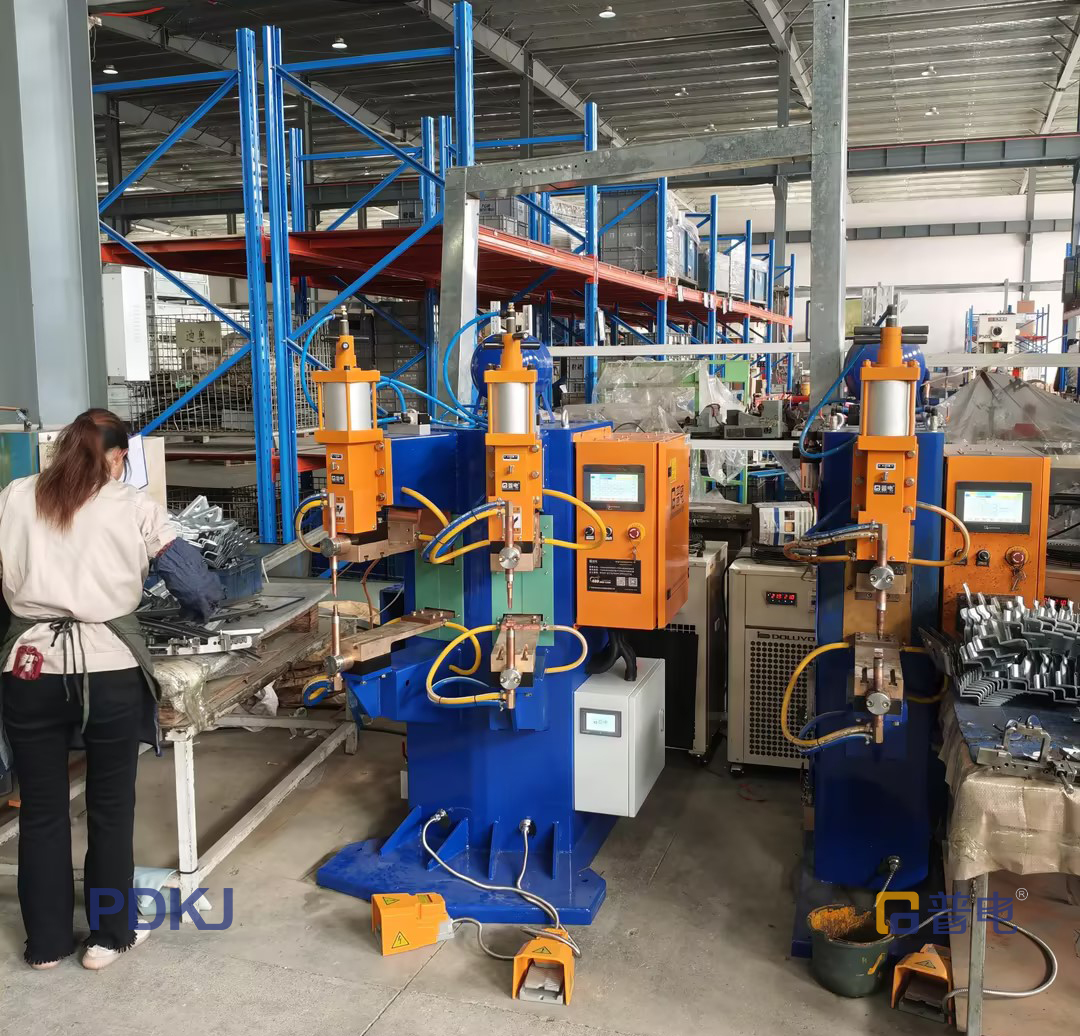

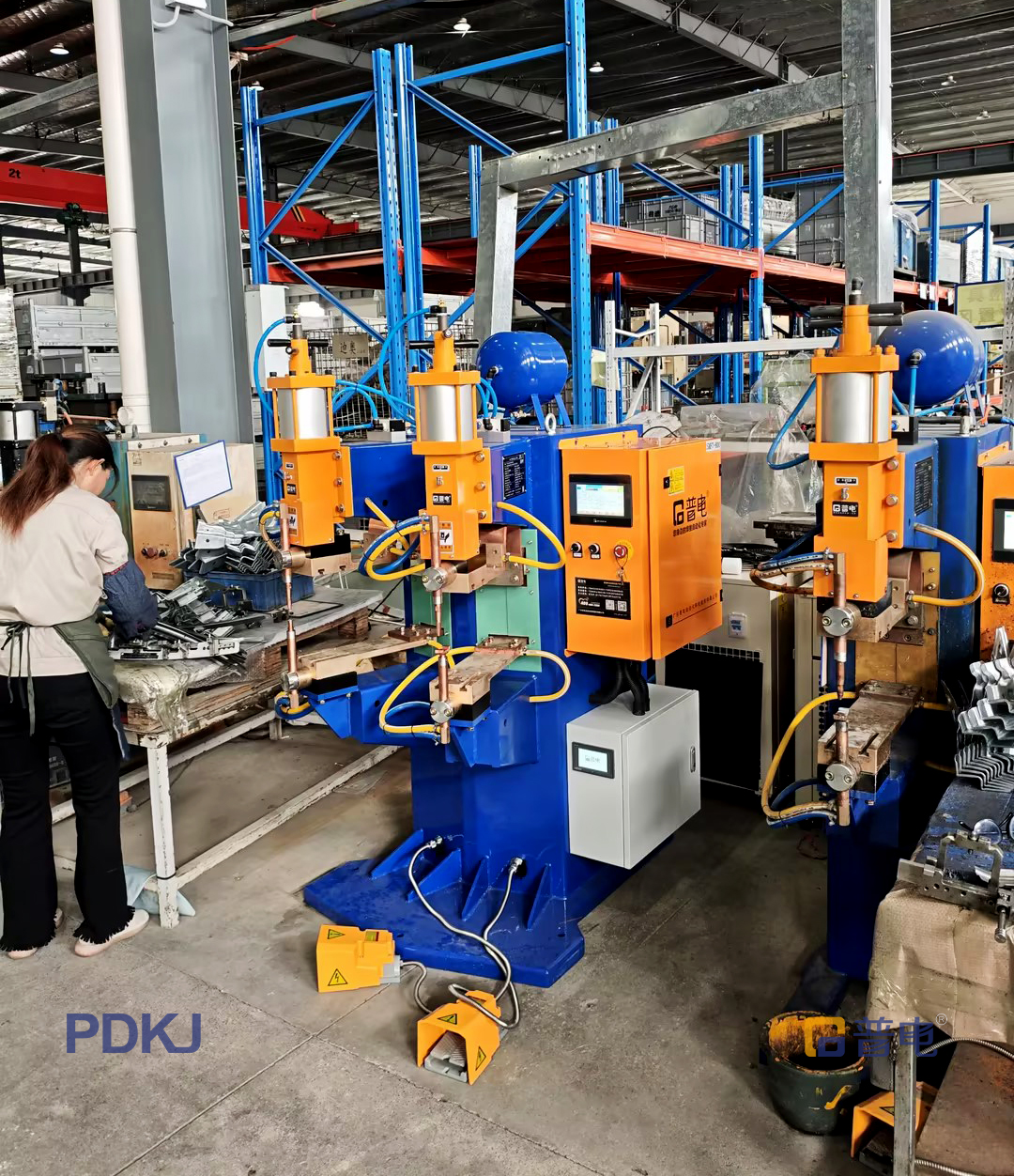

Since the vertical double-head spot welder was officially put into production, the customer's production line has been running stably with all indicators meeting expected targets:
Dramatic Efficiency Gains: With dual welding heads operating alternately, single-operator workstation productivity has nearly doubled compared to the previous single-head equipment—meeting high-volume delivery demands without additional labor.
Quality Excellence: 1.2mm carbon steel front bulkhead crossbeam welding delivers uniform and robust weld spots with no burn-through or cold welds, minimal workpiece deformation, and consistently high yield rates—significantly reducing rework costs.
Process Flexibility: Independent parameter adjustment for both welding heads perfectly adapts to welding requirements of different workpiece areas, substantially enhancing welding process flexibility.
Operational Reliability: The equipment operates reliably with low failure rates, capable of satisfying long-duration continuous production. This effectively minimizes production line downtime and improves overall operational efficiency.
V. Win-Win Cooperation: Make Metal Welding Easy for the World
As a professional welding machine manufacturer deeply rooted in precision welding, PDKJ consistently focuses on customers' actual production needs. We are dedicated to R&D and manufacturing of laser welders, resistance welders, and automated welding equipment. Our products are widely applied in rail transit equipment, new energy storage, intelligent IoT, electronics and electrical appliances, and other industries. We provide customized welding solutions tailored to different workpiece materials, specifications, thicknesses, output volumes, and precision requirements.
Whether you need welding for automotive A/B pillars, high-strength steel/hot-formed steel, chassis subframes, bumper beams, seat frames, or other metal components—whether standard equipment or customized welding solutions—PDKJ is here for you.
We offer one-stop services including welding trials and sampling, solution customization, on-site commissioning, and after-sales support. With reliable equipment, professional technology, and comprehensive service, we help you overcome welding challenges, improve product quality, reduce production costs, and enhance efficiency—safeguarding your precision manufacturing operations.
PDKJ: Your Trusted Welding Automation Expert. We Look Forward to Partnering with You!
