How to Spot Weld?

Can one small weld point hold a part firmly? Yes, if it is done right. Spot welding uses heat, pressure, and timing to join metal sheets. In this guide, you will learn how to prepare parts, set parameters, avoid defects, and choose a suitable machine.

Key Takeaways

● Spot welding works by passing electric current through overlapping metal parts while electrodes apply pressure.

● A clean surface, stable pressure, correct current, and proper weld time all affect weld strength.

● A spot welding machine should match the material, thickness, weld point size, and production volume.

● Low-carbon steel is usually easier to weld than aluminum, copper, or coated metals.

● Stainless steel needs careful heat control to reduce marks and discoloration.

● Fixtures help keep weld points stable during repeated production.

● Electrode wear often causes weak welds, heavy marks, and uneven welding results.

● Test welding is important before batch production, especially for new materials or new part shapes.

What You Need Before You Start Spot Welding

Spot welding looks simple from the outside. Two electrodes press down, current flows, and a weld point forms. The real quality comes from preparation. If the part is dirty, loose, or poorly positioned, even a powerful machine may produce weak welds.

The process works best when two metal parts overlap closely. The electrodes touch both sides, apply force, and send current through the joint. Electrical resistance creates heat at the contact area. That heat forms a weld nugget between the layers. Once it cools under pressure, the parts become joined.

Before you start, check four things: material type, part thickness, electrode condition, and machine capacity. Thin sheet metal, terminals, small components, brackets, wires, nuts, and hardware parts may all need different settings. A precision spot welding machine may suit small parts, while a platform or projection welding system may suit larger workpieces or raised welding points.

You also need a safe and stable workplace. Keep the surface dry. Wear eye protection and gloves. Make sure the workpiece is clamped well. Check the cooling system if the machine uses water cooling. Repeated welding can heat the electrodes fast, so cooling affects both weld quality and electrode life.

Note：Always test weld on scrap material before production, especially when the material, coating, or thickness changes.

How to Spot Weld Step by Step

Learning how to spot weld starts with workpiece preparation. Clean the weld area first. Remove oil, dust, oxide layers, coating residue, and moisture. Even a small layer of dirt can change resistance and reduce weld strength. After cleaning, align the two parts tightly. Gaps between layers can cause spatter, weak welds, or poor nugget formation.

Next, choose the right electrodes. Copper-based electrodes are common because they conduct electricity and move heat away from the surface. The electrode tip should match the weld point size. A worn or dirty tip spreads current unevenly. It can also leave large marks on the part. If the tip is flat, pitted, or mushroomed, clean or dress it before welding.

Then set the main welding parameters. Current controls heat. Welding time controls how long heat is applied. Electrode pressure controls contact. These three settings must work together. Too little current creates a weak weld. Too much current causes burn-through, spatter, or deep marks. Too little pressure creates unstable contact. Too much pressure may reduce heat at the joint.

Place the workpiece between the electrodes. Keep the weld point centered under the tips. If you need many weld points, keep spacing consistent. For repeated parts, use a fixture. It keeps the part stable and reduces operator variation.

Apply pressure before current starts. This stage is often called squeeze time. The electrodes must press the parts together before the weld current flows. After the current stops, keep the pressure for a short hold time. This lets the weld nugget cool and solidify. Releasing too early can weaken the joint.

After the first weld, inspect it. Look for proper indentation, stable position, no heavy spatter, and no serious burn marks. For production parts, use peel testing or sample testing. Change one parameter at a time. This makes troubleshooting easier.

Tip：For repeat orders, record current, time, pressure, electrode type, material thickness, and weld spacing.

How to Set Spot Welding Parameters Correctly

The most important parameters are current, time, and pressure. They decide how much heat reaches the joint and how stable the weld becomes. A good setting creates a solid weld nugget without burning the surface or deforming the part.

Welding current is the main heat source. Thin sheets need controlled current because they heat quickly. Thick parts or highly conductive materials need more energy. Copper and aluminum move heat away fast, so they often need stronger control and suitable electrode design.

Welding time also matters. Longer time does not always mean a stronger weld. If the time is too short, the weld nugget may not form. If it is too long, the surface may overheat. You may see deep dents, color change, sticking, or spatter.

Electrode pressure affects contact resistance. Low pressure may cause sparks and unstable welds. High pressure can flatten the contact too much and reduce heat at the weld area. The best pressure depends on part thickness, material hardness, electrode shape, and weld point size.

Cooling is easy to overlook. During continuous spot welding, electrodes absorb heat again and again. If they get too hot, weld points become less stable. Cooling also helps extend electrode life and reduce surface marks.

How to Spot Weld Different Materials

Low-carbon steel is one of the easiest materials for spot welding. It has good electrical resistance and forms stable weld nuggets when the surface is clean. For general sheet metal work, start with moderate current, stable pressure, and short test cycles.

Stainless steel needs more care. It can show discoloration and heat marks if the current or time is too high. Use clean electrodes and keep heat input under control. For visible parts, test the surface appearance before full production. A stable spot welding machine helps reduce variation across multiple weld points.

Galvanized steel brings another challenge. The zinc coating affects heat, contact, and weld appearance. It may also create fumes during welding. Good ventilation is important. Electrode maintenance is also important because coating residue can build up on the tip.

Aluminum and copper are more difficult because they conduct heat quickly. They often need higher current, shorter weld time, and accurate pressure. Surface cleaning is critical. Any oxide layer can reduce weld quality. For these materials, sample testing is not optional. It is part of process setup.

Note：Highly conductive metals need more than high power; they need stable control, clean surfaces, and suitable electrodes.

How to Improve Spot Welding Quality and Consistency

Good weld quality is not only about the first successful weld. It is about repeating the same result across many parts. This is where process control becomes important.

Fixtures are one of the simplest ways to improve consistency. They hold the workpiece in the same position every time. This is useful for terminals, brackets, hinges, cabinets, panels, and other repeated parts. A good fixture also helps control weld spacing and reduces operator fatigue.

Electrode care is another major factor. Electrodes wear during use. Their tips may flatten, oxidize, or collect coating residue. Once this happens, current may spread across a wider area. The result can be weak welds, larger marks, or uneven spots. Build electrode cleaning and dressing into the production routine.

You should also control surface marks. Some parts need a clean visible surface. Others only need strength. If appearance matters, adjust electrode shape, current, time, and pressure carefully. For large sheet metal parts, a stable platform and proper part support can reduce deformation.

Parameter records are useful for repeat jobs. Keep a simple log for each material and part type. Include material, thickness, overlap size, electrode tip, current, time, pressure, and test result. This makes future setup faster and reduces trial-and-error.

Tip：If weld quality changes during one shift, inspect electrodes before changing machine settings.

Common Spot Welding Problems and Fixes

Weak or loose welds are the most common problem. They often come from low current, short weld time, dirty surfaces, poor pressure, or gaps between parts. Start by cleaning the material and checking fit-up. Then increase current or time in small steps. Do not raise every setting at once.

Excessive spatter usually means the process is unstable. The current may be too high. The parts may not touch well. The electrode may be worn. The surface may have oil or coating residue. Reduce current slightly, improve clamping, and clean the electrode tip.

Burn marks, discoloration, or heavy indentation mean too much heat or pressure reached the surface. Shorten weld time first. Then check electrode size and cooling. A small electrode tip may concentrate too much heat. Poor cooling can also make marks worse during long production runs.

Inconsistent weld points often appear during batch work. The first few parts may look good, then quality drops. This usually points to electrode wear, unstable positioning, heat buildup, or fixture movement. Stop and inspect the process instead of pushing production forward.

When to Use Spot Welding Instead of Other Welding Methods

Use spot welding when parts overlap and need fast, repeatable weld points. It is a strong choice for thin metal sheets, electrical terminals, brackets, wire parts, cabinets, frames, and hardware assemblies. It does not need filler wire, and it can be fast in production.

Projection welding is better when the part has raised points, nuts, studs, or designed contact areas. In this process, current concentrates at the projection. This helps create controlled welds in specific positions. It is common for fasteners and structural hardware parts.

Laser welding is better for continuous seams, complex paths, or fine visible joints. Spot welding creates separate weld points. Laser welding can create longer seams and smaller heat-affected zones. The right choice depends on the joint design, part shape, surface needs, and production volume.

Spot welding remains useful because it is direct, efficient, and repeatable. When parts are designed for it, the process can reduce handling time and improve output.

How to Choose a Spot Welding Machine

The right spot welding machine should match the part, not just the budget. Start with workpiece size. Small components may need a compact precision machine. Large panels may need a platform structure, longer welding reach, or better workpiece support. Nuts, studs, and raised points may need projection welding.

Next, check current control. Stable current helps create consistent weld nuggets. Medium-frequency inverter DC technology is often used when manufacturers need controlled output, stable performance, and better repeatability. This is helpful for stainless steel, galvanized sheet, aluminum plate, wires, and mixed production needs.

Pressure control is also important. A machine should apply stable force before, during, and after current flow. Pneumatic or servo-assisted systems can help improve repeatability. Electrode stroke, throat depth, table size, and fixture compatibility also matter.

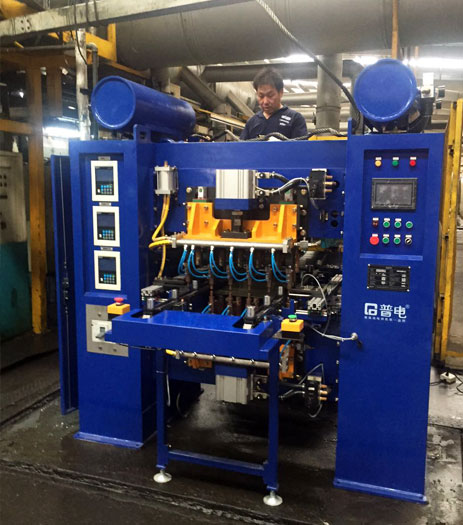

For production use, customization may save time. Custom fixtures, special electrode systems, multi-point welding heads, and automated positioning can improve output. They also reduce manual variation. If the product has a complex shape, sample testing helps confirm the right machine structure and parameter range.

Conclusion

Spot welding is easier when each step is controlled. Clean parts, stable pressure, proper current, and good electrodes all support stronger welds. PDKJ provides spot welding machines, projection welding options, fixtures, and custom welding solutions. Its equipment helps users improve weld consistency, production efficiency, and process stability.

FAQS

Q: What is spot welding?

A: Spot welding joins overlapping metal parts using pressure and electric current.

Q: How do you use a spot welding machine?

A: Clean parts, align them, set current, apply pressure, weld, then inspect.

Q: Why are my spot welding points weak?

A: Weak spot welding may come from dirt, low current, or poor pressure.

Q: Is a spot welding machine expensive?

A: Price depends on power, control system, structure, and customization needs.

Q: What is the advantage of spot welding?

A: It is fast, repeatable, and needs no filler material.

Q: Is spot welding better than laser welding?

A: It is better for repeated weld points, not continuous seams.
