Production Line Integration Guide: How To Connect Spot Welding Machines And Laser Welding Machines with Automatic Feeding Systems?
Views: 0 Author: Site Editor Publish Time: 2026-08-04 Origin: Site
With the continuous development of smart manufacturing, more and more companies are integrating spot welding machines, laser welding machines, automatic feeding systems, conveyor lines, and robotic systems to achieve continuous and automated production.
Compared with traditional manual loading and unloading methods, integrating welding equipment with automatic feeding systems can reduce labor requirements, improve production consistency, and minimize operational errors. This makes it especially suitable for high-volume manufacturing applications.
However, during actual automation projects, many manufacturers face questions such as:
How should welding machines match automatic feeding systems?
How can feeding and welding processes work together efficiently?
How should equipment signals and production cycles be coordinated?
How can automated welding lines maintain stable operation?
This article explains the key points for integrating spot welding machines and laser welding machines with automatic feeding lines from a practical manufacturing perspective.
Ⅰ Why Integrate Welding Machines with Automatic Feeding Systems?
Traditional welding production usually relies on manual operations:
This creates a continuous and efficient production process.
1. Improve Production Efficiency
Automatic feeding systems can transport workpieces according to preset production cycles, reducing waiting time and improving equipment utilization.
2. Improve Welding Consistency
Automatic feeding combined with positioning systems ensures that workpieces enter the welding area with stable positioning, reducing variations caused by manual placement.
3. Reduce Labor Requirements
Operators mainly focus on equipment monitoring, material replenishment, and production management instead of repetitive loading and unloading tasks.
Ⅱ How Are Spot Welding Machines Integrated with Automatic Feeding Lines?
Spot welding machines are widely used in industries such as metal products, automotive components, home appliances, electronics, and battery structures.
In automated production lines, spot welding machines are commonly connected with feeding systems through the following methods.

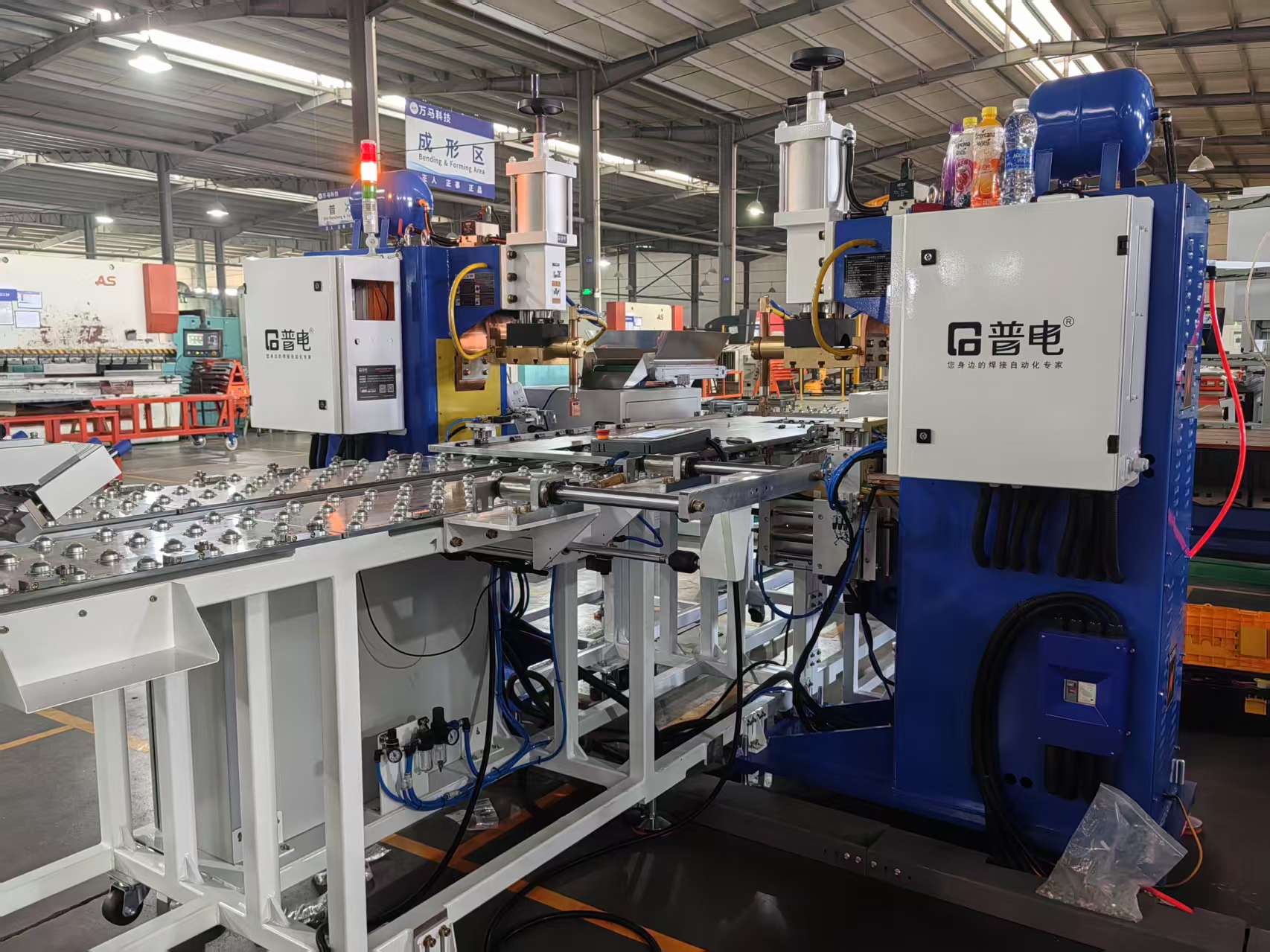

1. Conveyor-Based Automatic Feeding
This method is suitable for:
Standardized products;
Large-volume production;
Continuous welding processes.
The working process:
The conveyor transfers the workpiece to the welding position;
The positioning mechanism fixes the product;
The spot welding machine completes the welding process;
The finished product moves to the next process automatically.
This solution is suitable for products requiring stable production cycles.
2. Robotic or Mechanical Arm Loading
For complex workpieces requiring higher positioning accuracy, robots or mechanical arms can be used for automatic loading.
For high-output production, manufacturers can design multi-station welding solutions.
Example:
Station 1: Automatic feeding;
Station 2: Product positioning;
Station 3: Multi-point or dual-gun welding;
Station 4: Inspection and unloading.
This design improves overall production efficiency.
Ⅲ How Are Laser Welding Machines Integrated with Automatic Feeding Systems?
Laser welding provides advantages such as high welding speed, low heat input, small deformation, and excellent weld appearance. It is widely used in precision manufacturing and automated production.
A laser welding automation system usually includes:
1. Automatic Feeding Mechanism
Depending on product characteristics, different feeding methods can be selected:
Belt conveyors;
Chain conveyors;
Roller conveyors;
Linear module feeding systems;
Robotic loading systems.
Different workpieces require different feeding solutions.
2. Precision Positioning Systems
Laser welding requires high welding position accuracy. Therefore, automated systems often include:
Positioning fixtures;
Pneumatic clamps;
CCD vision positioning;
Laser seam tracking systems.
These systems ensure that the workpiece remains stable during welding.
3. Robot Laser Welding Integration
For complex structural components, a robot laser welding system can be used.
This solution is suitable for automotive parts, battery structures, and sheet metal components.
Ⅳ Key Factors When Integrating Welding Machines with Automatic Feeding Lines
Automation integration is not simply connecting equipment together. Multiple factors must be considered.
1. Match Product Size with Feeding Method
Different products have different sizes, weights, and structures.
For example:
Small precision components:
Suitable for precision conveyors and vision positioning systems.
Large sheet metal components:
Suitable for robotic handling or heavy-duty conveyors.
2. Match Production Cycle Time
The welding speed, feeding speed, and loading/unloading time must work together.
If feeding is too fast:
The welding machine cannot process in time;
Production waiting increases.
If feeding is too slow:
Equipment utilization decreases.
Proper cycle planning is essential for stable automated production.
3. Design Proper Fixtures
Fixtures play an important role in automated welding.
A suitable fixture should provide:
Accurate positioning;
Stable holding;
Easy loading and unloading;
Long-term durability.
Poor fixture design can affect welding quality and production efficiency.
4. Ensure Communication Between Systems
The welding machine, feeding line, and robot system need coordinated communication.
Common communication methods include:
PLC control;
IO signal communication;
Industrial communication networks.
The system can achieve:
Feeding completed → Welding starts;
Welding completed → Feeding continues;
Abnormal condition → Automatic alarm and stop.
Ⅴ Industries Suitable for Welding Equipment with Automatic Feeding Lines
Automated welding systems are widely used in various industries.
New Energy Industry
Applications:
Battery enclosures;
Energy storage cabinets;
Battery structural components.
Requirements:
High consistency and efficient mass production.
Automotive Manufacturing
Applications:
Automotive components;
Metal brackets;
Structural parts.
Requirements:
Stable welding quality and automated production capacity.
Sheet Metal Fabrication
Applications:
Electrical cabinets;
Metal housings;
Framework structures.
Requirements:
Reduced labor input and improved production efficiency.
Home Appliance and Electronics Industry
Applications:
Metal housings;
Precision components;
Hardware parts.
Requirements:
High accuracy and low deformation welding.
Ⅵ How to Select the Right Equipment for an Automated Welding Project?
When planning an automatic feeding welding production line, companies should not only consider equipment price but also evaluate:
Product structure;
Material type;
Welding process requirements;
Production cycle;
Automation level;
Future expansion needs.
Different products require different equipment combinations.
For example:
Standard metal products:
Suitable for automated spot welding solutions.
High-appearance precision products:
Suitable for laser welding solutions.
Complex structures with large production volumes:
Suitable for robot laser welding systems.
Conclusion
Integrating spot welding machines and laser welding machines with automatic feeding systems is an important step for manufacturers seeking higher efficiency and automation upgrades. By properly matching feeding systems, positioning mechanisms, control systems, and welding equipment, companies can achieve stable continuous production, improve product consistency, and reduce labor costs.
As a professional spot welding machine and laser welding machine manufacturer, PDKJ provides spot welding equipment, laser welding machines, robot welding systems, and customized automated welding solutions. Based on customers' products, production cycles, and automation requirements, PDKJ offers welding process testing, equipment selection, and complete production line integration services to help manufacturers achieve efficient and reliable smart welding production.
