How To Choose The Right Laser Welding Machine? A Complete Guide To Materials, Thickness, Power, And Applications

As laser welding technology becomes increasingly common in hardware manufacturing, sheet metal fabrication, home appliances, new energy, electronics, automotive components, and other industries, more manufacturers are choosing laser welding machines to improve welding efficiency and product quality.

However, when purchasing laser welding equipment, many companies focus mainly on questions such as “How many watts do I need?” or “How much does the machine cost?” In practice, laser power and price are only part of the selection process. Material type, workpiece thickness, joint structure, production volume, welding speed, and automation requirements all affect equipment selection.

Choosing the right laser welding machine means matching the equipment to the actual production requirements.

1. Choose the Laser Welding Machine Based on Material and Workpiece Thickness

The first step in selecting a laser welding machine is to identify the material and thickness of the workpiece. Common laser welding materials include stainless steel, carbon steel, galvanized sheet, aluminum alloy, copper, copper alloys, and other metals.

Different metals have different laser absorption rates, thermal conductivity, and welding characteristics. Stainless steel and carbon steel, for example, are widely used in laser welding applications, while aluminum and copper typically require more attention to laser power, process parameters, and welding conditions because of their high reflectivity and thermal conductivity.

After confirming the material, determine the workpiece thickness. The welding requirements for a 1 mm sheet are very different from those for a 5 mm plate, even when the material is the same. Thin sheet welding generally requires better control of heat input to reduce burn-through and deformation, while thicker materials require greater attention to penetration, welding speed, and whether filler wire is necessary.

Therefore, laser welding machine power should never be selected based on material thickness alone. A proper selection should consider material + thickness + joint type + welding speed + welding requirements.

2. Choose the Equipment Based on Weld Structure and Production Method

The weld structure is another important factor when selecting laser welding equipment. For common straight welds such as sheet metal joints, cabinets, frames, and enclosures, a conventional laser welding machine may be sufficient. For products with internal corners, external corners, and complex positions, the welding head and wobble function should be considered.

If the workpiece contains complex curves or requires repeated welding along fixed paths, a robotic laser welding system can be considered. The robot can follow programmed welding paths and repeat the same process with consistent positioning.

The production method should also determine whether to choose a handheld laser welding machine or robotic laser welding machine.

A handheld laser welder provides greater flexibility and is generally suitable for multi-product, small-batch production, frequent product changes, and workpieces with varying welding positions. A robotic laser welding machine is better suited to standardized products, higher production volumes, fixed welding paths, and applications requiring consistent production cycles.

Neither option is universally better. The right choice depends on the company's production requirements.

3. How Do You Choose the Right Laser Welding Power?

Laser power is one of the most frequently discussed specifications when purchasing a laser welding machine. However, it should not simply be understood as “higher power means better welding.”

For example, a 2 mm stainless steel workpiece, 2 mm carbon steel sheet, 2 mm aluminum alloy, and 2 mm galvanized sheet may require completely different welding parameters and process conditions.

Laser power should therefore be selected according to:

• Material type

• Material thickness

• Joint structure

• Welding speed

• Filler wire requirements

• Surface appearance requirements

• Required penetration

When consulting a manufacturer, instead of simply asking whether they have a 2,000W or 3,000W machine, it is better to provide the material, thickness, welding position, weld photos, and target welding speed.

If actual workpieces can be provided for testing, the accuracy of equipment selection can be improved significantly.

The most important question is not simply how much laser power the machine has, but whether it can reliably meet the actual production requirements.

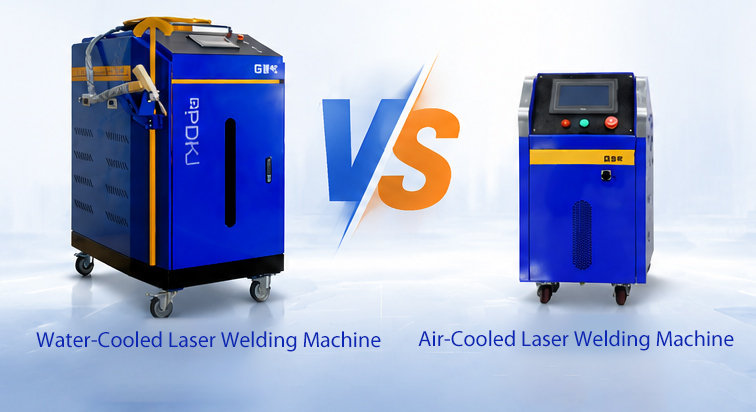

4. How to Choose Between Air-Cooled, Water-Cooled, and Wire-Feed Laser Welding Machines?

Laser welding machines commonly use air cooling or water cooling.

Air-cooled laser welding machines generally feature a compact design and convenient mobility. They are suitable for hardware fabrication, sheet metal processing, small-batch production, maintenance work, and applications where equipment flexibility is important.

Water-cooled laser welding machines use a circulating cooling system for heat dissipation and are generally more suitable for long operating hours, continuous production, and applications with higher production cycles.

There is no absolute winner between air cooling and water cooling. The appropriate solution depends on laser power, continuous operating time, production environment, and application requirements.

Whether a wire-feed laser welding machine is required depends mainly on the workpiece gap and weld requirements. When workpieces are accurately fitted and the joint gap is small, filler-free laser welding may be sufficient. When there is a certain gap or additional weld reinforcement is required, an automatic wire-feed laser welding machine may be more suitable.

5. Don't Focus Only on Equipment Price—Consider the Total Cost

The purchase price of a laser welding machine is only one part of the total cost.

Manufacturers should also consider:

• Labor costs

• Shielding gas consumption

• Consumables

• Maintenance costs

• Energy consumption

• Equipment downtime

• Production efficiency

• Future automation upgrades

A machine with a lower purchase price may not necessarily result in lower production costs. If welding speed is slow, labor requirements are high, or maintenance is frequent, the actual operating cost may be higher over time.

Therefore, laser welding equipment should be evaluated based on:

Equipment investment + labor cost + operating cost + maintenance cost + production efficiency

For high-volume manufacturers, the potential for future automation and production-line integration should also be considered.

6. Why Should You Test Actual Workpieces Before Buying a Laser Welding Machine?

Actual welding tests are an important part of laser welding machine selection.

Laser welding has strong process adaptability requirements. The same laser power can produce different results depending on the material, thickness, joint structure, and welding position.

Before purchasing equipment, it is recommended to conduct welding tests using actual workpieces or samples.

The test should evaluate:

• Weld penetration

• Weld formation

• Welding speed

• Burn-through

• Workpiece deformation

• Surface discoloration

• Weld consistency

• Need for filler wire

• Post-welding grinding requirements

For mass production, it is also important to measure the welding time per workpiece and determine whether the machine can meet the required production cycle.

Actual workpiece testing provides much more practical information than simply comparing equipment specifications.

7. A Practical Laser Welding Machine Selection Process

When selecting laser welding equipment, manufacturers can follow this sequence:

Material → Thickness → Weld Structure → Production Volume → Welding Speed → Automation Level → Laser Power → Cooling Method → Wire Feeding Requirements → Actual Welding Test

For small-batch, multi-product production with frequent product changes, a handheld laser welding machine may be a suitable choice.

For standardized products with high production volumes and fixed welding paths, a robotic laser welding machine may provide better consistency and automation.

If the machine needs to be moved frequently, an air-cooled laser welding solution can be considered. For long-duration continuous production, a water-cooled system may be more appropriate.

The final equipment configuration should always be confirmed through actual welding tests.

8. PDKJ Laser Welding Machines: Equipment Selection Based on Your Actual Workpiece

As a professional laser welding machine manufacturer, PDKJ provides welding solutions based on material, workpiece thickness, weld structure, production volume, welding speed, and automation requirements.

Our product range covers handheld laser welding machines, air-cooled laser welding machines, water-cooled laser welding machines, automatic wire-feed laser welding machines, and robotic laser welding systems for different production applications.

If you are selecting a laser welding machine, there is no need to start by worrying about “how many watts” or “how much does it cost.” Provide your workpiece photos, material, thickness, or actual samples, and PDKJ can provide free welding process evaluation and sample testing, then recommend a suitable equipment and process solution based on the actual welding results.

This approach can help manufacturers reduce equipment selection risks, avoid unnecessary investment, and find a laser welding solution that better matches their actual production requirements.
