Standard spot welding machines can meet many conventional welding requirements. However, when a product involves a large number of welding points, complex structures, difficult welding positions, strict production cycle requirements, or automated loading and unloading, a standard machine may not be enough.
In these situations, manufacturers often consider a custom resistance welding machine.
However, customizing a resistance welding machine is not simply a matter of adding a few electrodes or changing the machine dimensions. The workpiece structure, welding process, power supply, welding fixture, positioning system, automation, acceptance criteria, and after-sales service can all affect the final equipment performance.
Therefore, before starting a custom resistance welding machine project, manufacturers should complete a comprehensive evaluation.
1. Start With the Workpiece, Not the Machine
The actual workpiece is the foundation of a custom resistance welding machine project.
Manufacturers should first provide accurate information about the product, including:
Workpiece material
Workpiece dimensions
Material thickness
Product structure
Number of material layers
Number of welding points
Welding point locations
Welding direction
Product tolerances
Monthly or annual production volume
If possible, providing physical samples, product drawings, or 3D files can help the welding equipment manufacturer evaluate whether the electrodes can reach the required welding points and whether the workpiece is suitable for automated positioning.
For irregular parts, deep-cavity components, or workpieces with limited welding space, electrode accessibility is particularly important.
A workpiece may be theoretically suitable for resistance welding, but if the electrodes cannot reach the required welding positions, the machine structure may need to be redesigned.
2. Define the Resistance Welding Process
After evaluating the workpiece, the next step is to determine the welding process.
Resistance welding generally involves the coordinated control of:
Welding current + Welding time + Electrode pressure + Welding sequence + Electrode configuration
Different materials and thicknesses require different welding parameters.
Even when the material is the same, changes in workpiece structure or welding position may require different process settings.
The following factors should be confirmed during project evaluation.
Weld Nugget Requirements
If the product has specific weld strength requirements, actual sample testing should be performed rather than relying only on equipment specifications.
Number of Welding Points
A product with only a few weld points has very different equipment requirements from a product requiring dozens or hundreds of welds.
Welding Sequence
Some products require welding in a specific sequence to reduce deformation or maintain positioning accuracy.
Number of Material Layers
When two, three, or more layers of metal are welded together, current distribution, material thickness, and electrode pressure need to be evaluated carefully.
3. Evaluate Production Cycle and Capacity
A custom welding machine ultimately needs to serve the production process.
Therefore, it is not enough to determine whether the machine can weld the workpiece. Manufacturers also need to determine:
How many finished products can the machine produce within the required production cycle?
Important information includes:
Daily production volume
Monthly production volume
Number of welding points per product
Welding time per point
Loading and unloading time
Target cycle time
Working hours per shift
Required equipment utilization
For example, two products may both require 20 welding points, but if one product must be completed every minute while the other requires five minutes, their equipment configurations can be significantly different.
The target production cycle should therefore be established before the machine structure is finalized.
4. Evaluate the Welding Fixture Separately
For a custom resistance welding machine, the fixture is much more than a simple workpiece holder.
It may need to perform several functions:
Positioning + Clamping + Supporting + Assisting the Welding Process
The fixture design should consider:
How the workpiece is loaded
How the workpiece is positioned
Whether quick positioning is required
Whether pneumatic clamping is required
Whether the workpiece may move during welding
Whether the finished product can be removed easily
Whether mistake-proofing is required
Whether product dimensional tolerances need to be accommodated
For manually loaded equipment, the fixture should also provide sufficient operating space.
For automated loading and unloading, the fixture must be coordinated with the robot, mechanical handling system, or other automation equipment.
5. Evaluate Electrode Configuration and Welding Accessibility
The electrode is one of the key components directly involved in resistance welding.
For custom equipment, the electrode shape, length, direction, and mounting method should be designed according to the welding point locations.
Key questions include:
Can the electrode reach every required welding point?
Can the upper and lower electrodes align correctly?
Is there any interference between electrodes and the workpiece?
Does the workpiece structure restrict electrode movement?
Are special electrodes required?
Can electrodes be replaced and dressed conveniently?
These issues become particularly important for deep cavities, bent parts, narrow spaces, or densely distributed welding points.
The electrode structure should therefore be evaluated during the equipment design stage rather than after the machine has already been built.
6. Select the Appropriate Resistance Welding Power System
Resistance welding equipment is available in different configurations.
Depending on the application, manufacturers may evaluate:
AC resistance welding
Medium frequency inverter resistance welding
Capacitor discharge spot welding
Multi-point resistance welding systems
Automated resistance welding equipment
The appropriate system depends on the material, thickness, number of welding points, welding cycle, and production method.
For example, medium frequency inverter resistance welding can be considered for high-volume production, multi-point welding, and applications requiring automated process control.
Capacitor discharge spot welding can be considered for certain small metal components, thin materials, and precision welding applications depending on the actual process requirements.
The equipment type should be selected according to the actual application rather than simply according to machine power or purchase price.
7. Determine the Required Level of Automation
Automation is one of the most important factors affecting the configuration and cost of a custom welding machine.
Manufacturers should determine whether the equipment will use:
Manual loading and unloading, semi-automatic operation, or fully automatic production.
A semi-automatic system may only need automatic clamping, welding, and cycle control.
A fully automated system may include:
Automatic loading
Automatic positioning
Automatic clamping
Automatic welding
Automatic transfer
Automatic unloading
Product inspection
Defective product rejection
Production data recording
The higher the automation level, the more complex the equipment structure and control system may become.
Automation requirements should therefore be defined at the beginning of the project to avoid major changes later.
8. Define the Control System and Operating Method
Custom welding equipment should have a control system that matches the production process.
Common components may include PLCs, touchscreens, sensors, pneumatic components, and various motion-control devices.
During project evaluation, manufacturers should clarify:
Machine operating method
Parameter adjustment method
Product model changeover
Recipe management
Fault alarms
User access control
Production data collection
Communication with existing production lines
If one machine needs to produce multiple product models, the project should also define how products will be changed over and how the corresponding welding parameters will be selected.
9. Safety Protection Must Be Considered From the Beginning
Custom welding machines can involve electrical systems, mechanical movement, high temperatures, and automated motion.
Safety protection should therefore be considered during the equipment design stage.
The evaluation may include:
Safety guarding
Safety doors
Light curtains
Emergency stops
Restricted areas
Electrical safety
Pneumatic safety
Safety interlocks
Fault alarms
When the equipment is integrated with robots, mechanical arms, or automated production lines, the overall safety zone and interlocking logic should also be evaluated.
Safety should not be treated as an additional feature added after the machine is completed.
10. Sample Testing Is a Critical Step in Custom Welding Projects
One of the biggest risks in a custom welding project is that the proposed solution appears reasonable on paper but does not achieve the expected welding results in actual production.
For this reason, manufacturers should ideally perform sample welding tests using actual workpieces before finalizing the equipment design.
Sample testing can verify:
Weld strength
Weld appearance
Welding stability
Electrode positioning
Welding parameters
Workpiece deformation
Production cycle
Fixture positioning
For complex workpieces, test results can also be used to optimize electrode design, fixture structure, and machine configuration.
A practical approach is:
Test the actual workpiece → Verify the welding process → Finalize the equipment solution
This can be more reliable than designing equipment based only on drawings and theoretical parameters.
11. Define Equipment Acceptance Criteria in Advance
Equipment acceptance should not simply be based on whether the machine can operate.
The acceptance criteria should be established during the early stages of the project.
Typical acceptance criteria may include:
Welding quality
Product pass rate
Production cycle
Automated movement
Equipment stability
If the customer requires a specific production capacity, the target cycle time should be clearly defined in the technical specifications.
If the product has specific weld strength requirements, the corresponding testing method should also be agreed upon.
Clear acceptance standards can reduce misunderstandings during final delivery.
12. After-Sales Service and Maintenance Should Also Be Evaluated
Custom welding equipment can be more complex than standard machines, making after-sales support an important part of the project.
Manufacturers should clarify:
Warranty period
Technical response process
Remote technical support
On-site service
Spare parts availability
Electrode and fixture maintenance
Software updates
Preventive maintenance
Operator training
For factories where equipment downtime can directly affect production, the supplier's response time and technical service capabilities should be considered before purchasing.
13. Complete Evaluation Checklist for a Custom Resistance Welding Machine
Manufacturers preparing for a custom resistance welding project can use the following checklist:
This checklist can help purchasing teams communicate their requirements more clearly with welding equipment manufacturers.
Instead of simply saying:
“We need a custom spot welding machine,”
the project can be defined in terms of the workpiece, welding process, production capacity, automation requirements, and acceptance criteria.
14. Which Manufacturers Should Consider Custom Resistance Welding Equipment?
Not every manufacturer needs a custom welding machine.
If a product has a simple structure, standard welding points, and relatively low production volume, a standard spot welding machine combined with a conventional fixture may already meet the production requirements.
Custom resistance welding equipment becomes more suitable when the production process involves:
Special product structures
A large number of welding points
Difficult-to-reach welding positions
Low manual welding efficiency
Multi-station welding
Strict production cycle requirements
High requirements for welding consistency
Automatic loading and unloading
Integration with an existing production line
Whether customization is necessary should ultimately be determined by the actual workpiece and production requirements.

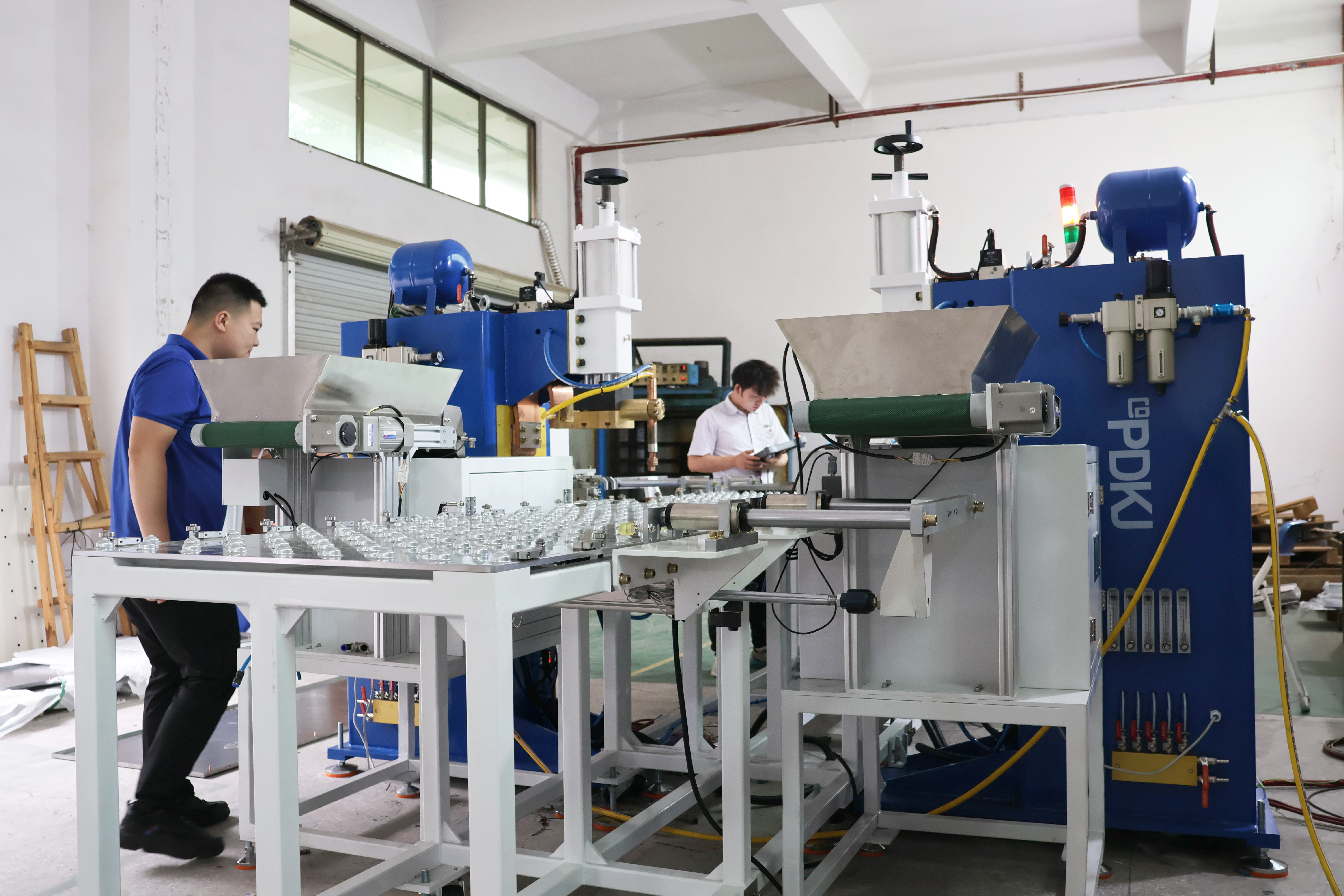

PDKJ Custom Resistance Welding Solutions
PDKJ is a professional welding machine manufacturer providing medium frequency inverter spot welders, capacitor discharge spot welders, AC resistance welding equipment, and customized resistance welding systems.
For special workpieces, complex welding point layouts, demanding production cycles, and automation requirements, PDKJ can provide support from welding process evaluation and sample testing to equipment design, manufacturing, commissioning, and acceptance.
Provide your actual workpiece for free welding process evaluation and sample testing. Verify the welding process first, then determine the equipment configuration, helping manufacturers reduce selection risks and build a resistance welding solution that fits their actual production requirements.
